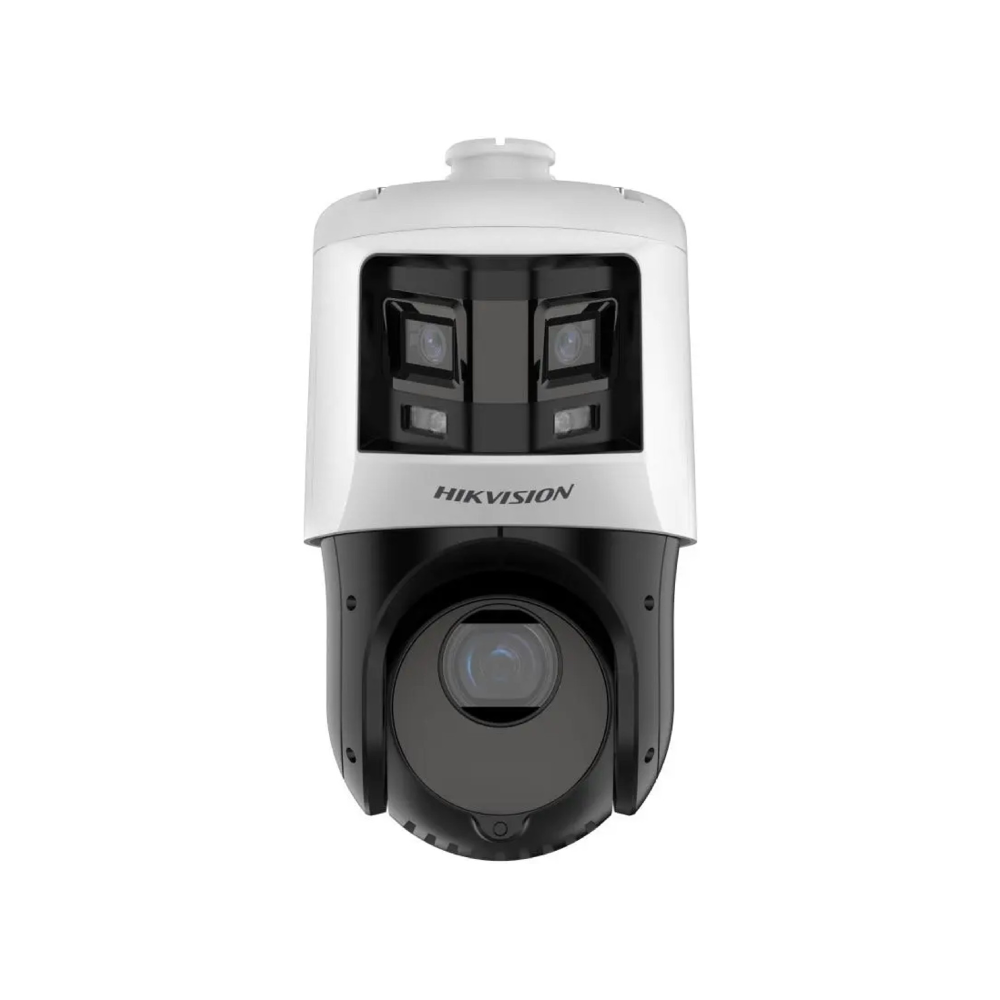

Hikvision DS-2SE4C425MWG-E/26(F0)

Camera

• Image Sensor: [Bullet channel]: 1/2.5″ Progressive Scan CMOS; [PTZ channel]: 1/2.8″ progressive scan CMOS
• Max. Resolution: [Bullet channel] 3632 × 1632, [PTZ channel] 2560 × 1440
• Min. Illumination: [Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light; [PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Speed: 1 s to 1/30,000 s
• Day & Night: ICR
• Zoom: [PTZ channel] 25 × optical, 16 × digital
• Slow Shutter: yes

Lens

• Focal Length: [Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 120 mm, 25 × optical
• FOV: [Bullet channel]: Horizontal field of view: 180±10°, Vertical field of view: 80±5°; [PTZ channel]: Horizontal field of view: 55° to 2.4° (wide-tele), Vertical field of view: 33° to 1.4° (wide-tele), Diagonal field of view: 61.5° to 2.8° (wide-tele)
• Focus: semi-auto, manual, auto
• Aperture: [Bullet channel]: F1.0; [PTZ channel]: F1.6
• Zoom Speed: [PTZ channel]: approx. 3.6 s

Illuminator

• Supplement Light Type: [PTZ channel]: IR; [Bullet channel]: White Light
• Supplement Light Range: [PTZ channel]: up to 100 m; [Bullet channel]: up to 30m
• Smart Supplement Light: Yes

PTZ

• Movement Range (Pan): 360°
• Movement Range (Tilt): -15° to 90° (auto flip)
• Pan Speed: pan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
• Tilt Speed: tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
• Proportional Pan: yes
• Presets: 300
• Preset Freezing: yes
• Patrol Scan: 8 patrols, up to 32 presets for each patrol
• Pattern Scan: 4 pattern scans
• Park Action: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
• 3D Positioning: yes
• PTZ Status Display: yes
• Scheduled Task: preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
• Power-Off Memory: yes

Video

• Main Stream:  [Bullet channel]: 50 Hz：25 fps（3632 × 1632，3680 × 1656), 60 Hz：30 fps（3632 × 1632，3680 × 1656);

  [PTZ channel]: 50 Hz：25 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720), 60 Hz：30 fps（2560 × 1440，1920 × 1080，1280 × 960，1280 × 720）

• Sub-Stream: [Bullet channel] : 50 Hz：25 fps（1200 × 536，960 × 432), 60 Hz：30 fps（1200 × 536，960 × 432); [PTZ channel]: 50 Hz：25 fps（704 × 576，640 × 480，352 × 288), 60 Hz：30 fps（704 × 480，640 × 480，352 × 240）
• Third Stream: [Bullet channel] : No; [PTZ channel] : 50 Hz：25 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 576，640 × 480，352 × 288), 60 Hz：30 fps（1920 × 1080，1280 × 960，1280 × 720，704 × 480，640 × 480，352 × 240）
• Video Compression: H.265, H.264, MJPEG
• Video Bit Rate: 32 kbps to 16384 kbps
• H.264 Type: baseline profile, main profile, high profile
• H.265 Type: main profile
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region Of Interest (ROI): 8 fixed regions for each stream

Audio

• Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC, MP3
• Audio Bit Rate: MP2L2: 16 kHz, 32 kHz, 48 kHz; AAC-LC: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz
• Audio Sampling Rate: MP2L2: 32 Kbps, 40 Kbps, 48 Kbps, 56 Kbps, 64 Kbps, 80 Kbps, 96 Kbps, 112 Kbps, 128 Kbps, 144 Kbps, 160 Kbps, 192 Kbps, AAC-LC: 16 Kbps, 32 Kbps, 64 Kbps , MP3: 8Kbps, 16Kbps, 24Kbps, 32Kbps, 40Kbps, 48Kbps, 56Kbps, 64Kbps, 80Kbps, 96Kbps, 112Kbps, 128Kbps, 160Kbps, 192Kbps, 224Kbps, 256Kbps, 320Kbps
• Environment Noise Filtering: yes

Network

• Protocols: IPv4 / IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets
• Simultaneous Live View: 20
• API: ISAPI, SDK, ISUP, ONVIF
• User/Host: 32
• Security: Authenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
• Network Storage: NAS (NFS, SMB/ CIFS), ANR
• Client: iVMS-4200, Hik-Connect
• Web Browser: IE11+, Chrome57+, Firefox52+, Safari12+, Edge79.0.309.65+


• Image Parameters Switch: Yes
• Image Settings: sharpness, saturation, brightness, contrast
• Day/Night Switch: day, night, auto, scheduled-switch
• Wide Dynamic Range (WDR): 120 dB
• SNR: ≥ 52 dB
• Defog: Digital defog
• Image Stabilization: EIS
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Mask: [Bullet channel] 8 programmable polygon privacy masks; [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
• Regional Focus: Yes
• Regional Exposure: Yes

Interface

• Ethernet Interface: RJ45, self-adaptive 10M/100M Ethernet port
• On-Board Storage: Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
• Audio: 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω
• Alarm: 1 alarm input, 1 alarm output
• Reset: yes

Event

• Basic Event: [PTZ channel] motion detection, video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception (IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot)
• Smart Event: [PTZ channel & bullet channel] audio exception detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[Bullet channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection
• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, and PTZ actions (such as preset, patrol scan, pattern scan)
• Smart Linkage: Panorama Linkage

Deep Learning Function

• Face Capture: Detects up to 5 faces simultaneously, Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture

General

• Power: 12VDC, PoE+
• Dimension: Ø 166 mm × 375 mm (Ø 6.5″ × 14.7″)
• Weight: Approx. 2.4 kg (13.2 lb.)
• Material: ADC12
• Operating Condition: -30℃ to 65℃ (-22°F to 149°F), humidity lower than 90%RH
• General Function: mirror, watermark, password protection
• Demist: Demist by heating the glass
• Power Consumption And Current: Max. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light

Approval

• Protection: IP66 Standard, 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
