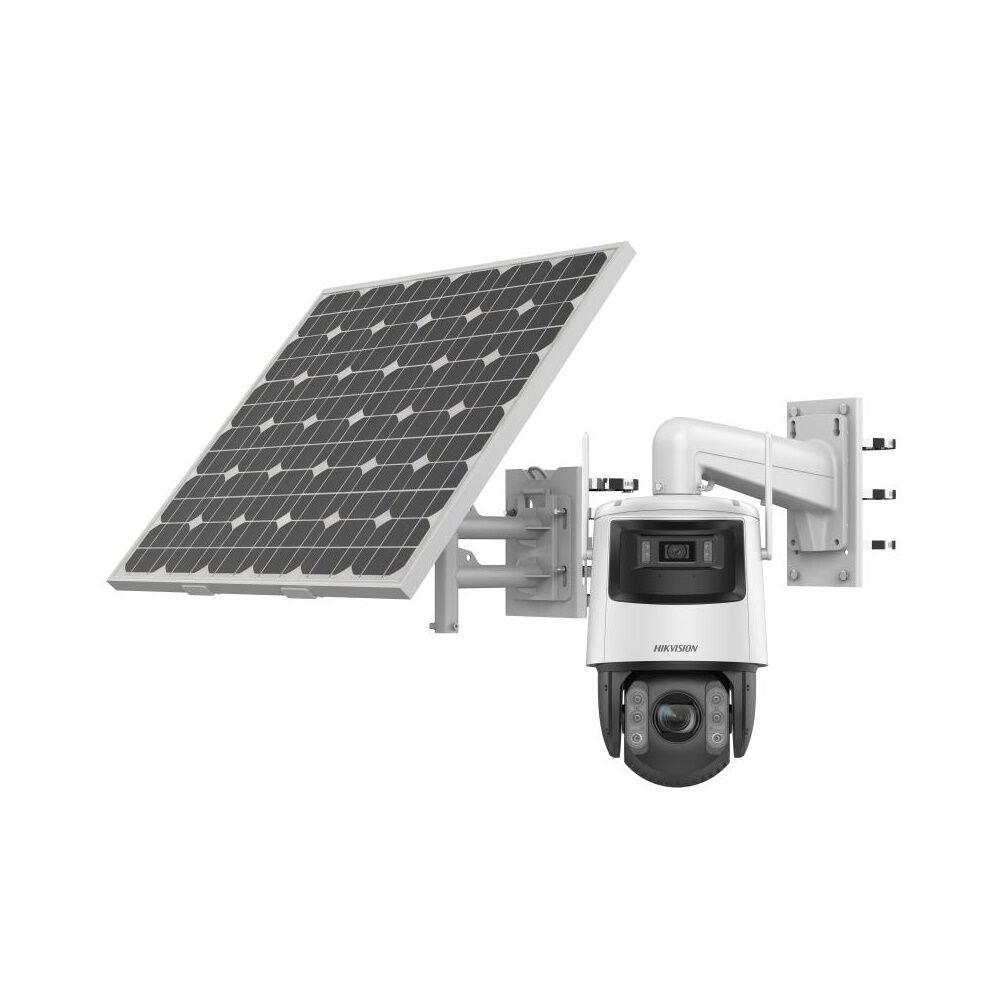

Hikvision DS-2SE7C432IWG-K/4G/14(F0)

Camera

• Image Sensor: [Bullet channel] 1/1.8″ Progressive Scan CMOS, [PTZ channel] 1/1.8″ Progressive Scan CMOS
• Max. Resolution: [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440
• Min. Illumination: [Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light; [PTZ channel]: Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR
• Shutter Speed: 1 s to 1/30,000 s
• Day & Night: ICR
• Zoom: [PTZ channel] 32 × optical, 16 × digital
• Slow Shutter: yes

Lens

• Focal Length: [Bullet channel] 2.8 mm, [PTZ channel] 5.9 to 188.8 mm mm
• FOV: [Bullet channel] horizontal field of view: 108°, vertical field of view: 56°, diagonal field of view: 134°, [PTZ channel] horizontal field of view: 60.2° to 2.3°, vertical field of view: 35.2° to 1.3°, diagonal field of view: 67.4° to 2.6°
• Focus: Auto, semi-auto, manual
• Aperture: [Bullet channel]: F1.0; [PTZ channel]: F1.5
• Zoom Speed: [PTZ channel]: approx. 5.6 s

Illuminator

• Supplement Light Type: [Bullet channel] IR, [PTZ channel] IR
• Supplement Light Range: [Bullet channel] IR: up to 30 m, [PTZ channel] IR: up to 200 m
• Smart Supplement Light: Yes

PTZ

• Movement Range (Pan): 360°
• Movement Range (Tilt): -15° to 90°
• Pan Speed: Pan speed: configurable from 0.1° to 80°/s, preset speed: 80°/s
• Tilt Speed: Tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
• Proportional Pan: Yes
• Presets: 300
• Preset Freezing: Yes
• Patrol Scan: 8 patrols, up to 32 presets for each patrol
• Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan
• Park Action: Preset, patrol scan
• 3D Positioning: Yes
• PTZ Status Display: Yes
• Scheduled Task: Preset, patrol scan, dome reboot, aux output, dome adjust
• Power-off Memory: Yes

Video

• Main Stream: [Bullet channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); [PTZ channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 24 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
• Sub-Stream: [Bullet channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240); [PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240)
• Third Stream: [Bullet channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240); [PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
• Video Compression: Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline profile, Main profile, High profile
• H.265 Type: Main profile
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 8 fixed regions for each stream

Audio

• Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Audio Bit Rate: MP2L2：32 kbps，40 kbps，48 kbps，56 kbps，64 kbps，80 kbps，96 kbps，112 kbps，128 kbps，144 kbps，160 kbps，192 kbps; AAC-LC：16 kbps，32 kbps，64 kbps； MP3：8 kbps,16 kbps，24 kbps，32 kbps，40 kbps，48 kbps，56 kbps，64 kbps，80 kbps，96 kbps，112 kbps，128 kbps，144 kbps，160 kbps，192 kbps，224 kbps，256 kbps，320 kbps
• Audio Sampling Rate: AAC-LC: 16 kHz, 32 kHz, 48 kHz,MP2L2: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, UDP, IPv4/IPv6, IGMP, DHCP, Bonjour, WebSocket, WebSockets
• Simultaneous Live View; 20
• API: ONVIF (Profile S, Profile G, Profile T), ISAPI, ISUP, SDK
• User/Host: 32
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), IP address filter
• Network Storage: NAS (NFS，SMB/ CIFS), ANR
• Client: iVMS-4200, Hik-Connect
• Web Browser: IE 10+, Chrome 57+, Firefox 52+, Safari 12+

Wireless (Mobile Communication)

• Mobile Communication Type: 4G
• Frequency:
  • LTE FDD/WCDMA: B1
  • LTE FDD/GSM: B3
  • LTE FDD/WCDMA/GSM: B5/B7
  • LTE FDD: B7/B20/B28 LTE TDD: B38/B40/B41;LTE FDD/WCDMA: B1/B4
  • LTE FDD/WCDMA/GSM: B2/B3/B5/B8
  • LTE FDD: B12/B17/B28/B66
  • LTE TDD: B38/B40;LTE FDD/WCDMA: B1/B8
  • LTE FDD: B3/B11/B18/B19/B21/B26/B28
  • LTE TDD: B41
• Standard: LTE FDD/WCDMA, LTE FDD/GSM, LTE FDD/WCDMA/GSM, LTE FDD, LTE TDD;LTE FDD/WCDMA, LTE FDD/WCDMA/GSM, LTE FDD, LTE TDD;LTE FDD/WCDMA, LTE FDD, LTE TDD


• Image Parameters Switch: Yes
• Image Settings: Saturation, brightness, contrast, sharpness
• Day/Night Switch: day, night, auto, scheduled-switch
• Wide Dynamic Range (WDR): 120 dB WDR
• SNR: ＞52dB
• Defog: yes
• Image Stabilization: EIS (Built-in gyroscope to improve EIS performance)
• Image Enhancement: BLC, HLC, 3D DNR
• Regional Focus: yes
• Regional Exposure: yes

Interface

• Ethernet Interface: RJ45, self-adaptive 10M/100M Ethernet port
• On-board Storage: Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
• Audio: 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
• Alarm: 2 input(s), 1 output(s)
• Reset: yes
• Power Output: 12 VDC, max. 1000 mA

Event

• Basic Event: [PTZ channel] motion detection, video tampering alarm; [PTZ channel & bullet channel] alarm input and output, exception
• Smart Event: [PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection
• Linkage; [Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording; [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
• Smart Tracking: [PTZ channel] yes
• Smart Linkage: Manual tracking, auto tracking, tracking takeover, track in turn

Deep Learning Function

• Face Capture: [Bullet channel] no; [PTZ channel] yes

General

• Power: 12 VDC ± 25%, max. 28 W, Typical power scenarios: 8.7 W (4G working); Standby scenarios: 7.7W (4G working); Sleep mode: 100 mW
• Dimension: Ø 220 mm × 382.1 mm (Ø 8.66″ × 15.04″)
• Weight: Approx. 6 kg (13.23 lb.)
• Material: ADC12
• Operating Condition: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing)
• General Function: mirror, password protection, watermark, IP address filter
• Demist: Demist by heating the glass

Battery

• Battery Type: Lithium
• Battery Voltage: 9 to 12.6 V
• Capacity: 360 WH (90 WH for each battery)
• Max. Charging Voltage: 12.6 V
• Operating Temperature: Charging: -20 °C to 45 °C (-4 °F to 113 °F) Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
• Cycle Lifetime: Performance mode: 1.5 days. Proactive mode: 2 days. Standby mode: 80 days *in cloudy/rainy days (25 °C)
• Battery Life: More than 500 cycles
• Battery Weight: Approx. 2.74 kg (6.0 lb.) (0.685 kg (1.5 lb.) for each battery)

Approval

• Protection: IP67 (IEC 60529-2013), IK10 (IEC 62262:2002), TVS 6000 V lightning protection, surge protection and voltage transient protection
