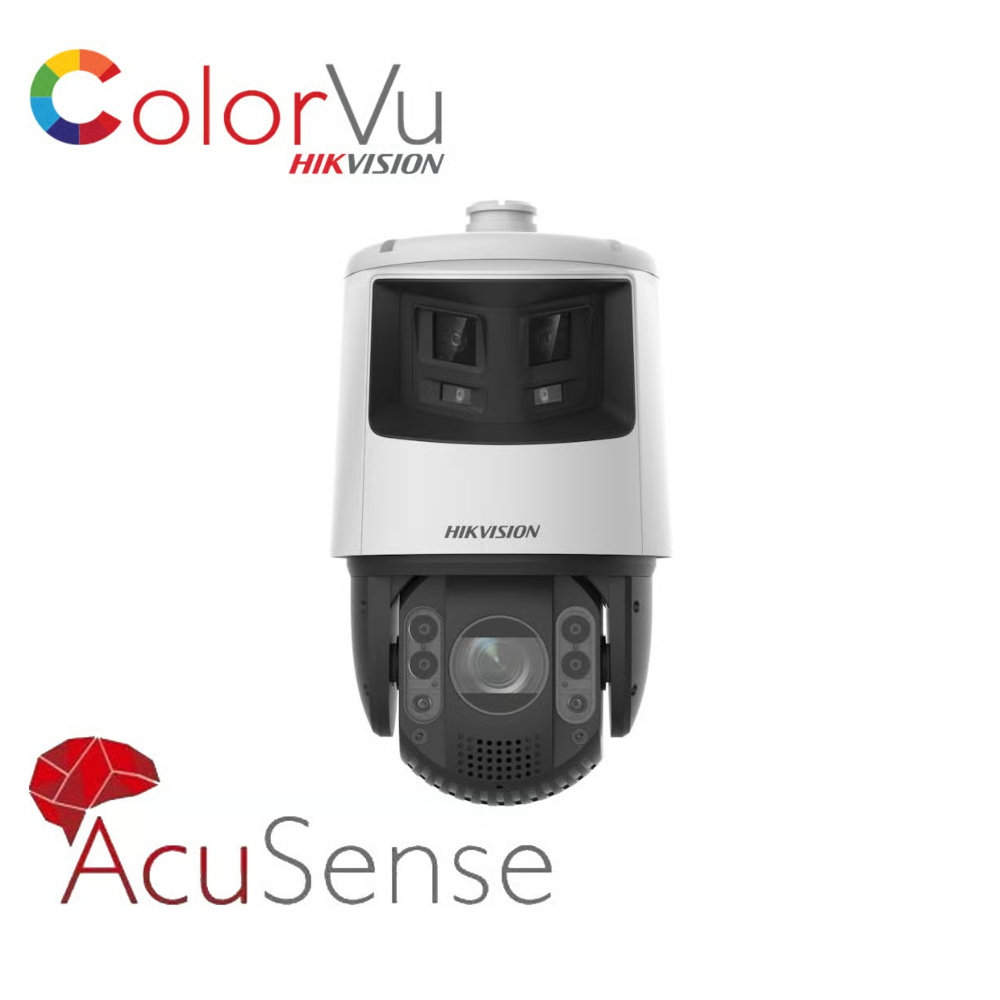

Hikvision DS-2SE7C432MWG-EB/26(F0)
Hikvision DS-2SE7C432MWG-EB/26(F0) TandemVu H265 PoE IP Dual-Channel (6MP 180° Panoramic Channel + 4MP 32x Optical Zoom PTZ Channel) Dual-Light (30m White-Light + 200m IR Light) Weatherproof Smart-Linkage Tracking PTZ (Pan Tilt Zoom) Camera – ColorVu + AcuSense Technology
SKU: DS-2SE7C432MWG-EB/26(F0)
Categories: CCTV / Surveillance, IP Cameras, IP PTZ Cameras, IP Surveillance
Tags: 120dB True-WDR, 180 Degree, 32x Optical Zoom Lens, 4MP, 6MP, AcuSense, AI, Alarm, Artificial Intelligence, Auto-tracking, Camera, ColorVu, Deep Learning, Dual-Channel, Dual-Lens Camera, Dual-Sensor Camera, Fixed Lens, H265, Hikvision, Human Detection, IP Camera, IR, Network Camera, Panoramic, PoE, PTZ Camera, Smart Dual Light, Smart Linkage Tracking, TandemVu, Vehicle Detection, Weatherproof, White Light LED
Hikvision DS-2SE7C432MWG-EB/26(F0) TandemVu H265 PoE IP Dual-Channel (6MP 180° Panoramic Channel + 4MP 32x Optical Zoom PTZ Channel) Dual-Light (30m White-Light + 200m IR Light) Weatherproof Smart-Linkage Tracking PTZ (Pan Tilt Zoom) Camera – ColorVu + AcuSense Technology
Key Features :-
- Panoramic channel supports image stitching, with 180° horizontal field of view
- High quality imaging with 6MP resolution in panoramic and channel and 4MP resolution in PTZ channel
- Secures an expansive area with 32 × optical zoom and 16 × digital zoom
- AcuSense technology focuses on human and vehicle targets classification and supports face capture to detect, capture and select faces in motion
- Expansive night view with up to 200m IR distance in PTZ channel and 30m white light in panoramic channel
- Active strobe light and audio alarm to warn intruders off
- Smart-linkage between panoramic channel and PTZ channel
- Note:- This cameras takes up 2 * channels on the NVR/ recording platform
Camera
- Image Sensor: [Panoramic channel] 1/2.5″ Progressive Scan CMOS, [PTZ channel] 1/2.8″ Progressive Scan CMOS
- Max. Resolution: [Panoramic channel] 3632 × 1632, [PTZ channel] 2560 × 1440
- Min. Illumination: [PTZ channel] Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 lux with IR,[Panoramic channel] Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
- Shutter Speed: 1 s to 1/30,000 s
- Day & Night: ICR
- Zoom: [PTZ channel] 32 × optical, 16 × digital
- Slow Shutter: yes
- HLC: yes
- 3D DNR: yes
Lens
- Focal Length: [Panoramic channel] 2.8 mm, [PTZ channel] 5.9 to 188.8 mm
- FOV: [Panoramic channel] horizontal field of view: 180°±10°, vertical field of view: 80°±5°; [PTZ channel] horizontal field of view: 60.2° to 2.3°, vertical field of view: 35.2° to 1.3°
- Focus: semi-auto, manual, auto
- Aperture: [Bullet channel]: F1.0; [PTZ channel]: F1.5
- Zoom Speed: [PTZ channel]: approx. 5.6 s
Illuminator
- Supplement Light Type: [PTZ channel]: IR; [Panoramic channel]: White Light
- Supplement Light Range: [PTZ channel]: up to 200 m; [Bullet channel]: up to 30m
- Smart Supplement Light: Yes
PTZ
- Movement Range (Pan): 360°
- Movement Range (Tilt): -15° to 90° (auto flip)
- Pan Speed: pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s
- Tilt Speed: tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s
- Proportional Pan: yes
- Presets: 300
- Preset Freezing: yes
- Patrol Scan: 8 patrols, up to 32 presets for each patrol
- Pattern Scan: 4 pattern scans, record time over 10 minutes for each scan
- Park Action: preset||pattern scan||patrol scan||auto scan||tilt scan||random scan||frame scan||panorama scan
- 3D Positioning: yes
- PTZ Status Display: yes
- Scheduled Task: preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output
- Power-Off Memory: yes
Video
- Main Stream: [PTZ channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); [Panoramic channel] 50 Hz: 25 fps (3632 × 1632, 3680 × 1656), 60 Hz: 30 fps (3632 × 1632, 3680 × 1656)
- Sub-Stream: [Bullet channel] : [PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240); [Panoramic channel] 50 Hz: 25 fps (1200 × 536, 960 × 432), 60 Hz: 30 fps (1200 × 536, 960 × 432)
- Third Stream: [PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240); [Panoramic channel] No
- Video Compression: Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264/MJPEG
- Video Bit Rate: 32 kbps to 16384 kbps
- H.264 Type: baseline profile, main profile, high profile
- H.265 Type: main profile
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region Of Interest (ROI): 8 fixed regions for each stream
Audio
- Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC, MP3
- Audio Bit Rate: MP2L2: 16 kHz, 32 kHz, 48 kHz; AAC-LC: 16 kHz, 32 kHz, 48 kHz; PCM: 8 kHz, 16 kHz, 32 kHz, 48 kHz; MP3: 8 kHz, 16 kHz, 32 kHz, 48 kHz
- Audio Sampling Rate: MP2L2: 32 Kbps, 40 Kbps, 48 Kbps, 56 Kbps, 64 Kbps, 80 Kbps, 96 Kbps, 112 Kbps, 128 Kbps, 144 Kbps, 160 Kbps, 192 Kbps, AAC-LC: 16 Kbps, 32 Kbps, 64 Kbps , MP3: 8Kbps, 16Kbps, 24Kbps, 32Kbps, 40Kbps, 48Kbps, 56Kbps, 64Kbps, 80Kbps, 96Kbps, 112Kbps, 128Kbps, 160Kbps, 192Kbps, 224Kbps, 256Kbps, 320Kbps
- Environment Noise Filtering: yes
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, WebSocket, WebSockets, SRTP
- Simultaneous Live View: 20
- API: ISUP, SDK, ISAPI, Open Network Video Interface (Profile S, Profile G, Profile T)
- User/Host: 32
- Security: Password protection, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), host authentication (MAC address), IP address filter
- Network Storage: NAS (NFS, SMB/ CIFS), ANR
- Client: iVMS-4200, HikCentral Pro, Hik-Connect
- Web Browser: IE11+, Chrome57+, Firefox52+, Safari12+, Edge79.0.309.65+
- Image Parameters Switch: Yes
- Image Settings: sharpness, saturation, brightness, contrast
- Day/Night Switch: day, night, auto, scheduled-switch
- Wide Dynamic Range (WDR): [Panoramic channel] Digital WDR, [PTZ channel] 120 dB
- SNR: ≥ 52 dB
- Defog: Digital defog
- Image Stabilization: EIS
- Image Enhancement: BLC, HLC, 3D DNR
- Privacy Mask: 24 programmable polygon privacy masks; mask color or mosaic configurable
- Regional Focus: Yes
- Regional Exposure: Yes
Interface
- Ethernet Interface: RJ45, self-adaptive 10M/100M Ethernet port
- On-Board Storage: Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
- Audio: 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω
- Alarm: 2 alarm inputs, 1 alarm output
- Reset: yes
Event
- Basic Event: Motion detection, video tampering alarm, alarm input and output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error, abnormal restart)
- Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection
- Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, and PTZ actions (such as preset, patrol scan, pattern scan)
- Smart Tracking: Manual tracking, auto-tracking
- Smart Linkage: Panorama Linkage, tracking takeover, track in turn
Deep Learning Function
- Face Capture: Detects up to 5 faces simultaneously, Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture
- Regional People Counting: yes
General
- Power: 24 VAC, Max. 60 W, Hi-PoE
- Dimension: Ø222.3 mm × 387.2 mm (Ø8.75″ × 15.2″)
- Weight: Approx. 6kg
- Material: ADC12, Plastic, PC+10%GF
- Operating Condition: -30℃ to 65℃ (-22°F to 149°F), humidity lower than 90%RH
- General Function: mirror, watermark, password protection
- Demist: Demist by heating the glass
Approval
- Protection: IP66 (IEC 60529-2013)
