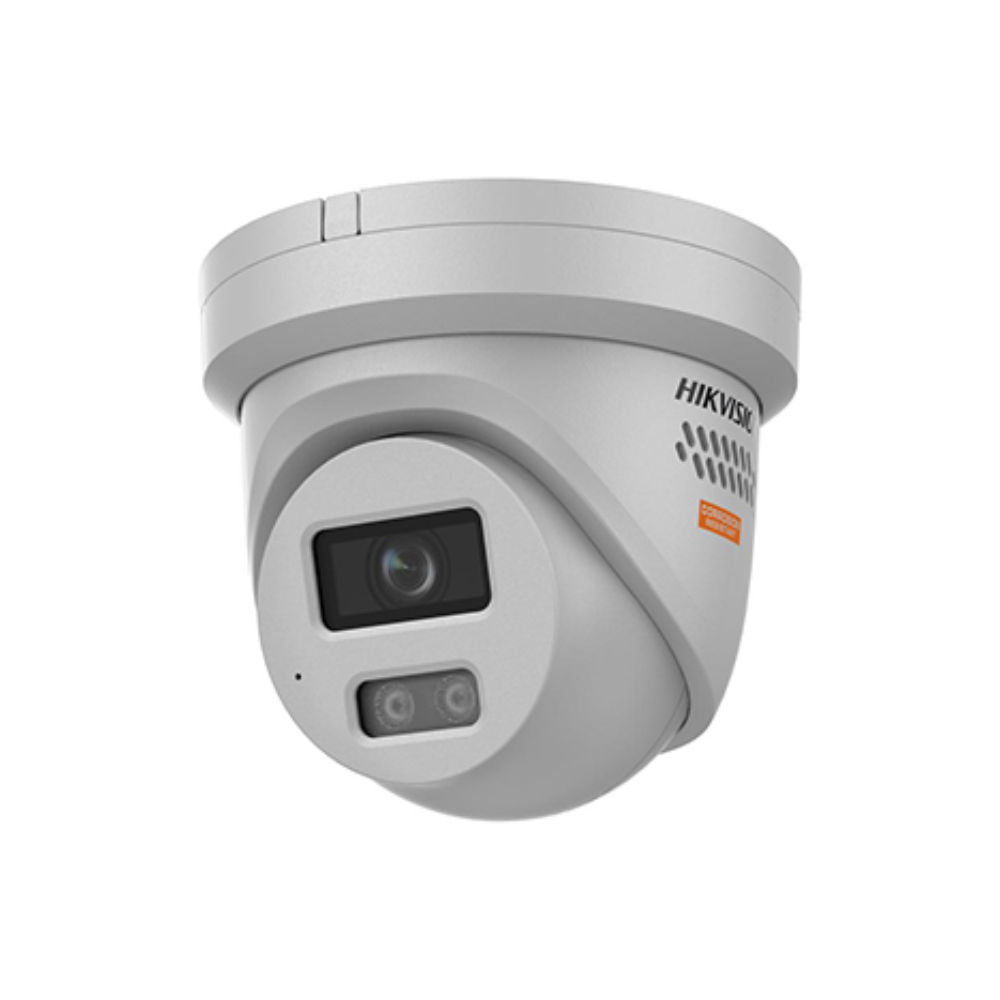

Hikvision DS-2XC3386G0H-LISU/SL

Camera

• Image Sensor: 1/1.8″ Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination: Color: 0.002 Lux @ (F1.2, AGC ON),0 Lux with light, B/W: 0.0002 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter

Lens

• Lens Type: Fixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV: 2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3°; 4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2°
• Lens Mount: M16
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field: 2.8 mm: 3.3 m to ∞; 4 mm: 3.8 m to ∞

DORI

• DORI: 2.8 mm, D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m; 4 mm, D: 100 m, O: 39.7 m, R: 20 m, I: 10 m

Illuminator

• Supplement Light Type: IR, White Light
• Supplement Light Range: Up to 30 m
• IR Wavelength: 850 nm

HEOP

• Open Resources: Memory: 60 MB; Smart RAM: 371 MB; eMMC: 2 GB
• Computing Power: 1.5 TOPS
• Open Capability: HEOP 2.0 OpendevSDK, Basic service, basic media capability, deep learning reasoning acceleration capability
• Deep Learning Structure: Caffe, PyTorch, TensorFlow, PaddlePaddle, ONNX
• Programming Language: C, C++,Go

AI Open Platform

• Model Specification: Supports 4 model packages, and each model package supports detecting 16 target types and classifying 4 targets. The targets can be classified as 64 types. The device runs only 1 model at the same time.

• Built-in Hard Hat Detection

Video

• Main Stream: 50 Hz: 20 fps (3840 × 2160, 3072 ×1728, 2560 ×1440, 1920 × 1080, 1280 × 720); 60 Hz: 24 fps (3840 × 2160, 3072 ×1728, 2560 ×1440, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 20 fps (704 × 576, 640 × 480); 60 Hz: 24 fps (704 × 480, 640 × 480)
• Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480); 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
• Fourth Stream: 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
• Video Compression: Main stream: H.264/H.264+/H.265/H.265+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264,

  Fourth stream: H.265/H.264/MJPEG

• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR, VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region of Interest (ROI): 5 fixed regions for main stream
• Target Cropping: Yes

Audio

• Audio Type: Mono sound
• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/48 kHz
• Environment Noise Filtering: Yes

Network

• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets, RTCP
• Simultaneous Live View: Up to 20 channels
• API: ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
• User/Host: Up to 32 users – 3 user levels: administrator, operator, and user
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, TLS1.2, TPM 2.0(FIPS 140-2 level 2)
• Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Web Browser: Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+;

  Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


• Image Parameters Switch: Yes
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Day/Night Switch: Day, Night, Auto, Schedule, Alarm Trigger
• Wide Dynamic Range (WDR): 120 dB
• SNR: ≥ 52 dB
• Image Enhancement: BLC, HLC, 3D DNR, Distortion Correction
• Privacy Mask: 8 programmable polygon privacy masks

Interface

• Ethernet Interface: 1* RJ45 10 M/100 M self-adaptive Ethernet port
• Built-in Microphone: Yes,1 built-in microphone
• Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
• 1 built-in speaker
• Alarm: 1 input, 1 output (max. 24 VDC, 1 A)
• RS-485No

Event

• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), alarm input and output
• Smart Event: Unattended baggage detection, object removal detection, scene change detection, audio exception detection, defocus detection
• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing

Deep Learning Function

• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle)
• Face Capture: Detects up to 10 faces simultaneously; Supports swing left and right from -60° to -60°, tilt up and down from -30° to -30°; Uploads face with background and closed-up face pictures
• People Counting: Yes
• Queue Management:
  • • Supports up to 8 detection regions, and independent arming schedule and linkage method
    • Supports 2 detection modes: regional people queuing-up, waiting time detection
    • Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue
    • Supports raw data export for further analysis
    • Supports real-time data uploading and scheduled data uploading
    • Regional people queuing-up: supports 4 alarm trigger conditions, including greater than threshold, less than threshold, equal to threshold, not equal to threshold

    • Waiting time detection: supports 1 alarm trigger condition, including greater than threshold

• Heat Map:
  • • A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.

    • Two report types are available, space heat map and time heat map line chart.

• Regional People Counting:
  • • Supports up to 8 detection regions, and independent arming schedule and linkage method
    • Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection
    • Supports parameter settings: alarm times per exception, alarm interval, first alarm delay
    • Supports searching real-time number of people
    • People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading
    • Number of people exception detection: supports 6 alarm trigger conditions, including greater than threshold A, less than threshold A, equal to threshold A, not equal to threshold A, greater than threshold A and less than threshold B, less than threshold A or greater than threshold B (threshold A should be less than threshold B)
    • Waiting time exception detection: supports 3 alarm trigger conditions, including greater than threshold A, less than threshold A, greater than threshold A and less than threshold B (threshold A should be less than threshold B)
• On/Off Duty Detection:
  • • Supports up to 8 detection regions, and independent arming schedule and linkage method
    • Supports 2 detection modes: absence detection, on/off duty detection
    • Supports parameter settings: person on duty, absence duration

General

• Power: 12 VDC ± 25%, 0.75 A, max. 9 W, two-core terminal block, reverse polarity protection; PoE: IEEE 802.3af, Class 3, max. 9.5 W
• Material: Polymer
• Dimension: 138.63 mm × 138.63 mm × 132.74 mm (5.46″ × 5.46″ × 5.23″)
• Package Dimension: 452 mm × 235 mm × 272 mm (17.8″ × 9.3″ × 10.7″)
• Approx. 670 g (1.48 lb.)
• With Package Weight: Approx. 1151 g (2.54 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
• Cable Length: 0.3 m (11.8 ft.)
• Flashing Light: White Light

Approval

• EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021; RCM: AS/NZS CISPR 32: 2015
• Safety: CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
• Environment: CE-RoHS: 2011/65/EU
• Protection: IP68: IEC 60529-2013
• Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018), C5
