Hikvision DS-2XC6445G0

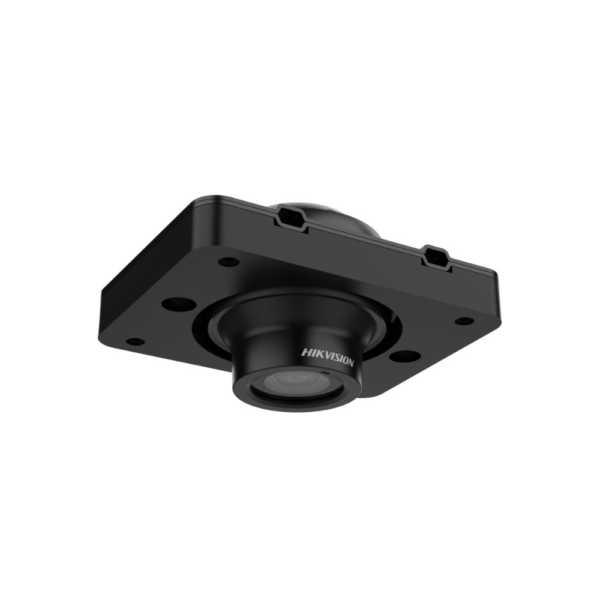

Hikvision DS-2XC6445G0 H265 4MP PoE IP 120dB True-WDR Gantry Crane Fixed Anti-Corrosion Network Camera – Fixed Lens – 2.8mm / 4mm – High Shock Resistance – IP68 Rated – Human & Vehicle Detection – NEMA-4X Coating
SKU: DS-2XC6445G0
Categories: CCTV / Surveillance, Mobile Surveillance
Tags: Anti corrosion, Camera, Crane, Fixed Lens, Gantry, Hikvision, Human Detection, IP, IP68 Rated, NEMA-4X, Network, PoE, Vehicle Detection
Hikvision DS-2XC6445G0 H265 4MP PoE IP 120dB True-WDR Gantry Crane Fixed Anti-Corrosion Network Camera – Fixed Lens – 2.8mm / 4mm – High Shock Resistance – IP68 Rated – Human & Vehicle Detection – NEMA-4X Coating
Features :-
- High quality imaging with 4MP resolution
- High shock resistance with up to 50,000 times of 50 g vibration shock
- Low latency with a minimum delay time of 80 ms
- Water and dust resistant (IP68)
- Supports 12 VDC power input and Power over Ethernet (PoE) technology
Camera
- Image Sensor: 1/2.8″ Progressive Scan CMOS
- Max. Resolution: 2560 × 1440
- Min. Illumination: Color: 0.005 Lux @ (F1.2, AGC ON)
- Angle Adjustment: Pan: -20° to 20°,tilt: -20° to 20°,rotate: 0° to 360°
Lens
- Lens Type: Fixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV
- 2.8 mm, horizontal FOV 104.9°, vertical FOV 58.2°, diagonal FOV 123.0°
-
4 mm, horizontal FOV 79.6°, vertical FOV 43.7°, diagonal FOV 93.8°
- Iris Type: Fixed
- Depth of Field
- 2.8 mm: 0.53 to 9.97 m
- 4 mm: 0.74 to 3.1 m
Video
- Main Stream: 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) – *High frame rate is supported under certain settings.
- Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480); 60 Hz: 30 fps (704 × 480, 640 × 480)
- Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480); 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
- Video Compression: Main stream: H.265/H.264 /H.265+/H.264+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264
- Video Bit Rate: 32 Kbps to 8 Mbps
- H.264 Type: Baseline Profile, Main Profile, High Profile
- H.265 Type: Main Profile
- Bit Rate Control: CBR,VBR
- Scalable Video Coding (SVC): H.264 and H.265 encoding
- Region of Interest (ROI): 1 fixed region for main stream and sub-stream
- Target Cropping: Yes
Network
- Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
- API: Open Network Video Interface (Profile S, Profile G),ISAPI,SDK,ISUP
- User/Host: Up to 32 users – 3 user levels: administrator, operator, and user
- Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
- Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
- Client: iVMS-4200,Hik-Connect,Hik-Central
- Web Browser: Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image Parameters Switch: Yes
- Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser
- Day/Night Switch: Day,Night, Auto, Schedule
- Wide Dynamic Range (WDR): 120 dB
- SNR: ≥ 50 dB
- Image Enhancement: BLC, HLC, 3D DNR, Defog
Interface
- Ethernet Interface: 1* RJ45 10 M/100 M self-adaptive Ethernet port
Event
- Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD erro
- Smart Event: scene change detection,defocus detection, unattended baggage detection,object removal detection
- Linkage: Upload to FTP/NAS,notify surveillance center,send email,trigger recording,trigger capture
Deep Learning Function
- Perimeter Protection: Line crossing, intrusion, region entrance, region exiting – Support alarm triggering by specified target types (human and vehicle)
General
- Power: 12 VDC ± 20%, 0.4 A, max. 5 W; PoE: IEEE 802.3af, Class 3, max. 5 W
- Material: Metal
- Dimension: 130 mm × 100 mm × 74.8 mm (5.12″ × 3.94″ × 2.94″)
- Package Dimension: 245 mm × 195 mm × 205 mm (9.65″ × 7.68″ × 8.07″)
- Weight: Approx. 0.755 kg (1.66 lb.)
- With Package Weight: Approx. 2.134 kg (4.7 lb.)
- Storage Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Heater: Yes
Approval
- EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
- Safety: CE-LVD: EN 62368-1: 2014/A11: 2017; CB: IEC 62368-1: 2014+A11
- Protection: IP68: IEC 60529-2013
- Anti-Corrosion Protection: NEMA 4X (NEMA 250-2018), C5
