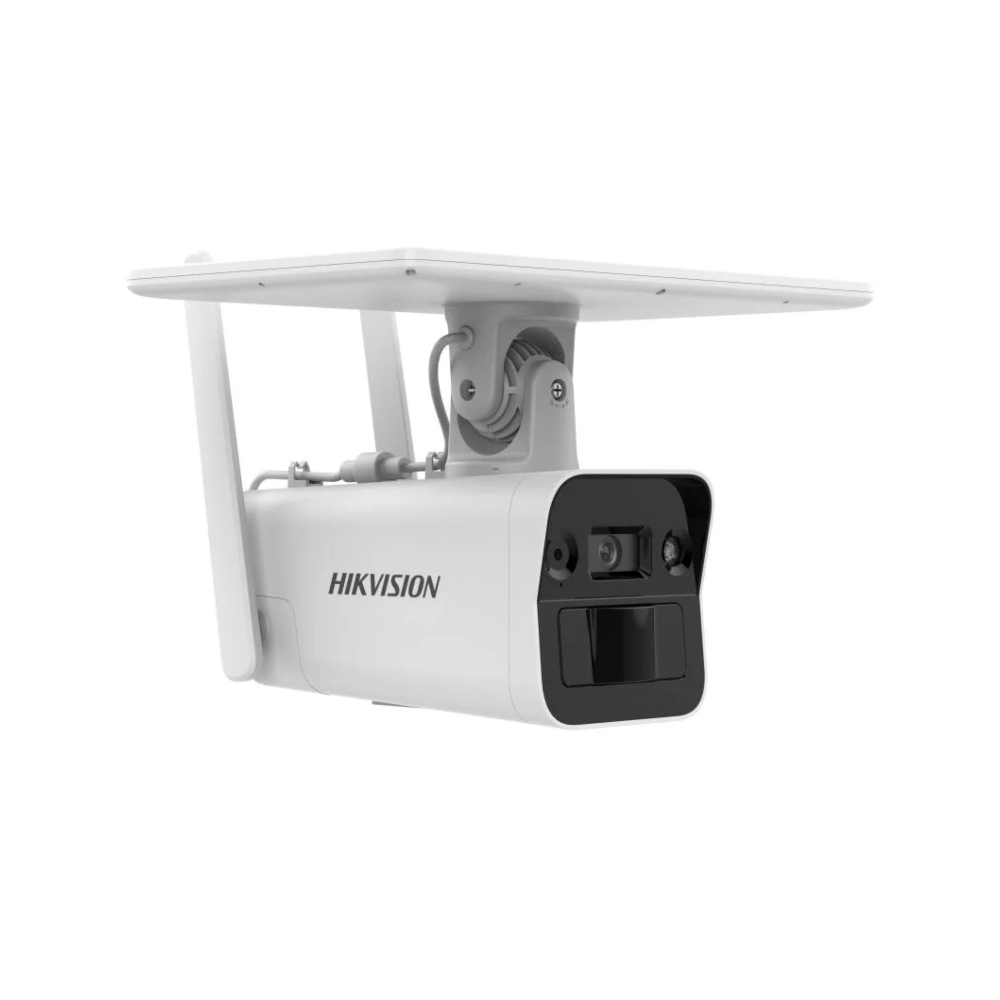

Hikvision DS-2XS2T41G1-ID/4G

Camera

• Image Sensor: 1/3″ Progressive Scan CMOS
• Max. Resolution: 2560 × 1440
• Min. Illumination: B/W: 0.01 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle Adjustment: Solar panel: tilt: -45° to 45°, rotate:-30° to 30°

Lens

• Lens Type: Fixed focal lens, 4mm
• Iris Type: Fixed
• Aperture: 4mm: F1.28
• Depth Of Field: 4 mm: 2.7 m to ∞
• Focal Length & FOV: 4 mm, Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93°
• Lens Mount: M12

DORI

• DORI: 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: Performance mode: up to 30 m, proactive mode: up to 10 m
• IR Wavelength: 850 nm
• Smart Supplement Light: Yes

Video

• Main Stream: 50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720);60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)
• Video Compression: Main stream: H.265 / H.264; Sub-stream: H.265 / H.264 / MJPEG; H.264+ and H.265+: main stream supports under performance mode
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR, VBR
• Region Of Interest (ROI): 1 fixed region for main stream
• Scalable Video Coding (SVC): H.264 and H.265 encoding

Audio

• Audio Sampling Rate: 8 kHz/16 kHz
• Environment Noise Filtering: Yes
• Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Network

• Security: Password protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
• Simultaneous Live View: Up to 6 channels
• API: ISAPI, SDK
• Protocols: TCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
• User/Host: Up to 32 users – 3 user levels: administrator, operator, and user
• Network Storage: Auto Network Replenishment (ANR)
• Client: iVMS-4200,Hik-Connect,Hik-Central
• Web Browser: Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+; Local service: Chrome 57.0+, Firefox 52.0+

Mobile Communication

• SIM Card Type: Micro SIM
• Uplink And Downlink Data Rate: Cat 4, uplink: 50 Mbps, downlink: 150 Mbps
• Frequency:
  • EU:
    • LTE-TDD: B38/B40/B41
    • LTE-FDD: B1/B3/B5/B7/B8/B20/B28
    • CDMA: B1/B5/B8
    • GSM: B3/B5/B8

• • LA:
    • LTE-TDD: B38/B40
    • LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B28/B66
    • WCDMA:B1/B2/B3/B4/B5/B8
    • GSM: B2/B3/B5/B8

• Standard: LTE-TDD, LTE-FDD, WCDMA, GSM


• SNR: ≥ 52 dB
• Wide Dynamic Range (WDR): Digital WDR
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• Image Settings: Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Transducer

• Transducer Type: PIR + Radar
• Detection Angle:  4mm : Horizontal: 80°, vertical: 42°
• Detection Range: Up to 12 m

Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in eMMC storage, up to 8 GB; Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB,For eMMC storage, 5 GB is available for recording.
• Built-In Microphone: Yes
• Built-In Speaker: Yes
• Reset Key: Yes

Event

• Basic Event: Motion detection,video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
• Linkage: Upload to NAS/memory card, notify surveillance center, trigger recording, trigger capture, audible warning

General

• Power:
  • Power Consumption and Current:
    • Typical power scenarios: 1.85 W (4G working)

    • Standby scenarios: 80 mW

• Max. power consumption: 7 W
• Power Supply: 12 VDC
• *For debugging only: 6.5 W (deviation: ± 1 W) Solar panels
• Power Interface: Power supply interface: Ø5.5 mm coaxial power plug; Extened solar panel: Ø5.5 mm coaxial power plug
• Material: Plastic
• Storage Conditions: 0 °C to 50 °C (32 °F to 122 °F). Humidity 95% or less (non-condensing)
• Language; 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Heartbeat, mirror, flash log
• Startup And Operating Conditions: 0 °C to 50 °C (32 °F to 122 °F). Humidity 95% or less (non-condensing)
• Dimension: 213.7 mm × 292.4 mm × 188.7 mm (8.4″ × 11.5″ × 7.3″)
• Package Dimension: 345 mm × 240 mm × 292 mm (13.6″ × 9.4″ × 11.5″)
• Weight: Approx. 1.42 kg (3.1 lb.)
• With Package Weight: Approx. 2.07 kg (4.6 lb.)

Battery

• Battery Type: Ternary Lithium
• Capacity: 51.46 Wh
• Max. Charging Voltage: 12.6 V
• Operating Temperature: Charging: 0 °C to 45 °C (32 °F to 113 °F); Discharging: -20 °C to 50 °C (-4 °F to 122 °F)
• Battery Voltage: 8.1 V to 12.6 V
• Battery Life: More than 800 cycles
• Cycle Lifetime:
  • Proactive mode: 1.5 days
  • Standby mode: 11 days
• Battery Weigh: tApprox. 185 g (0.4 lb.)

Approval

• EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014; RCM: AS/NZS CISPR 32: 2015; *CE and RCM certifications are only for the device sold in the European region.
• RF: CE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G); *CE certification is only for the device sold in the European region.
• Safety: CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; LOA: IEC/EN 60950-1; *CE and LOA certifications are only for the device sold in the European region.
• Environment: CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006; *CE certification is only for the device sold in the European region.
• Protection: IP67: IEC 60529-2013
