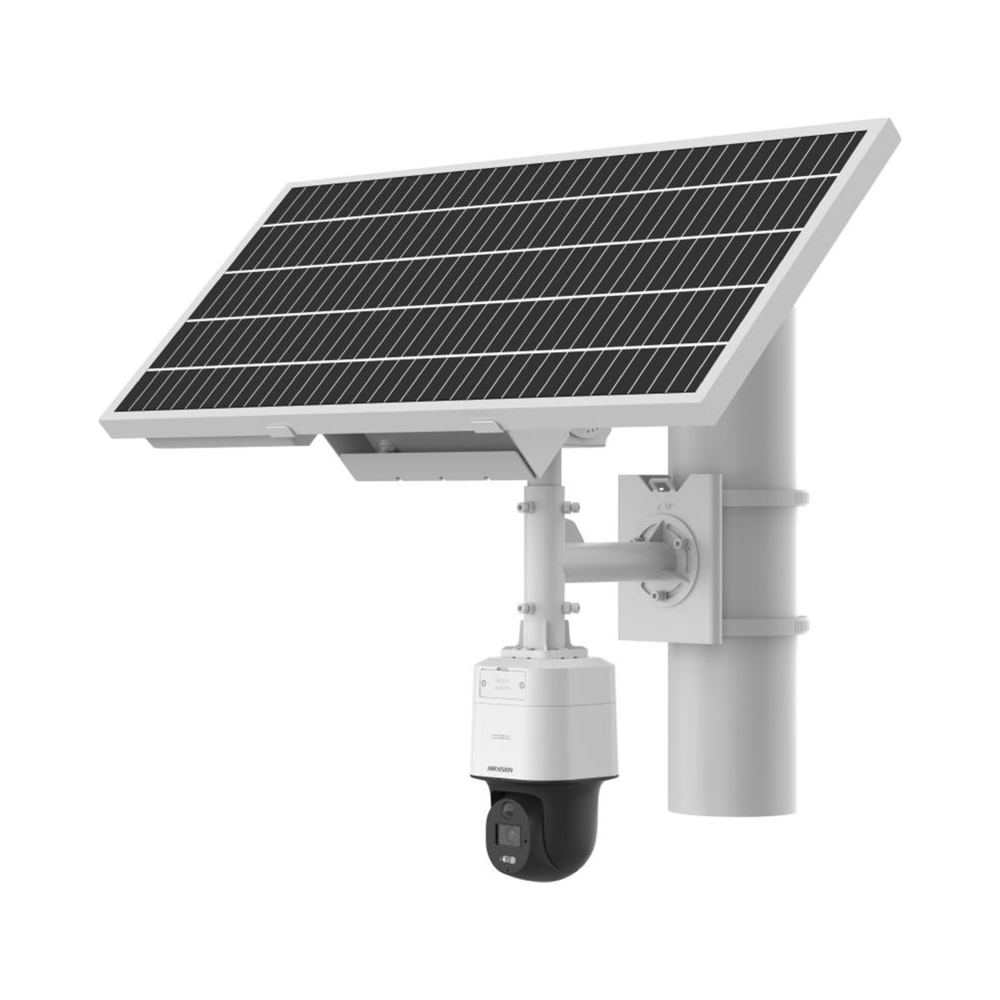

Hikvision DS-2XS3Q47G1-LDH/4G

Camera

• Image Sensor: 1/3″ Progressive Scan CMOS
• Max. Resolution: 2688 × 1520
• Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: 24/7 color imaging
• Angle Adjustment: Solar panel: pan: 0° to 358°, tilt: -40° to 0°; camera: pan: 0° to 340°, tilt: -5° to 105°

Lens

• Lens Type: Fixed focal lens, 4 and 6 mm optional
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field: 4 mm: 2.7 m to ∞
• Focal Length & FOV: 4 mm, Horizontal FOV: 75°, Vertical FOV: 40°, Diagonal FOV: 89°
• Lens Mount: M12

DORI

• DORI: 4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m

Illuminator

• Supplement Light Type: White Light
• Supplement Light Range: Performance mode: up to 30 m, proactive mode: up to 10m
• Smart Supplement Light: Yes

Video

• Main Stream: 50 Hz: 12.5 fps (2688 × 1520, 1920 × 1080, 1280 × 720); 60 Hz: 15 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)
• Video Compression: Main stream: H.265 / H.264; Sub-stream: H.265 / H.264 / MJPEG* main stream supports H.264+ and H.265+ under performance mode
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR, VBR
• Region of Interest (ROI): 1 fixed region for main stream
• Scalable Video Coding (SVC): H.264 and H.265 encoding

Audio

• Audio Sampling Rate: 8 kHz/16 kHz
• Environment Noise Filtering: Yes
• Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)

Network

• Security: Password protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
• Protocols: TCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
• User/Host: Up to 32 users – 3 user levels: administrator, operator, and user
• Network Storage: Auto Network Replenishment (ANR)
• Client: iVMS-4200,Hik-Connect,Hik-Central
• Web Browser: Plug-in required live view: IE 10, IE11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Mobile Communication

• SIM Card Type: Micro SIM
• Uplink and Downlink Data Rate: CAT4, uplink: 50 Mbps, downlink: 150 Mbps
• Frequency
  • EU:
    • LTE-TDD: B38/B40/B41
    • LTE-FDD: B1/B3/B5/B7/B8/B20/B28
    • WCDMA: B1/B5/B8
    • GSM: B3/B5/B8

• • LA:
    • LTE-TDD: B38/B40
    • LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B28/B66
    • WCDMA:B1/B2/B3/B4/B5/B8
    • GSM: B2/B3/B5/B8

• • US:
    • LTE-FDD: B2/B4/B5/B12/B13/B17/B66/B71
    • WCDMA: B2/B4/B5
    • Standard: LTE-TDD, LTE-FDD, WCDMA, GSM


• SNR: ≥ 52 dB
• Wide Dynamic Range (WDR): 120 dB
• Privacy Mask: 4 programmable polygon privacy masks
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Interface

• Ethernet Interface: 1* RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in eMMC storage, up to 64GB; Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB, For eMMC storage, 50GB is available for recording.
• Built-in Microphone: Yes
• Built-in Speaker: Yes
• Reset Key: Yes

Event

• Basic Event: Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
• Linkage: Upload to NAS/memory card, notify surveillance center, trigger recording, trigger capture, audible warning

General

• Power
  • Power Consumption and Current:
    • Typical power scenarios: 1.85 W (4G working)
    • Standby scenarios: 40 mW
    • Max. power consumption: 6 W
    • Power Supply: 12 VDC ± 25%
    • *For debugging only
    • 40 W (deviation: ± 2 W) Solar panels
    • Power Interface: Power supply interface: Ø5.5 mm coaxial power plug
    • Extended solar panel: four-core aviation connector
• Material: Camera: Plastic; Solar panel: Metal
• Storage Conditions: -20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Heartbeat, mirror, flash log
• Startup and Operating Conditions: -20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
• Dimension: 686.6 mm × 442.6 mm × 760 mm (27.03″ × 17.42″ × 29.9″)
• Package Dimension: 902 mm × 342 mm × 440 mm (35.5″ × 13.5″ × 17.3″)
• Weight: Approx. 11.70 kg (25.8 lb.)
• With Package Weight: Approx. 15.01 kg (33.1 lb.)

Battery

• Battery Type: Ternary Lithium
• Capacity: 8.4 Ah × 2 packs
• Max. Charging Voltage: 12.6 V
• Operating Temperature:
  • Charging: -20 °C to 45 °C (-4 °F to 113 °F)
  • Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
• Battery Voltage: 9 V to 12.6 V
• Battery Life: More than 500 cycles
• Cycle Lifetime:
  • Performance mode: 3.6 days
  • Proactive mode: 6 days
  • Standby mode: 30 days
• Battery Weight: Approx. 1400 g (3.1 lb.)

Approval

• EMC:
  • CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014;
  • RCM: AS/NZS CISPR 32: 2015
  • IC: ICES-003: Issue 7 *

  • *IC certification is only for the device sold in the North American region. CE and RCM certifications are only for the device sold in the European region.

• RF:
  • IC ID (RSS-247 (BT or 2.4G))
  • CE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G)
  • *IC certification is only for the device sold in the North American region. CE certification is only for the device sold in the European region.
• Safety:
  • CB: IEC 62368-1: 2014+A11
  • CE-LVD: EN 62368-1: 2014/A11: 2017
  • LOA: IEC/EN 60950-1
  • *CE and LOA certifications are only for the device sold in the European region.
• Environment:
  • CE-RoHS: 2011/65/EU
  • WEEE: 2012/19/EU
  • Reach: Regulation (EC) No 1907/2006
  • *CE certification is only for the device sold in the European region.
• Protection: IP65: IEC60529-2013
