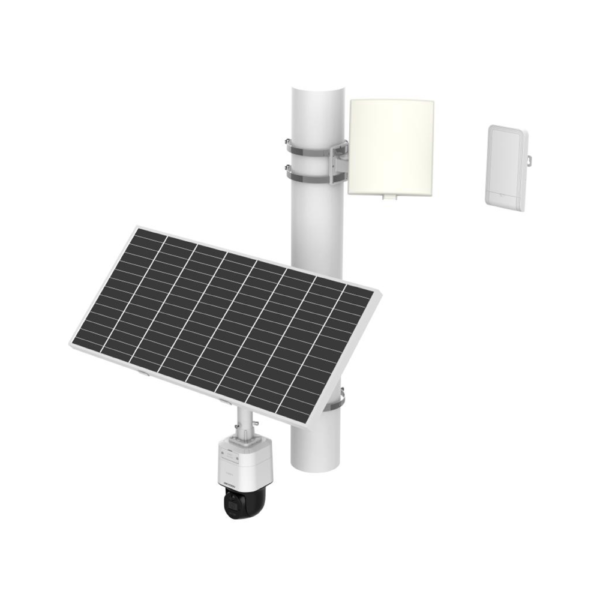

Hikvision DS-2XS3Q47G1-LDWH/C18S40

Camera

• Image Sensor: 1/3″ Progressive Scan CMOS
• Max. Resolution: 2560 × 1440
• Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Day & Night: 24/7 color imaging
• Angle Adjustment: Solar panel: pan: 0° to 358°, tilt: -40° to 0°; camera: pan: 0° to 340°, tilt: -5° to 105°

Lens

• Lens Type: Fixed focal lens; 2.8, 4, and 6 mm optional
• Focal Length & FOV: 4 mm, horizontal FOV 76°, vertical FOV 41°, diagonal FOV 89°
• Lens Mount: M12
• Iris Type: Fixed
• Aperture: F1.0

PTZ

• Movement Range (Pan): 0° to 340°
• Movement Range (Tilt): -5° to 105°
• Pan Speed: Configurable from 4° to 21°/s
• Tilt Speed: Configurable from 4° to 19°/s

DORI

• DORI: 4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m

Illuminator

• Supplement Light Type: White Light
• Supplement Light Range: Up to 30m
• Smart Supplement Light: Yes

Video

• Main Stream: 50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
• Sub-Stream: 50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)
• Video Bit Rate: 32 Kbps to 8 Mbps
• Video Compression: Main stream: H.265 / H.264; Sub-stream: H.265 / H.264 / MJPEG; H.264+ and H.265+: main stream supports under performance mode
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR, VBR
• Region of Interest (ROI): 1 fixed region for main stream
• Scalable Video Coding (SVC): H.264 and H.265 encoding

Audio

• Audio Sampling Rate: 8 kHz/16 kHz
• Environment Noise Filtering: Yes
• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network

• Security: Password protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• Protocols: TCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
• User/Host: Up to 32 users – 3 user levels: administrator, operator, and user
• Network Storage: Auto Network Replenishment (ANR)
• Client: iVMS-4200,Hik-Connect,Hik-Central
• Web Browser: Plug-in required live view: IE 10, IE 11; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Wi-Fi

• Encryption Mode: 64/128-bit WEP, WPA-EAP/WPA2-EAP, WPA-PSK/WPA2-PSK, WPS
• Wi-Fi Protocol: IEEE802.11g, IEEE802.11b, IEEE802.11n
• Frequency Range: 2.4 GHz to 2.4835 GHz
• Channel Bandwidth: 20/40 MHz
• Modulation: 802.11b: CCK, QPSK, BPSK,802.11g: OFDM ,802.11n: OFDM
• Transfer Rate: 11b: up to 11 Mbps; 11g: up to 54 Mbps; 11n: up to 150 Mbps
• Wireless Range: Up to 1000m – (The performance varies based on actual environment)
• Antenna: 1 Antenna


• SNR: ≥ 52 dB
• Wide Dynamic Range (WDR): Digital WDR
• Privacy Mask: 4 programmable polygon privacy masks
• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, 3D DNR
• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Transducer

• Detection Angle: Horizontal: 80°, vertical: 40°
• Detection Range: Up to 7m

Interface

• Ethernet Interface: 1* RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in eMMC storage, up to 64 GB,Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone: Yes
• Built-in Speaker: Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 97 dB.
• Reset Key: Yes
• Indicator: Yes

Event

• Basic Event: Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
• Linkage: Upload to memory card, notify surveillance center, trigger recording, trigger capture, audible warning

General

• Power: 12 VDC ± 25%, 1 A, max. 12 W
• Dimension: 686.6 mm × 442.6 mm × 760 mm (27.03″ × 17.42″ × 29.92″)
• Package Dimension: 902 mm × 342 mm × 440 mm (35.51″ × 13.46″ × 17.32″)
• Weight: Approx. 13.30 kg (29.3 lb.)
• With Package Weight: Approx. 16.65 kg (36.7 lb.)
• Storage Conditions: -20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: With -H: -20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
• Language: English, Ukrainian
• General Function: Heartbeat, mirror, flash log
• Flashing Light: Yes

Battery

• Battery Type: Lithium
• Battery Voltage: 9 V to 12.6 V
• Capacity: 8.4 Ah × 2 packs
• Max. Charging Voltage: 18 to 24 V
• Max. Output Voltage: 12.6 V
• Operating Temperature: With -H: Charging: -20 °C to 45 °C (-4 °F to 113 °F); Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
• Cycle Lifetime: Performance mode: 3.6 days; Proactive mode: 6 days; Standby mode: 30 days
• Battery Life: More than 500 cycles
• Battery Weight: Approx. 1400 g (3.1 lb.)
• Extended Dimension: 84 mm × 221 mm × 37.3 mm (3.31″ × 8.70″ × 1.47″)

Approval

• RF: CE-RED: 2014/53/EU
• EMC: CE-EMC: EN 55032:2015+A11:2020+A1:2020 EN 50130-4:2011+A1:2014; RCM: AS/NZS CISPR 32: 2015
• Safety: CB IEC: 62368-1:2014; CE-LVD: EN 62368-1: 2014+A11: 2017; LOA: SANS IEC 60950
• Environment: CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU
• Reach: Regulation (EC) No 1907/2006
• Protection: IP65: IEC 60529-2013
