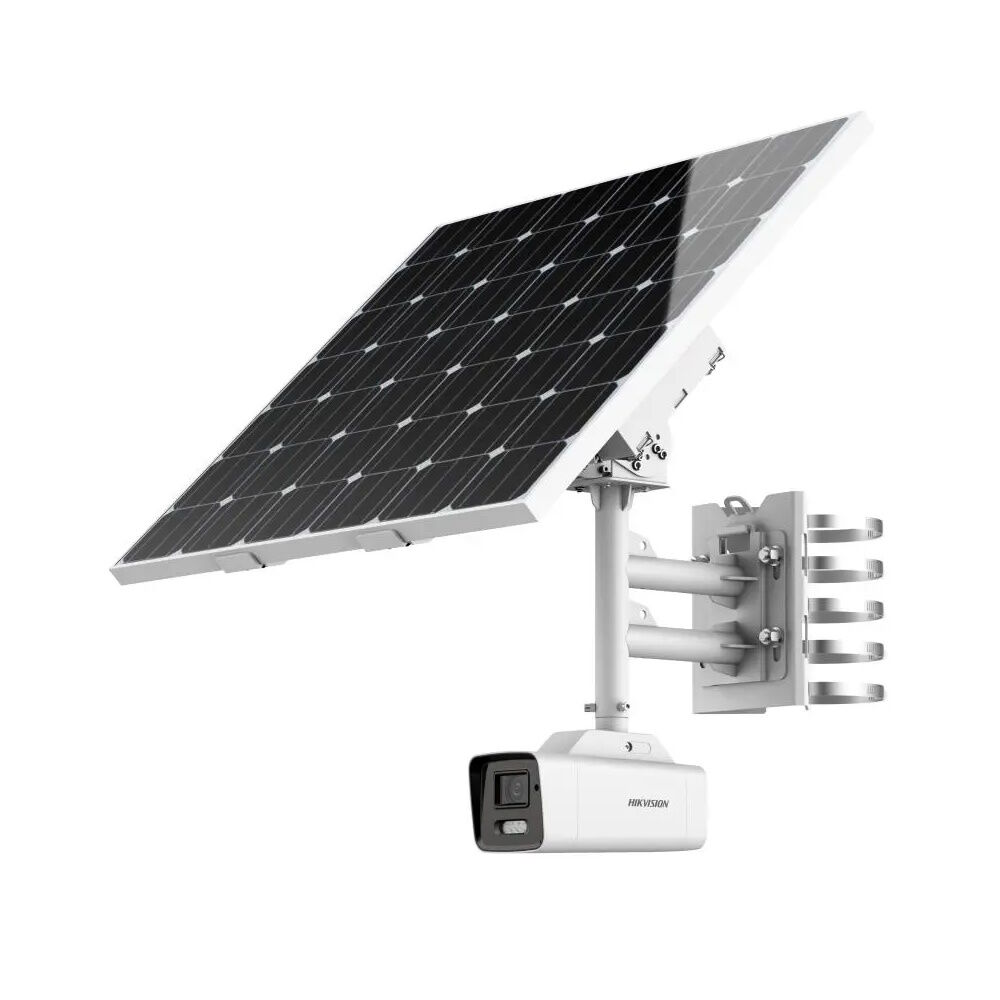

Hikvision DS-2XS6A46G1/P-IZS/C36S80

Camera

• Image Sensor: 1/1.8″ Progressive Scan CMOS
• Max. Resolution: 2560 × 1440
• Min. Illumination: Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0 Lux with light
• Shutter Time: 1 s to 1/100,000 s

Lens

• Focal Length & FOV: 8 to 32 mm, horizontal FOV 40.3° to 14.5°, vertical FOV 22.1° to 8.2°, diagonal FOV 46.9° to 16.5°
• Lens Type: Auto, Semi-auto, Manual
• Iris Type: Auto-iris
• Aperture: 2.8 to 12 mm: F1.2, 8 to 32 mm: F1.6
• Lens Mount: All In One Lens

DORI

• DORI: 8 to 32 mm: Wide: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15.0 m; Tele: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m

Illuminator

• Supplement Light Type: IR
• Supplement Light Range: 8 to 32 mm: Up to 50 m
• Smart Supplement Light: Yes

Video

• Main Stream: Performance mode: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720); Proactive mode: 50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720), 60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
• Sub-Stream: Performance mode: 50 Hz: 25 fps (640 × 480, 640 × 360), 60 Hz: 30 fps (640 × 480, 640 × 360); Proactive mode: 50 Hz: 12.5 fps (640 × 480, 640 × 360), 60 Hz: 15 fps (640 × 480, 640 × 360)
• Third Stream: 50 Hz: 1 fps (1280 × 720, 640 × 480), 60 Hz: 1 fps (1280 × 720, 640 × 480)
• Video Compression: Main stream: H.264 / H.265; Sub-stream: H.264 / H.265 / MJPEG; Third Stream: H.265 / H.264

  *Performance mode: main stream supports H.264+, H.265+

• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Bit Rate Control: CBR / VBR
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Region Of Interest (ROI): 4 fixed regions for main stream

Audio

• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering: Yes

Network

• Simultaneous Live View: Up to 6 channels
• API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP, OTAP
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
• User/Host: Up to 32 users – 3 user levels: administrator, operator, and user
• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS 1.3
• Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR) – Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client: Hik-Connect (proactive mode also supports), Hik-central Professional
• Web Browser: Plug-in required live view: IE 10+; Plug-in free live view: Chrome 57.0+, Firefox 52.0+; Local service: Chrome 57.0+, Firefox 52.0+

Mobile Communication

• SIM Card Type: MicroSIM
• Frequency: LTE-TDD: Band38/40/41; LTE-FDD: Band1/3/5/7/8/20/28; WCDMA: Band1/5/8; GSM: 850/900/1800 MHz
• Standard: LTE-TDD/LTE-FDD/WCDMA/GSM


• Wide Dynamic Range (WDR): 120 dB
• Day/Night Switch: Day, Night, Auto, Schedule, Video Trigger
• Image Enhancement: BLC, HLC, 3D DNR, Defog
• Image Parameters Switch: Yes
• Image Settings: Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• SNR: ≥ 52 dB
• Privacy Mask: 4 programmable polygon privacy masks

Interface

• Audio: 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
• Alarm: 1 input, 1 output (max. 12 VDC, 1 A)
• On-Board Storage: Built-in memory card slot, support microSD card, up to 256 GB; Built-in 8 GB eMMC storage
• Reset Key: Yes
• Ethernet Interface: 1* RJ45 10 M/100 M self-adaptive Ethernet port
• Wiegand: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72 bit)

Event

• Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD error)
• Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, scene change detection, face detection
• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning

Deep Learning Function

• Road Traffic And Vehicle Detection: Blocklist and allowlist: up to 10,000 records; Support license plate recognition

  License plate recognition rate: ≥95%

General

• Power: 12 VDC ± 20%, 4-pin M8 waterproof connector – (1) Standby power consumption: 45 mW (2) The average power consumption of 24 hours: 3.5 W (4G transmission is excluded) (3) The max. power consumption: 7 W
• Material: Front cover: metal, body: metal, bracket: metal
• Dimension: 816.2 mm × 735.9 mm × 760 mm (32.1″ × 28.9″ × 29.9″) (Max. size of the camera after it is completely assembled)
• Package Dimension: 862 mm × 352 mm × 762 mm (33.9″ × 13.9″ × 30.0″)
• Weight: Approx. 31.885 kg (70.3 lb.)
• With Package Weight: Approx. 25.650 kg (56.5 lb.)
• Storage Conditions: -20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions: -20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
• General Function: Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter

Battery

• Battery Type: Lithium
• Capacity: 360 Wh (90 Wh for each battery)
• Battery Voltage: 10.8 V
• Max. Output Voltage: 12.6 V
• Operating Temperature: Charging: -20 °C to 45 °C (-4 °F to 113 °F); Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
• Battery Life: More than 500 cycles
• Cycle Lifetime: Performance mode: 5 days, Proactive mode: 8 days, Standby mode: 80 days *in cloudy/rainy days (25 °C)
• Battery Weight: Approx. 2.74 kg (6.0 lb.) (0.685 kg (1.5 lb.) for each battery)

Approval

• EMC: CE-EMC/UKCA (EN 55032:2015+A11:2020+A1:2020,EN 50130-4:2011+A1:2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7)
• RF: CE-RED/UKCA (EN 301908-1,EN 301908-2,EN 301908-13, EN 301511,EN 301489-1,EN 301489-52,EN 62133); ICASA: same as CE-RED; IC ID (RSS-132 Issue 3, RSS-133 Issue 6, RSS-139 Issue 3, RSS-130 Issue 2, RSS-102 Issue 5); MIC (Article 49-6-4 and 49-6-5 the relevant articles and MIC Notice No. 1299 of the Ordinance Regulating Radio Equipment)
• Safety: CB (IEC 62368-1:2014+A11); CE-LVD/UKCA (EN 62368-1:2014/A11:2017); LOA (IEC/EN 60950-1)
• Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Protection: Camera: IP66 (IEC 60529-2013); Wind resistance 12 level, up to 40 m/s wind speed resistance
