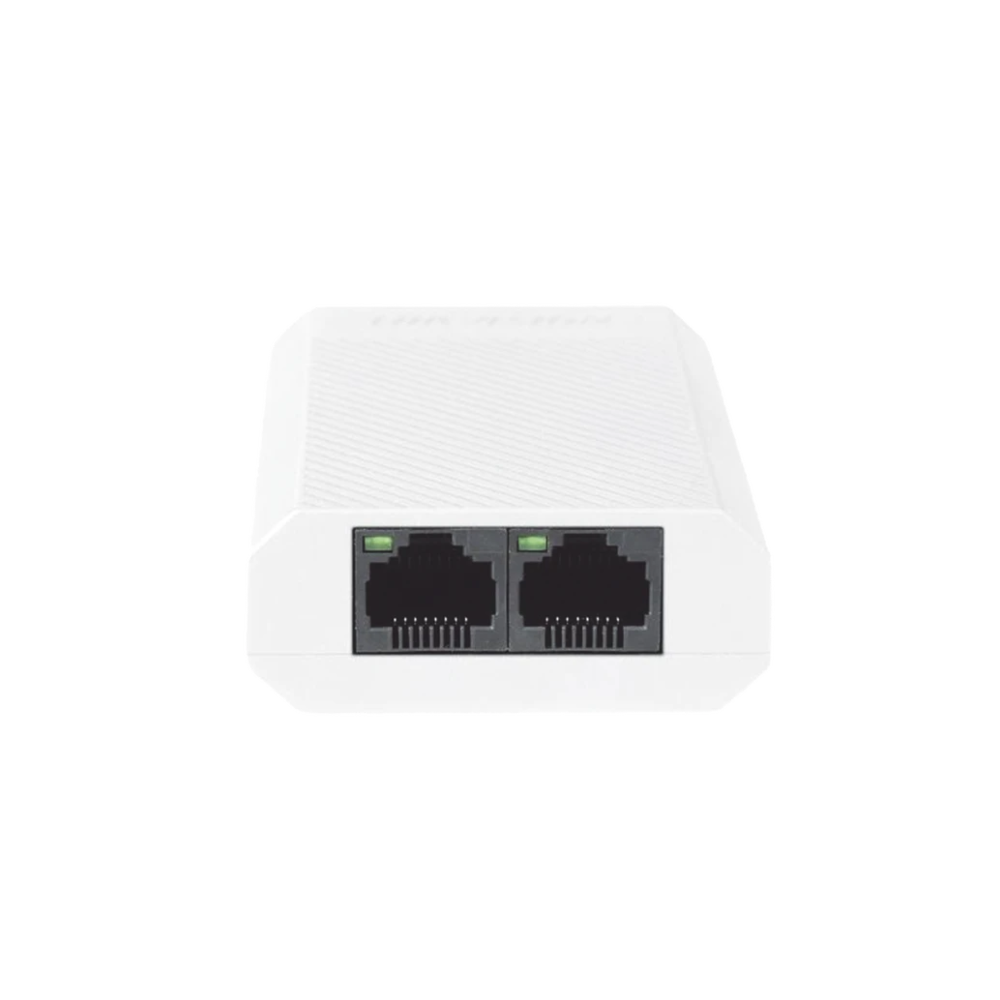

Hikvision DS-3E0103DP-E/R
Hikvision DS-3E0103DP-E/R PoE-Powered PoE Repeater / Splitter – 1* PoE Input with 2* PoE Outputs – 100Mbps Speed
SKU: DS-3E0103DP-E/R
Categories: Networking Products, PoE Extenders, Splitters & Repeaters
Tags: Ethernet, Hikvision, Network, PoE, PoE Splitter, Repeater
Hikvision DS-3E0103DP-E/R PoE-Powered PoE Repeater / Splitter – 1* PoE Input with 2* PoE Outputs – 100Mbps Speed
Key Features :-
- 1 × 10/100 Mbps PoE IN port and 2 × 10/100 Mbps PoE OUT port
- Compliant with IEEE 802.3af/at standard
- Up to 30 W PoE output power for the whole device
- PoE extension for longer transmission and power supply distance
- Plug and play, requiring no configuration
- Desktop installation
General
- Shell: Plastic material, fan-free design
- Net Weight: 0.046 kg (0.101 lb)
- Dimensions (W × H × D): 79.0 mm × 22.0 mm × 53.0 mm (3.11” × 0.87” × 2.09”)
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Relative Humidity: 5% to 95% (no condensation)
- Max. Power Consumption: 1.2 W
- Power Consumption in Idle: ≤ 0.92 W
- Installation Mode: Desk-Mounted
- Surge Protection: 2 KV
Network Parameters
- Ports: 1 × 10/100 Mbps PoE IN port and 2 × 10/100 Mbps PoE OUT port
- MAC Address Table: 2K
- Switching Capacity: 0.6 Gbps
- Packet Forwarding Rate: 0.45 Mpps
- Internal Cache: 0.77 Mbits
PoE Power Supply
- PoE Standard: IEEE 802.3af,IEEE 802.3at
- PoE Port: PoE: Ports 1 to 3
- Max. Port Power: 30 W
- PoE Power Budget: 30W
Approval
- EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
- Safety: UL (UL 62368-1); CB (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2029)
- Chemistry: CE-RoHS (2011/65/EU); WE
