Networking Products, Non-PoE Network Switches
Hikvision DS-3E0505-O

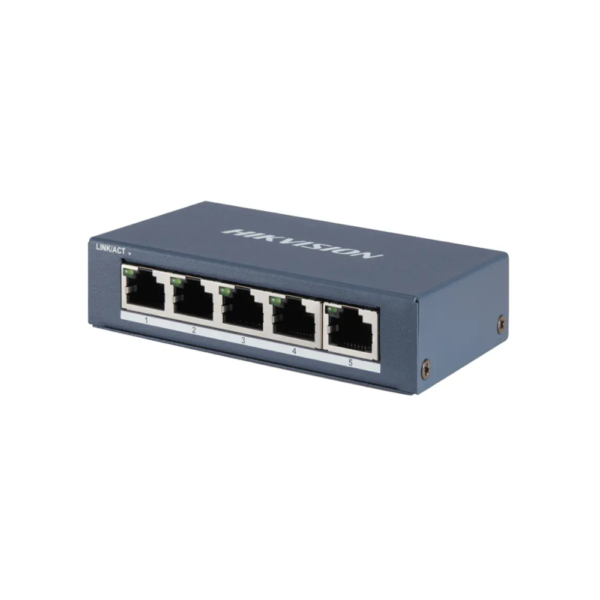

Hikvision DS-3E0505-O Pro-series Unmanaged Full-Gigabit Network Switch with 5* GbE LAN Ports – Fanless – 5VDC Powered (Adapter Included)
SKU: DS-3E0505-O
Categories: Networking Products, Non-PoE Network Switches
Tags: 5-port, Gigabit, Hikvision, Network, Unmanaged Switch
Hikvision DS-3E0505-O Pro-series Unmanaged Full-Gigabit Network Switch with 5* GbE LAN Ports – Fanless – 5VDC Powered (Adapter Included)
Features :-
- 5 × Gigabit RJ45 ports
- 1000M network access
- Wire-speed forwarding and non-blocking design
- Store-and-forward switching
- Solid high-strength metal shell
- Fan-free design with high reliability
General
- Shell: Metal material, fan-free design
- Net Weight: 0.17 kg (0.37 lb)
- Gross Weight: 0.35 kg (0.77 lb)
- Dimensions (W × H × D): 105.00 mm × 27.60 mm × 83.10 mm (4.13” × 1.09” × 3.27”)
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Relative Humidity: 5% to 95% (no condensation)
- Power Supply: 5VDC, 0.6A
- Max. Power Consumption: 3 W
- Power Consumption in Idle: 0.25 W
- Installation Mode: Desk-Mounted,Wall-Mounted
- Surge Protection: 6 KV
Network Parameters
- Ports: 5 × Gigabit RJ45 port
- MAC Address Table: 2 K
- Switching Capacity: 10 Gbps
- Packet Forwarding Rate: 7.44 Mpps
- Internal Cache: 3 Mbits
Approval
- EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
- Safety: CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- Chemistry: CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
