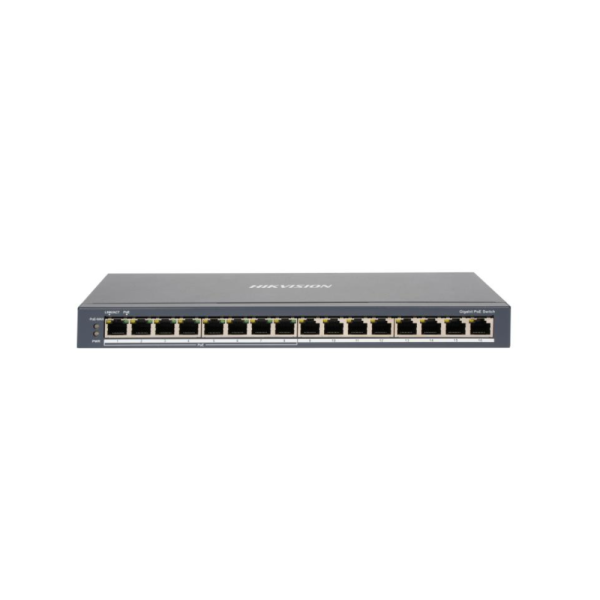

Hikvision DS-3E0516P-O
Hikvision DS-3E0516P-O Pro-series Unmanaged Full-Gigabit Network PoE Switch with 8* GbE PoE Ports + 8* GbE Network Ports – Total 110W PoE Output
SKU: DS-3E0516P-O
Categories: Networking Products, PoE Switches, Unmanaged PoE Switches
Tags: 8x PoE, Gigabit, Hikvision, Network, PoE, PoE Switch, Unmanaged Switch
Hikvision DS-3E0516P-O Pro-series Unmanaged Full-Gigabit Network PoE Switch with 8* GbE PoE Ports + 8* GbE Network Ports – Total 110W PoE Output
Features :-
- 8 × Gigabit PoE ports, 8 × Gigabit RJ45 port
- Gigabit PoE and non-PoE ports for multiple use
- Plug-and-play with easy connection
- Built to last with a rugged metal case
- Desktop/Wall-mounted installation available for any work environment
Hikvision Product-Link -> DS-3E516P-O
General
- Shell: Metal material, fan-free design
- Net Weight: 1.418 kg (2.204 lb)
- Gross Weight: 0.62 kg (1.37 lb)
- Dimensions (W × H × D): 286.0 mm × 103.35 mm × 27.8 mm (11.26” × 4.07” × 1.09”)
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Power Supply: 54 V DC, 2.22 A
- Surge Protection: 6 KV
Network Parameters
- Ports: 8 × 1 Gigabit PoE ports, 8 × 1 Gigabit RJ45 port
- MAC Address Table: 8K
- Switching Capacity: 32 Gbps
- Packet Forwarding Rate: 23.81 Mpps
- Internal Cache: 4.1 Mbits
PoE Power Supply
- PoE Power Pin: End-span: 1/2(-), 3/6(+)
- PoE Ports: PoE: Ports 1 to 8
- Max. Port Power: 30 W
- PoE Standard: IEEE 802.3at,IEEE 802.3af
- PoE Power Budget: 110 W
Approval
- EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
- Safety: UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
- Chemistry: CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
