Hikvision DS-3E0524TF

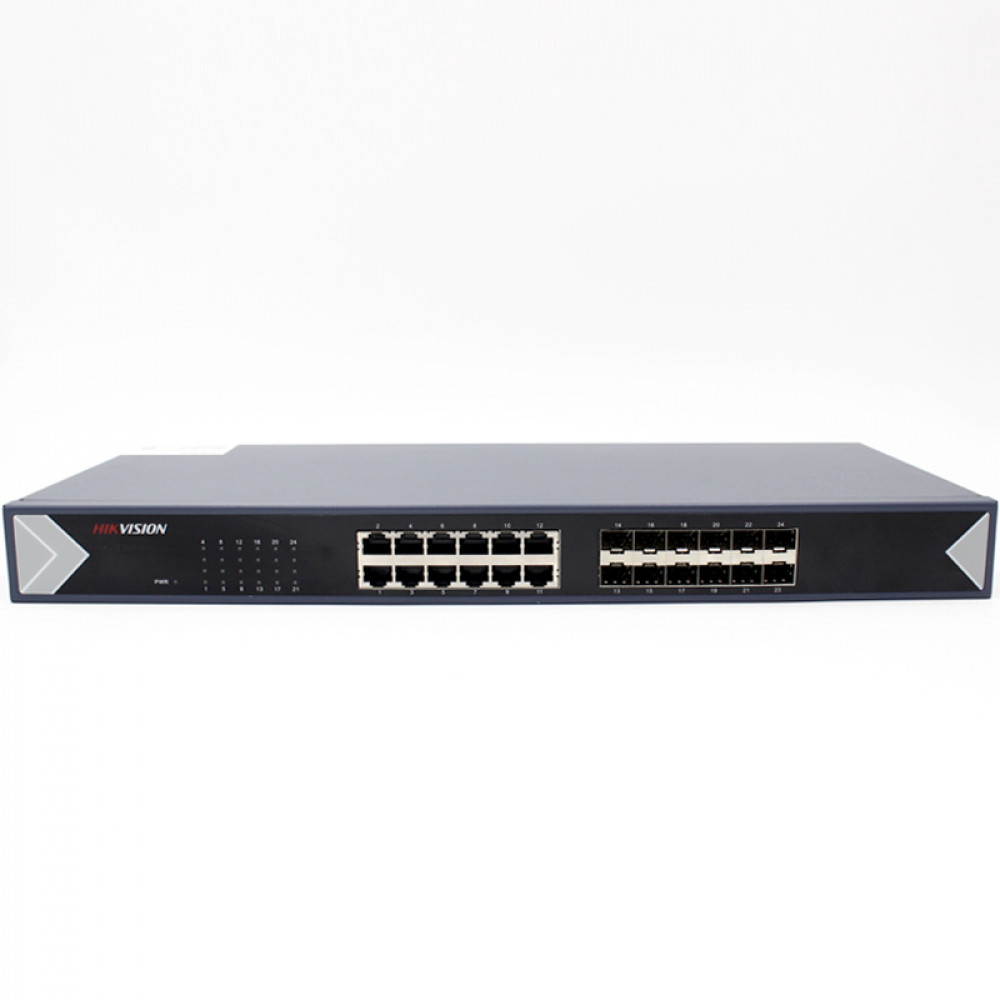

Hikvision DS-3E0524TF Pro-series 1U Rackmount Unmanaged 24-Port Gigabit Network Fibre Switch – 12 * Gigabit Ethernet Ports + 12 * Gigabit Fibre SFP Ports
SKU: DS-3E0524TF
Categories: Clearance, Fibre Switches, Networking Products, Non-PoE Network Switches, Special Offers
Tags: Gigabit, Hikvision, Network, Rackmount, SFP Port, Unmanaged Switch
Hikvision DS-3E0524TF Pro-series 1U Rackmount Unmanaged 24-Port Gigabit Network Fibre Switch – 12 * Gigabit Ethernet Ports + 12 * Gigabit Fibre SFP Ports
Features :-
- Layer 2 network switch designed for video data transmission
- 12 x 10/100/1000 Mbps ethernet ports and 12 x 10/100/1000 Mbps SFP ports
- IEEE 802.3, IEEE802.3u and IEEE802.3x network standards available
- Store-and-forward switching
- Delay of data-exchange less than 5us
- Safe and reliable using 4 KV high surge protection
- Plug and play ensures simplicity and convenience
Network Parameters
- Port Number: 12 × Gigabit RJ45 ports, and 12 × Gigabit fiber optical ports
- Port Type: Electrical ports: RJ45, Full/half duplex, MDI/MDI-X self-adptive,Fiber optical port: SFP packaging
- Standard: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x
- Forwarding Mode: Store-and-forward switching
- MAC Address Table: 16K
- Internal Cache: 12Mbit
- Switching Capacity: 48Gbps
- Packet Forwarding Rate: 35.7Mpps
Software Function
- Priority Queue: 8
General
- Shell: Metal material
- Net Weight: 2.600 kg (5.73 lb)
- Gross Weight: 3.302 kg (7.28 lb)
- Dimension (W × H × D): 440 × 44.5 × 186.5 mm (17.3 × 1.8 × 7.3 inch)
- Operating Temperature: -5 ˚C to +50 ˚C (+23 ˚F to +122 ˚F)
- Storage Temperature: -40 ˚C to +85 ˚C (-40 ˚F to +185 ˚F)
- Operating Humidity: 5% to 95% (no condensation)
- Storage Humidity: 5% to 95% (no condensation)
- Power Supply: 220VAC
- Power Consumption: ≤ 30 W
Approval
- EMC: FCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 14)
- Safety: UL (UL 62368-1); CB/RCM (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2024)
- Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2013)
