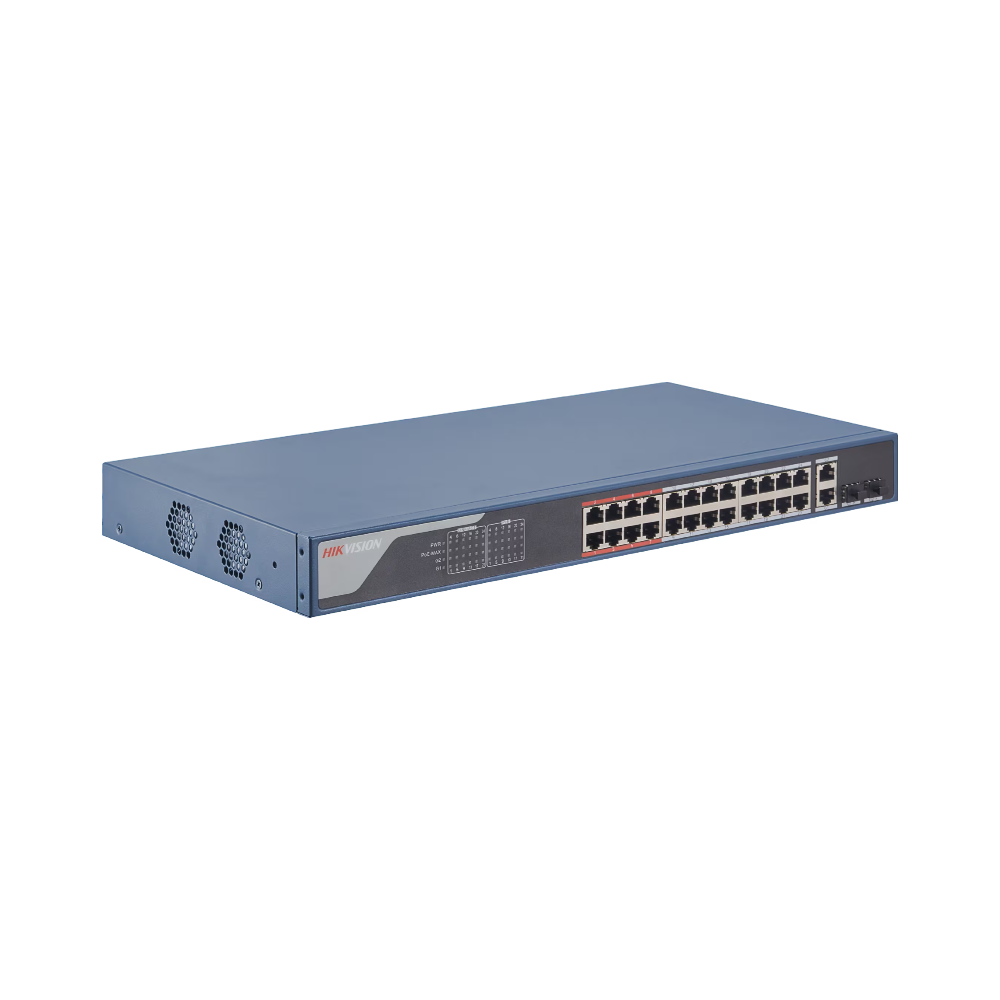

Hikvision DS-3E1326P-EI
Hikvision DS-3E1326P-EI Smart-Managed-Series 1U Rackmount Network PoE Switch with 24 * FE PoE Ports + 2 * GbE Combo Ports – 370w PoE Output – Supports Extend Mode
Hikvision DS-3E1326P-EI Smart-Managed-Series 1U Rackmount Network PoE Switch with 24 * FE PoE Ports + 2 * GbE Combo Ports – 370w PoE Output – Supports Extend Mode
Key Features :-
- 24 × 10/100M PoE ports, 2 × Gigabit combos.
- Total PoE Power Budget 370 W
- Support 802.1Q VLAN
- Support PoE watchdog to detect and restart the cameras that do not respond
- Support STP/RSTP Loop prevention
- Support cable detection to locate failure
- Up to 300 m Long Range PoE Transmission
- 6 kV Surge Protection
Unified cloud management for security systems
Set it all up on a phone
With the help of unified cloud management, even complex deployments no longer require cumbersome equipment, laptops, or monitors. Installers can set up these smart switches using the HPP app in only three steps. It’s quick and easy.
Visualized network topology on a phone
Hikvision smart managed switches can visualize topology on the HPP app. Visualizing a network is now super simple thanks to cloud management.
- Device connection topology
- Bandwidth consumption notification
- Network and device status
- Remote device configuration
Remote troubleshooting and maintenance
No more rushing to the site to troubleshoot problems! Now you can solve system issues remotely using the HPP app. Smart managed switches can locate issues easily and quickly, saving time and costs while improving operational efficiency.
- Device anomaly notifications
- Fault location display
- One-click abnormal port reboot via mobile device
General
- Shell: Metal material
- Net Weight: 2.83 kg (6.24 lb)
- Gross Weight: 3.8 kg (8.38 lb)
- Dimensions (W × H × D): 440.00 mm × 44.00 mm × 220.80 mm (17.32” × 1.73” × 8.69”)
- Operating Temperature: 0 °C to 45 °C (0 °F to 113 °F)
- Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Relative Humidity: 5% to 95% (no condensation)
- Power Supply: 100-240 VAC, 50/60 Hz, Max. 6.3 A
- Installation Mode: Rack (equipped with mounting ears)
- Max. Power Consumption: 400 W
- Power Consumption in Idle: 30 W
- Surge Protection: 6 kV
Network Parameters
- Ports: 24 × 10/100 Mbps PoE port + 2 × Gigabit combo
- MAC Address Table: 16 K
- Switching Capacity: Whole-Device Performance: 14.8 Gbps; Port Performance: 8.8 Gbps
- Packet Forwarding Rate: Whole-Device Performance: 11.01 Mpps; Port Performance: 6.55 Mpps
- Internal Cache: 4 Mbits
PoE Power Supply
- PoE Standard: IEEE 802.3af,IEEE 802.3at
- PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- PoE Port: PoE: Ports 1 to 24
- Max. Port Power: 30 W
- PoE Power Budget: 370 W
Software Function
- Long Range: Ports 1 to 24: up to 300 m; Long range performance may vary depend on camera model or cable condition.
- VIP Port: Ports 1 to 8: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.
- Port Isolation: Ports 1 to 24: port isolation mode to improve network security; Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
- PoE Watchdog: Ports 1 to 24: auto detect and restart the cameras that do not respond.
- Link Aggregation: Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection; Support static link aggregation; Support 1 aggregation group(s).
- Loop Prevention: Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default; Support 802.1D STP; Support 802.1w RSTP.
- VLAN: VLAN is used for network scale planning and network health improvement; Support 802.1Q; Configurable VLAN ID from 1-4094; Support Trunk, Access port mode; Support Max. 4094 VLAN.
- HPP: Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
- 1. Display the port rate.
- 2. Display the port bandwidth utilization rate.
- 3. Display the PoE power usage
- 4. Display topology information.
- 5. Display the alarm status.
- 6. Restart ports and devices.
- 7. Enable port long-rage mode.
- 8. Remotely upgrade the device.
- System Maintenance:
- Support device management via web.
- Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.
- Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.
- Support management via Hik-Central Pro.
- Support remote management via Hik-Partner Pro.
- Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.
- Supports 802.1ab LLDP for peer device discovery.
- Support port mirroring for fault locating.
Approval
- EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- Safety: CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
- Chemistry: CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
