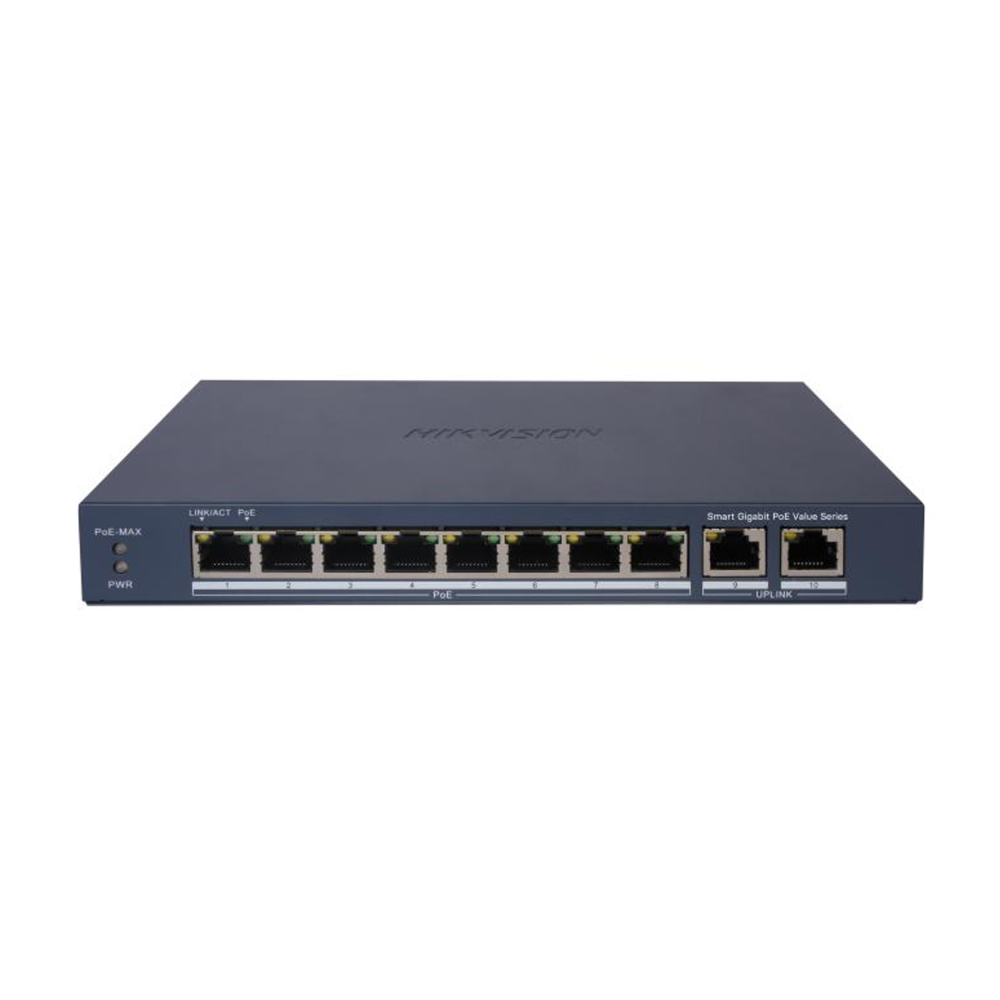

Hikvision DS-3E1510P-EI
Hikvision DS-3E1510P-EI Smart-Managed-Series Full-Gigabit Network PoE Switch – 8* GbE PoE Ports + 2* GbE Uplink Ports – 110w PoE Budget – Supports Extend Mode
Hikvision DS-3E1510P-EI Smart-Managed-Series Full-Gigabit Network PoE Switch – 8* GbE PoE Ports + 2* GbE Uplink Ports – 110w PoE Budget – Supports Extend Mode
Key Features :-
- 8 × Gigabit PoE port, 2 × Gigabit RJ45 port
- Total PoE Power Budget 110W
- Support 802.1Q VLAN
- Support PoE watchdog to detect and restart the cameras that do not respond
- Support STP/RSTP Loop prevention
- Support cable detection to locate failure
- Up to 300m Long Range PoE Transmission
- 6KV Surge Protection
Unified cloud management for security systems
Set it all up on a phone
With the help of unified cloud management, even complex deployments no longer require cumbersome equipment, laptops, or monitors. Installers can set up these smart switches using the HPP app in only three steps. It’s quick and easy.
Visualized network topology on a phone
Hikvision smart managed switches can visualize topology on the HPP app. Visualizing a network is now super simple thanks to cloud management.
- Device connection topology
- Bandwidth consumption notification
- Network and device status
- Remote device configuration
Remote troubleshooting and maintenance
No more rushing to the site to troubleshoot problems! Now you can solve system issues remotely using the HPP app. Smart managed switches can locate issues easily and quickly, saving time and costs while improving operational efficiency.
- Device anomaly notifications
- Fault location display
- One-click abnormal port reboot via mobile device
General
- Shell: Metal material
- Net Weight: 0.54 kg (0.6 lb)
- Gross Weight: 1.27 kg (1.7 lb)
- Dimensions (W × H × D): 217.6 mm × 27.6 mm × 108.5 mm (8.57” × 1.09” × 4.27”)
- Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
- Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity: 5% to 95% (no condensation)
- Relative Humidity: 5% to 95% (no condensation)
- Power Supply: 54VDC, 2.22A
- Installation Mode: Desk-Mounted, Wall-Mounted
- Max. Power Consumption: 120W
- Power Consumption In Idle: 2.7 W
- Surge Protection: 6 KV
Network Parameters
- Ports: 8 × Gigabit PoE port, 2 × Gigabit RJ45 port
- MAC Address Table: 4K
- Switching Capacity: 20 Gbps
- Packet Forwarding Rate: 14.88 Mpps
- Internal Cache: 1.5 Mbits
PoE Power Supply
- PoE Standard: IEEE 802.3af, IEEE 802.3at
- PoE Power Pin: End-span: 1/2(-), 3/6(+)
- PoE Port: PoE: Ports 1 to 8
- Max. Port Power: 30 W
- PoE Power Budget: 110 W
Software Function
- Long Range: Ports 1 to 8: up to 300 m. – Long range performance may vary depend on camera model or cable condition.
- Port Isolation: Ports 1 to 8: port isolation mode to improve network security; Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
- PoE Watchdog: Ports 1 to 8: auto detect and restart the cameras that do not respond.
- Link Aggregation: Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 2 aggregation groups.
- Loop Prevention: Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Suppport 802.1w RSTP.
- VLAN: VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 32 VLAN.
- HPP: Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
- 1. Display the port rate.
- 2. Display the port bandwidth utilization rate.
- 3. Display the PoE power usage.
- 4. Display topology information.
- 5. Display the alarm status.
- 6. Restart ports and devices.
- 7. Ena ble port long-rage mode.
- 8. Remotely upgrade the device.
- System Maintenance: Support device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Supports 802.1ab LLDP for peer device discovery. Support port mirroring for fault locating.
Approval
- EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
- Safety: CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)
- Chemistry: Reach (Regulation (EC) No.1907/2006),WEEE (2012/19/EU),CE-RoHS (2011/65/EU)
