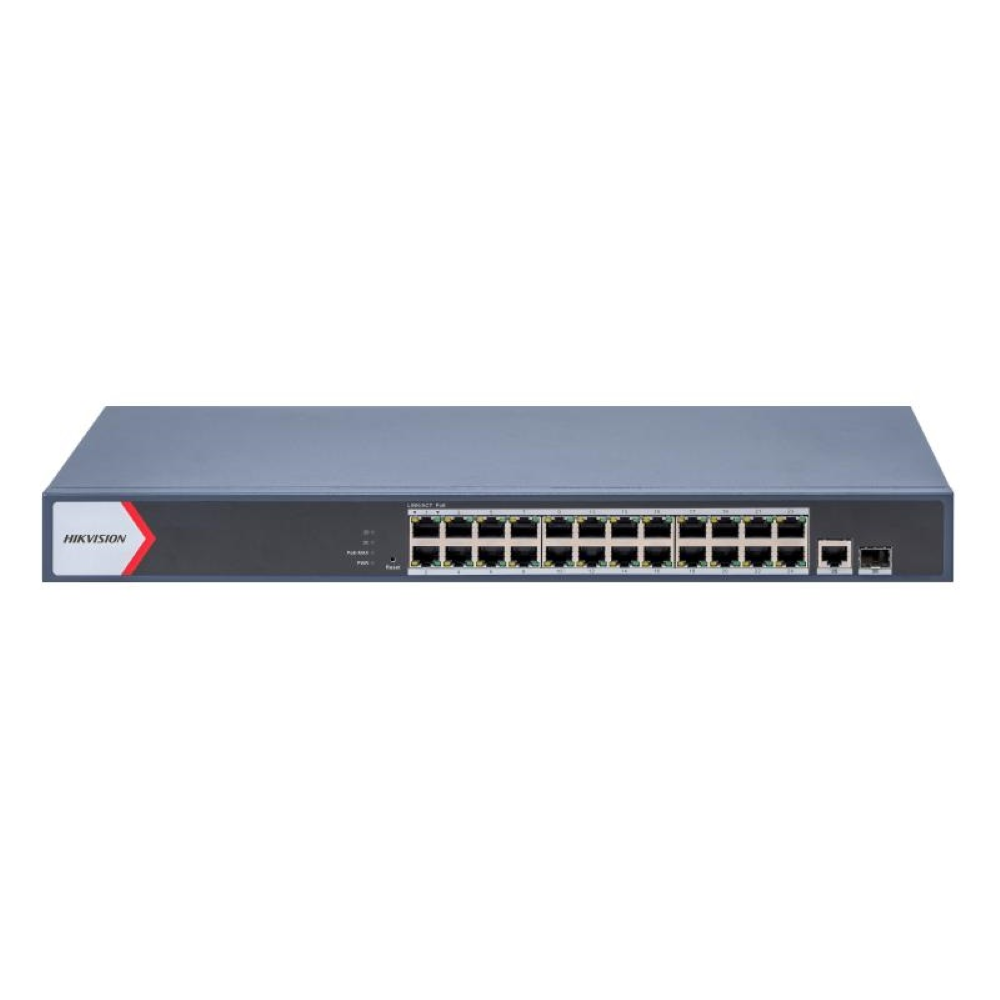

Hikvision DS-3E1526P-EI Smart-Managed-Series 1U Rackmount Full-Gigabit Network PoE Switch with 24 * GbE PoE Ports + 1 * GbE Uplink Port + 1 * SFP Slot – 370w PoE Output – Supports Extend Mode

Key Features :-

  • 24 x gigabit PoE RJ45 ports, 1 × gigabit RJ45 port, 1 x gigabit fiber optical port
  • Total PoE power budget 370 W
  • Unified cloud management for security systems
  • Network topology at your fingertips
  • Remote troubleshooting
  • Visualized topology management
  • Up to 300 m long-range PoE transmission
  • 6 kV surge protection

Hikvision Product-Link

smart poe switch

Set it all up on a phone

With the help of unified cloud management, even complex deployments no longer require cumbersome equipment, laptops, or monitors. Installers can set up these smart switches using the HPP app in only three steps. It’s quick and easy.

smart managed switch



Visualized network topology on a phone

Hikvision smart managed switches can visualize topology on the HPP app. Visualizing a network is now super simple thanks to cloud management.

  • Device connection topology
  • Bandwidth consumption notification
  • Network and device status
  • Remote device configuration
Smart Cloud Managed Network Switches

Remote troubleshooting and maintenance

No more rushing to the site to troubleshoot problems! Now you can solve system issues remotely using the HPP app. Smart managed switches can locate issues easily and quickly, saving time and costs while improving operational efficiency.

  • Device anomaly notifications
  • Fault location display
  • One-click abnormal port reboot via mobile device
smart managed switches



General

  • Shell: Metal material
  • Net Weight: 3.1 kg (6.83 lb)
  • Gross Weight: 3.3 kg (7.27 lb)
  • Dimensions (W × H × D): 440.0 mm × 220.8 mm × 44.0 mm (17.32” × 8.69” × 1.73”)
  • Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
  • Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity: 5% to 95% (no condensation)
  • Relative Humidity: 5% to 95% (no condensation)
  • Power Supply: 100~240 V AC, 50/60 Hz, Max. 6.3 A
  • Installation Mode: Rack (equipped with mounting ears)
  • Max. Power Consumption: 400 W
  • Power Consumption in Idle: 30 W
  • Surge Protection: 6 KV

Network Parameters

  • Ports: 24 × Gigabit PoE port, 1 × Gigabit RJ45 port, 1 × Gigabit fiber optical port
  • MAC Address Table: 8K
  • Switching Capacity: 56 Gbps
  • Packet Forwarding Rate: 41.66 Mpps
  • Internal Cache: 4.1 Mbits

PoE Power Supply

  • PoE Standard: IEEE 802.3af, IEEE 802.3at
  • PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
  • PoE Port: PoE: Ports 1 to 24
  • Max. Port Power: 30 W
  • PoE Power Budget: 370 W

Software Function

  • Long Range: Ports 1 to 24: up to 300m* Long range performance may vary depend on camera model or cable condition.
  • PoE Watchdog: Ports 1 to 24: auto detect and restart the cameras that do not respond.
  • Link Aggregation: Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 8 aggregation group(s).
  • Loop Prevention: Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Support 802.1w RSTP.
  • VLAN: VLAN is used for network scale planning and network health improvement; Support 802.1Q; Configurable VLAN ID from 1-4094; Support Trunk, Access port mode; Support Max. 32 VLAN.
  • Port Isolation: Ports 1 to 24: port isolation mode to improve network security; Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
  • System Maintenance:
    • Support device management via web.
    • Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.
    • Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.
    • Support remote management via Hik-Partner Pro.
    • Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.
    • Support 802.1ab LLDP for peer device discovery.
    • Support port mirroring for fault locating.
  • HPP: Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
    • 1. Display the port rate.
    • 2. Display the port bandwidth utilization rate.
    • 3. Display the PoE power usage.
    • 4. Display topology information.
    • 5. Display the alarm status.
    • 6. Restart ports and devices.
    • 7. Enable port long-rage mode.
    • 8. Remotely upgrade the device.

Approval

  • EMC: CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017);
  • Safety: UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
  • Chemistry: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
