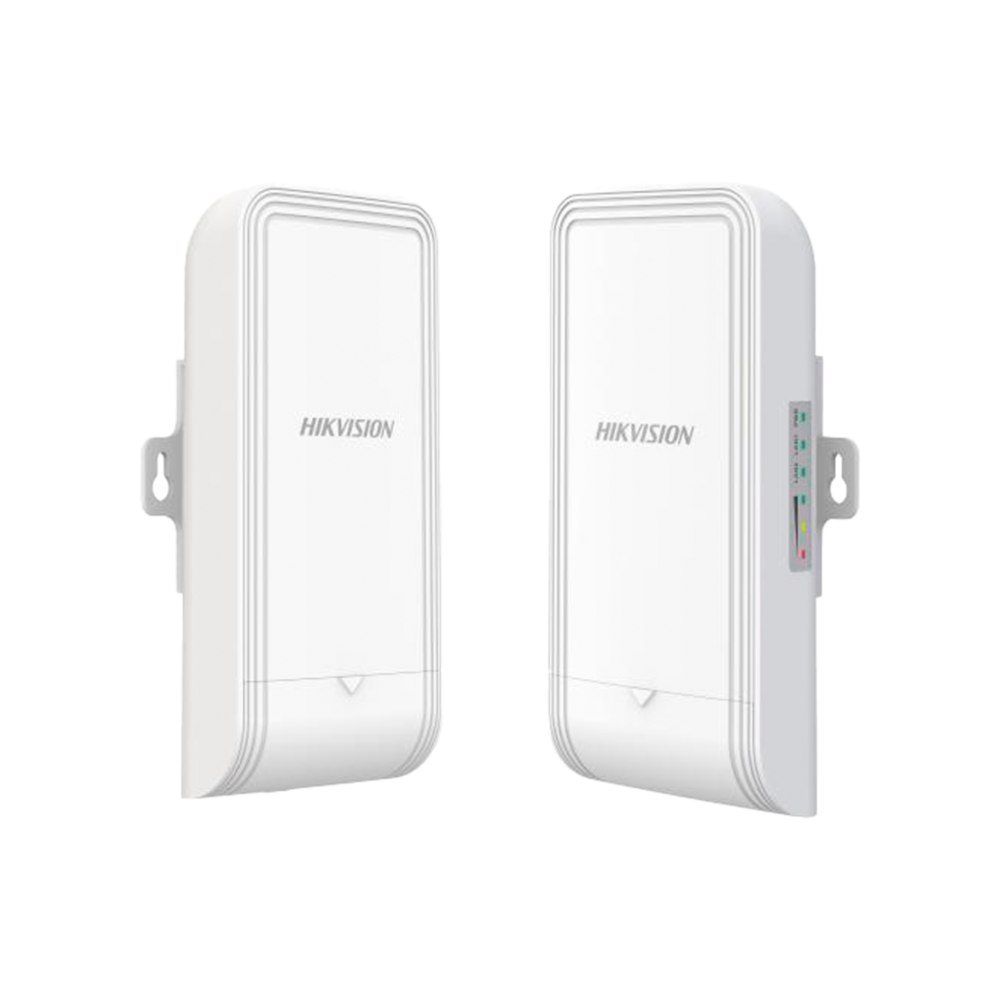

Hikvision DS-3WF02-5AC/D

General

• Product Dimensions (W × H × D): 90.8 mm × 187.87 mm × 57.87 mm (3.58” × 7.4” × 2.28”)
• Package Dimensions (W × H × D): 256 mm × 231 mm × 86 mm (10.07″ × 9.09″ × 3.38″)
• Net Weight: 0.26 kg (0.57 lb) per device
• Gross Weight: 1.1 kg (2.43 lb)
• Packing List: 2 * Wireless Access Points, 2 * GbE PoE  Injectors, 2 * Power Cords, 1 * Quick Start Guide, 1 * Regulatory Compliance and Safety Information, 4 * Binding Tapes
• Packing Method: Packing in pairs
• Working Temperature: -30 °C to 65 °C (-22 °F to 149 °F)
• Working Humidity: 5% to 95% (no condensation)
• Storage Temperature: -40 °C to 80 °C (-40 °F to 176 °F)
• Storage Humidity: 5% to 95% (no condensation)
• Installation Mode: Pole Mounting
• Ingress Protection: IP55
• Power Consumption: 2.43 W for typical (1-ch 2MP IPC), Max. 3.6 W

Wireless Parameter

• Max. Transmission Rate of Air Interface: ≤ 867 Mbps
• Wireless Standard: IEEE 802.11/a/n/ac
• Working Frequency Band: 5150 MHz ~ 5250 MHz, 5250 MHz~ 5350 MHz, 5470 MHz~ 5725 MHz, 5725 MHz~ 5825 MHz
• Antenna Gain: 12 dBi
• Antenna Angle: (H) Beamwidth [3 dB] 35° (V) Beamwidth [3 dB] 35°
• Transmitting Power: 22 dBm @11ac MCS0 (Note: Transmitting power may vary with local regulations.)
• Receiving Sensitivity: -84 ±2dBm@AC80-MCS0
• Throughput Rate: PTP: 90 Mbps @ 0.5 KM (AC80), 90 Mbps @1 KM (AC80), 40 Mbps @ 5 KM (AC80); PTMP (1 to 4): 80 Mbps @ 1 KM (AC80)

PoE Power Supply

• PoE Port: AP: LAN1 802.3af/at PoE IN; CPE: LAN1 passive PoE IN, LAN2 802.3 af PoE OUT
• PoE Power Budget: 10 W
• PoE Distance: 100 m

Hardware Parameter

• Network Interface: 2 × 10/100 Mbps RJ45 ports
• LED Indicator: Power indicator, LAN indicator, Signal intensity indicator
• Reset: Hardware resetting button
• Power Supply: 48V PoE/12~24V DC; Check the physical interface image below for more details.

Software Function

• Application Function: IFM, IPM, DFS, TPC
• Channel Width: 20/40/80 MHz
• Channel Selection: Auto / manual
• Security Mode: WPA2-PSK
• Security Mechanism: Wireless network name hidden
• Network Protocol: NTP (network time synchronization), SADP (auto search for IP address), HTTPS/HTTP (web management), SSH (debugging)
• Management Method: HCP, Web, iVMS-4200, HPP
• System Log: Syslog, Control center information
• Upgrade: Web, iVMS-4200, HCP, HPP
• HPP: Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
  • • 1. Reboot device
    • 2. Restore device
    • 3. Display the topology information
    • 4. Display the connection status between AP and CPEs, including signal intensity, backgroud noise, sending & receiving rate.
    • 5. Configure wireless settings, including working mode, SSID, password, channel, channel bandwidth, transmitting power
    • 6. Bridge alignment
    • 7. Spectrum scanning
    • 8. PoE output management

Approval

• EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
• SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
• ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
• RadioEN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
