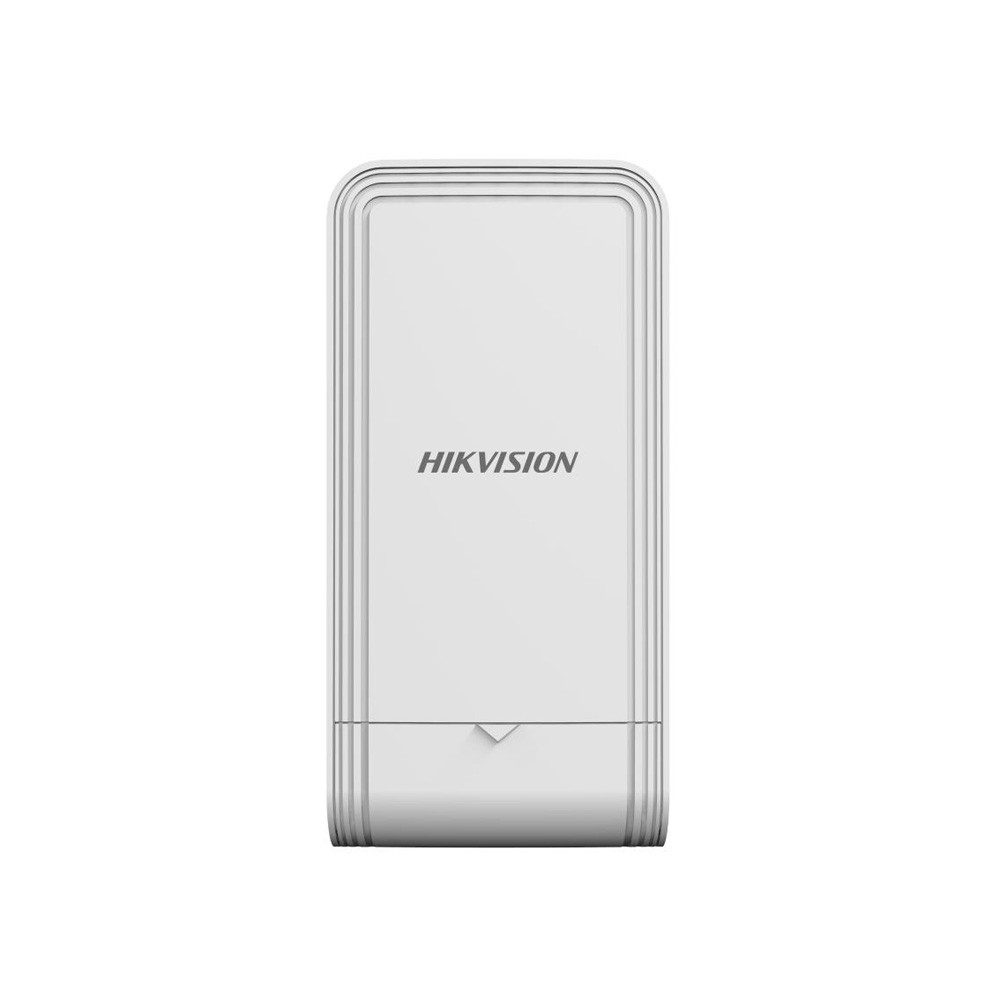

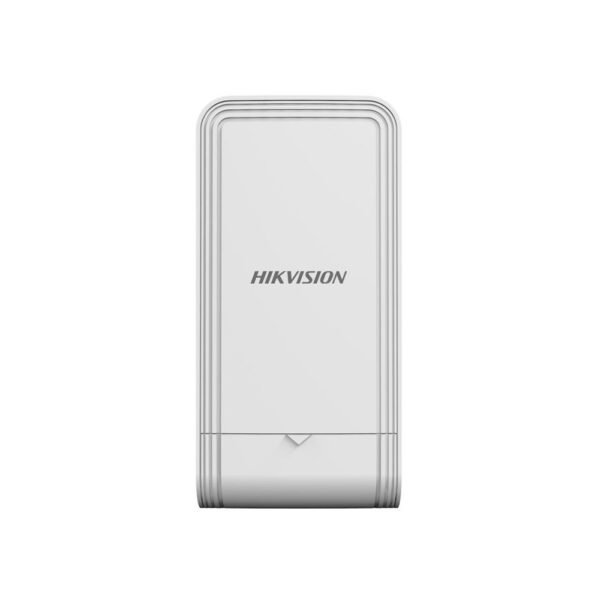

Hikvision DS-3WF02C-5AC/O

General

• Product Dimensions (W × H × D): 92 mm × 187 mm × 58 mm (3.62” × 7.36” × 2.28”)
• Package Dimensions (W × H × D): 132 mm × 228 mm × 91 mm (5.19″ × 8.97″ × 3.58″)
• Net Weight: 0.307 kg (0.677 lb)
• Gross Weight: 0.807 kg (1.779 lb)
• Packing List: 1 * Quick Start Guide, 1 * Regulatory Compliance and Safety Information, 1 * Wireless Bridge, 1 * Power Adapter (12VDC, 1 A), 2 * Binding Tape, 1 * GbE Mbps PoE Injector
• Packing Method: Single unit packing
• Working Temperature: -30 °C to 70 °C (-22 °F to 158 °F)
• Working Humidity: 5% to 95% (no condensation)
• Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
• Storage Humidity: 5% to 95% (no condensation)
• Installation Mode: Pole Mounting
• Ingress Protection: IP55
• Power Consumption: 2.65 W for typical (1-ch 2MP IPC), Max. 4.5 W

Wireless Parameter

• Max. Transmission Rate of Air Interface: ≤ 867 Mbps
• Wireless Standard: IEEE 802.11/a/n/ac
• Working Frequency Band: 5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5850 MHz
• Antenna Gain: 12 dBi
• Antenna Angle: (H) Beamwidth [3 dB] 35° (V) Beamwidth [3 dB] 35°
• Transmitting Power: 22 dBm @11ac MCS0 (Note: Transmitting power may vary with local regulations.)
• Receiving Sensitivity: -84±2dBm@AC80-MCS0
• Throughput Rate: PTP: 230 Mbps @ 0.5 KM (AC80), 200 Mbps @ 1 KM (AC80), 40 Mbps @ 5 KM (AC80); PTMP (1 to 8): 80 Mbps @ 1 KM (AC80)

Hardware Parameter

• Network Interface: 2*× 1000 Mbps RJ45 ports
• LED Indicator: Power indicator, LAN indicator, Signal intensity indicator
• Reset: Hardware resetting button
• Power Supply: 12 VDC/1 A Passive PoE

Software Function

• Application Function: TDMA, DFS, TPC, IFM, IPM
• Channel Width: 20/40/80 MHz
• Channel Selection: Auto/manual selection
• Security Mode: WPA2-PSK
• Security Mechanism: Wireless network name hidden
• Network Protocol: NTP (network time synchronization), SADP (auto search for IP address), HTTPS/HTTP (web management), SSH (debugging)
• Management Method: Web, iVMS-4200, HCP, HPP
• System Log: Syslog, Control center information
• Upgrade: Web, iVMS-4200, HCP, HPP
• HPP: Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
  • 1. Reboot device
  • 2. Restore device
  • 3. Display the topology information
  • 4. Display the connection status between AP and CPEs, including signal intensity, background noise, sending & receiving rate
  • 5. Configure wireless settings, including working mode, SSID, password, channel, channel bandwidth, transmitting power
  • 6. Bridge alignment
  • 7. Spectrum scanning

Approval

• EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
• SafetyUL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
• ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
• RadioEN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17,FCC Part 15.247
