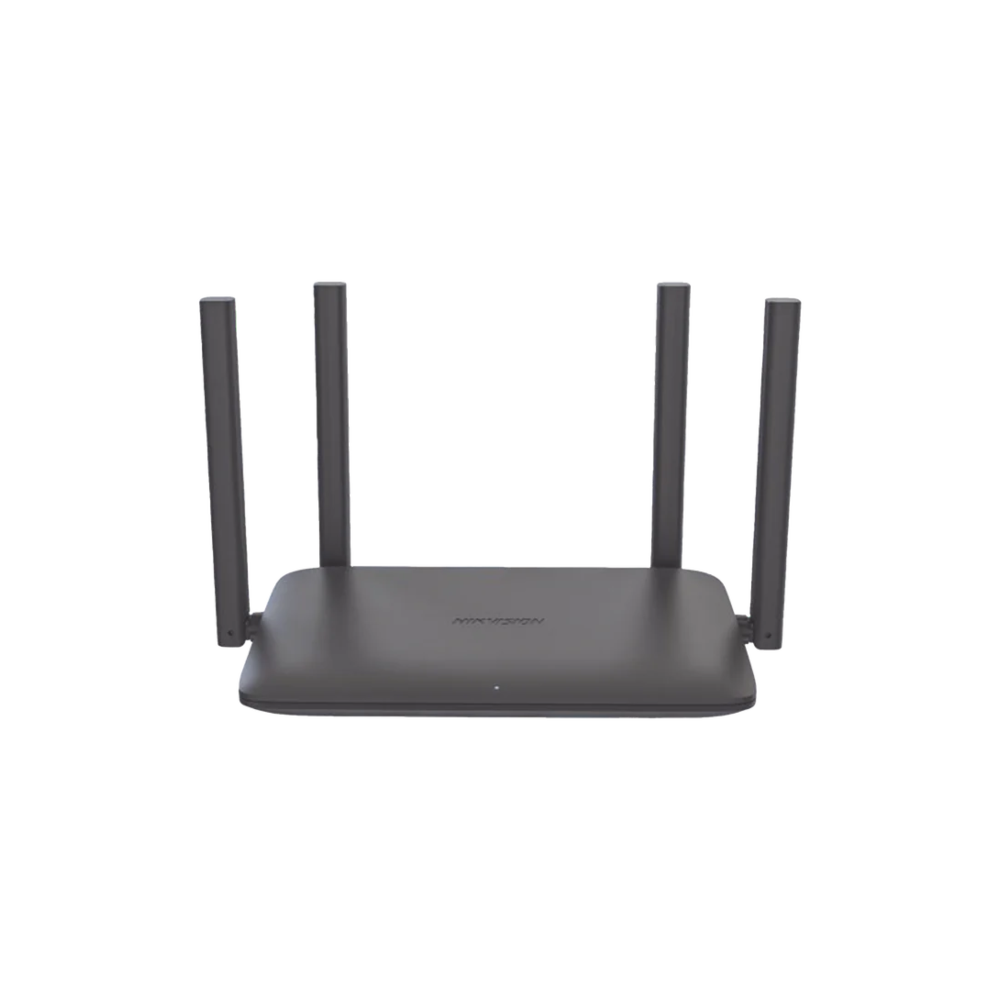

Hikvision DS-3WR15X

General

• Product Dimension (W × H × D): 241.3 mm × 140.8 mm × 156.3mm
• Package Dimension (W × H × D): 380 mm × 285 mm × 73 mm
• Net Weight: 0.245 kg
• Packing List: 1 * 1500Mbps Wi-Fi6 Router, 1 * Power Supply Adaptor, 1 * CAT5e Network Cable, 1 * Quick Start Guide, 1 * Regulatory Compliance and Safety Information
• Packing Method: Single pack
• Working Temperature: 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
• Working Humidity: 10% to 90% RH non-condensing
• Storage Temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
• Storage Humidity: 5% to 95% RH non-condensing
• Installation Mode: Desktop installation
• Max. Power Consumption: ≤ 10 W
• Gross Weight: 0.790 kg

Wireless Parameter

• Data Rate: ≤ 1501 Mbps, 5GHz: 1201Mbps, 2.4GHz: 300Mbps
• Wireless Standard: IEEE 802.11a/n/ac/ax @ 5GHz, IEEE 802.11b/g/n @2 .4GHz
• Transmitting Power: CE: ＜20dBm(2.4GHz), ＜23dBm(5GHz)
• Wireless Performance: MU-MIMO supported, TxBeamforming supported
• Receiving Sensitivity: 5GHz: -89dBm@HE80-MCS0, -60dBm@HE80-MCS11; 2.4GHz: -93dBm@HT40-MCS0, -73dBm@HT40-MCS7
• Antenna: 4 high gain antennas

Hardware Parameter

• Network Interface: 1 × 10/100/1000 Mbps Adaptive WAN Port, 3 × 10/100/1000 Mbps Adaptive LAN Ports
• LED Indicator: LED indicator
• Reset: Reset button
• Power Supply Method: Power Supply Adapter
• Power Specifications: DC 12 V, 1 A

Software Function

• Application function:
  • Routing Mode, Wireless Relay Mode, Wired Bridge Mode supported
  • DHCP Server supported
  • Guest Network Configuration supported
  • Signal Adjustment supported
  • WiFi Schedule supported

  • Daylight Saving Time supported

• Security Mode: WPA2-PSK,WPA/WPA2-PSK,WPA2-PSK/WPA3-SAE supported
• Security Mechanism:
  • Support fast and secure WPS connection
  • Support hiding wireless network name
  • Support controlling terminal network connection

  • Support firewalls

• Management Method: Web, HIK-Connect APP
• Upgrade: Web, App Update and Upgrade
• System Log: System log
