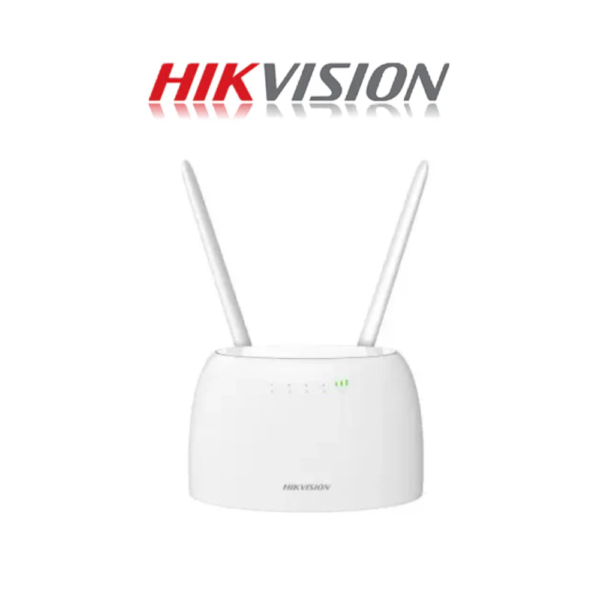

Hikvision DS-3WR4G12C

General

• Product Dimensions (W × H × D): 233.9mm × 151.4mm × 40.3mm
• Package Dimensions (W × H × D): 405mm × 307mm × 80mm
• Net Weight: 0.560kg
• Packing List: 1 * 4G LTE Router, 1 * Power Adapter, 2 * Detachable Antennas, 1 * Ethernet Cable, 1 * SIM Card Adapter, 1 * Quick Start Guide, 1 * Regulatory Compliance and Safety Information
• Packing Method: Single pack
• Working Temperature: 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
• Working Humidity: 10% to 90% RH non-condensing
• Storage Temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
• Storage Humidity: 5% to 90% RH non-condensing
• Installation Mode: Desktop installation
• Max. Power Consumption: ≤ 9 W
• Gross Weight: 0.620 kg

Wireless Parameter

• Max. Transmission Rate of Air Interface: ≤ 1167 Mbps, 2.4 GHz: 300 Mbps, 5 GHz: 867 Mbps
• Wireless Standard: IEEE 802.11/a/n/ac wave 2 @ 5GHz, IEEE 802.11b/g/n @ 2.4GHz
• Working Frequency Band: 2.4 GHz，5 GHz
• Transmitting Power: 16dBm @ 2.4G-mcs7、17dBm @ 5G-mcs9
• Wireless Performance: 2 * 2 MIMO supported
• Receiving Sensitivity: -58 ± 2 dB@AC80 -MCS9, -84 ± 2 dB@AC80 -MCS0
• Antenna: 2 * high gain antennas
• Network Type: LTE CAT.4
• Mobile Standards: FDD LTE, TDD-LTE,WCDMA
• Mobile Bands: 4G FDD LTE: B1/B3/B7/B8/B20/B28AB,4G TDD-LTE: B38/B40/B41,3G WCDMA: B1/B8
• 4G Speed: DL: 150 Mbps, Upload: 50 Mbps

Hardware Parameter

• Network Interface: 2 × RJ45, 10/100 Mbps auto-negotiation
• LED Indicator: power LED*1、internet LED*1、WiFi LED*1、RJ45 LED*1、LTE LED*3
• ResetReset button: *1
• Power Supply Method: 9 VDC, 1 A power adapter power supply
• Power Specifications: 9 VDC, 1 A

Software Function

• Application Function:
  • 3G/4G Route Mode, Wireless Router Mode, and AP Mode supported
  • DHCP Server supporte
  • Guest Network Configuration supported
  • Signal Adjustment supported
  • WiFi Schedule supported
• Security Mode: WPA-PSK, WPA2-PSK, WPA and WPA2 supported
• Security Mechanism: Hide SSID
• Management Method: Web
• Upgrade: Web
• System Log: System log
