Hikvision DS-7108NI-Q1/M

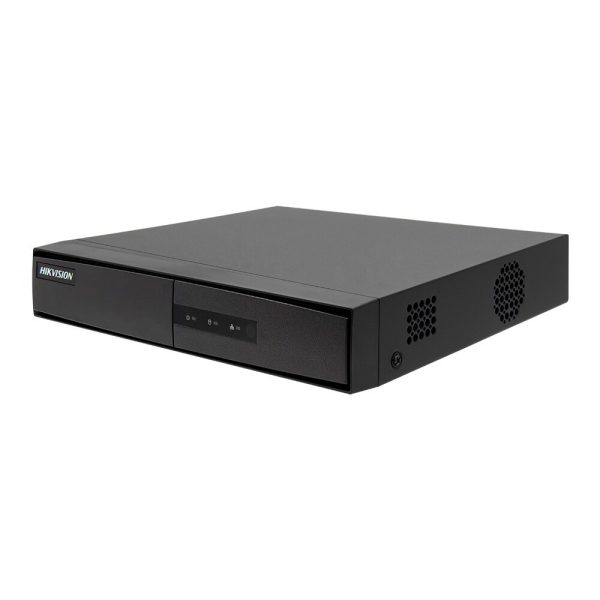

Hikvision DS-7108NI-Q1/M Value Series Mini 1U 8-Channel NVR – 12VDC Powered
SKU: DS-7108NI-Q1/M
Categories: CCTV / Surveillance, Hikvision NVRs, IP Surveillance, NVRs
Tags: Decoder, H265, Hikvision, Network Video Recorder, NVR
Hikvision DS-7108NI-Q1/M Value Series Mini 1U 8-Channel NVR – 12VDC Powered
Features :-
- H.265+ / H.265 / H.264+ / H.264 video compression
- Up to 60 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
- Up to 8-ch network camera inputs
- Up to 4-ch 1080p decoding capability
- HDMI and VGA simultaneous output
- Hardware characteristics :-
-
-
- 1 x VGA port (max. 1080P resolution)
- 1 x HDMI port (max. 1080P resolution) – simultaneous display output as VGA
- 1 x 3.5″ SATA HDD port (max. 6TB HDD per port)
- 2 x USB ports (two rear)
- 1 x LAN port (10/100Mbps)
- No Alarm input ports
- No Alarm output ports
- No Audio RCA input ports
- No Audio RCA output ports
-
-
Video And Audio
- IP Video Input: 8-ch – Up to 6MP resolution
- Incoming Bandwidth: 60 Mbps
- Outgoing Bandwidth: 60 Mbps
- HDMI Output: 1-ch, 1920 × 1080p / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz
- VGA Output: 1-ch, 1920 × 1080p / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz
- Video Output Mode: HDMI / VGA simultaneous output
Decoding
- Decoding Format: H.265+ / H.265 / H.264+ / H.264
- Recording Resolution: 6MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
- Synchronous Playback: 8-ch
- Decoding Capability: 4-ch @ 1080p (25 fps), 2-ch @ 4MP (25 fps) OR 1-ch @ 6MP (30 fps)
- Stream Type: Video, Video & Audio
Network
- Remote Connection: 16
- Network Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™
- Network Interface: 1, RJ-45 10/100Mbps self-adaptive Ethernet interface
Auxiliary Interface
- SATA: 1 SATA interface
- Capacity: Up to 6TB capacity for each disk
- Alarm In/Out: N/A
- USB Interface: Rear panel: 2 × USB 2.0
General
- Power Supply: 12 VDC, 1.5 A
- Consumption: ≤ 10 W
- Working Temperature: -10 to +55º C (+14 to +131º F)
- Working Humidity: 10% to 90%
- Dimension (W × D × H): 265 × 225 × 48 mm (10.4″ × 8.9″ × 1.9″)
- ≤ 1 kg (2.2 lb)
Certification
- FCC: Part 15 Subpart B, ANSI C63.4-2014
- CE: EN50130-4, EN 61000-3-2,EN 61000-3-3
