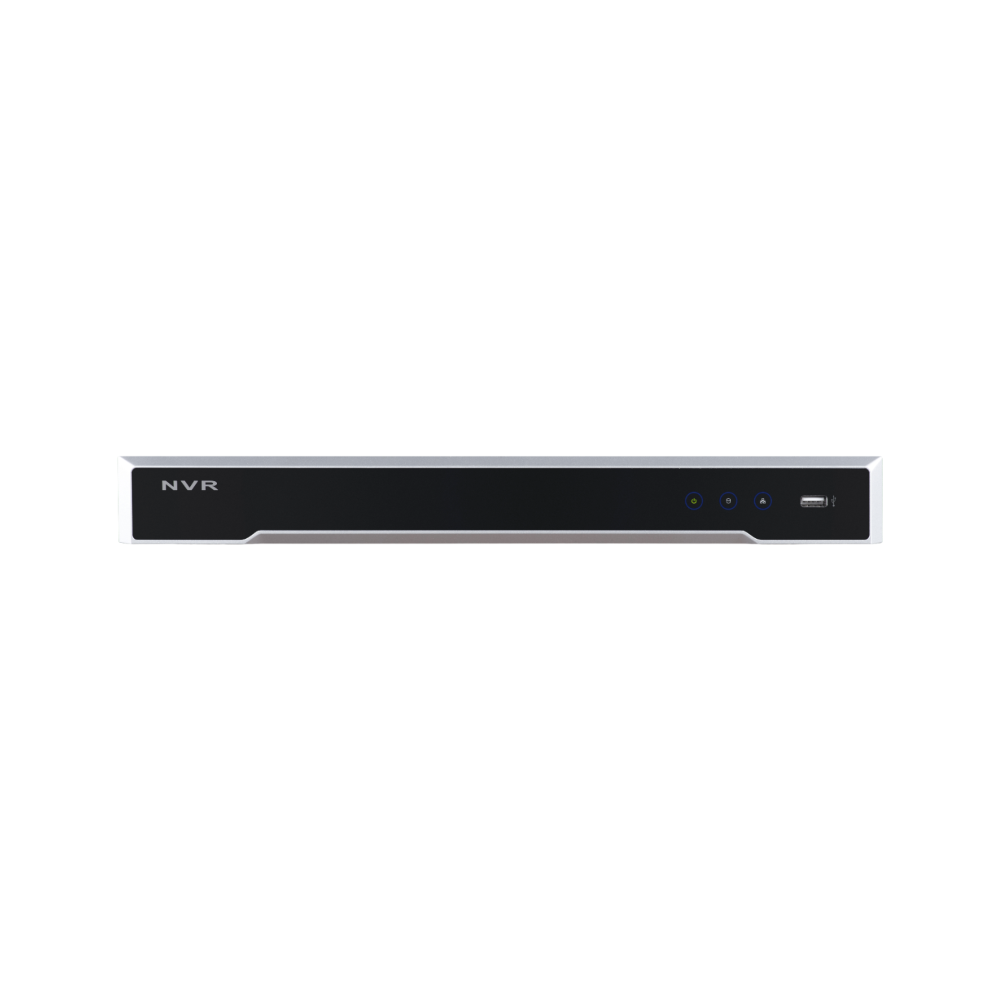

Hikvision DS-7604NI-M1/4P-4TB
Hikvision DS-7604NI-M1/4P-4TB M-series 4K 8K 1U 4-Channel 4x PoE NVR (Network Video Recorder) with 4TB Storage HDD
SKU: DS-7604NI-M1/4P-4TB
Categories: CCTV / Surveillance, Hikvision NVRs, IP Surveillance, NVRs
Tags: 12MP, 4-Channel, 4K Resolution, 4x PoE, H265, Hikvision, Network, Network Video Recorder, NVR, PoE
Hikvision DS-7604NI-M1/4P-4TB M-series 4K 8K 1U 4-Channel 4x PoE NVR (Network Video Recorder) with 4TB Storage HDD
Key Features :-
- H.265+ / H.265 / H.264+ / H.264 video formats
- Up to 4-ch IP camera inputs
- 4-ch @ 8MP decoding ability
- 40Mbps throughput
- 1 SATA interface – up to 16TB storage HDD
- Supports AcuSense, ColorVu, ANPR, people counting, thermal and heatmap cameras
- Human and vehicle search
- Hik-Connect P2P – quick remote access setup
- HDMI & VGA – can be independent outputs
- Hardware characteristics :-
-
-
- 1 x VGA port (max. 1080P resolution)
- 1 x HDMI port (max. 8K resolution) – Can be configured to display different sets of cameras on HDMI
- 1 x 3.5″ SATA HDD port (max. 16TB HDD per port)
- 2 x USB ports (one front, one rear)
- 4 x PoE ports (10/100Mbps)
- 1 x LAN port (10/100/1000Mbps)
- 4 x Alarm input ports
- 1 x Alarm output port
- 1 x Audio RCA input port
- 1 x Audio RCA output port
-
-
Video and Audio
- IP Video Input: 4-ch – Up to 32 MP resolution
- Incoming Bandwidth: 40Mbps
- Outgoing Bandwidth: 80Mbps
- HDMI Output: 8K (7680 × 4320) / 30Hz, 4K (3840 × 2160) / 30Hz, 2K (2560 × 1440) / 60Hz, 1920 × 1080 / 60 Hz
- VGA Output: 1920 × 1080 / 60 Hz
- Video Output Mode: HDMI / VGA independent output
- CVBS Output: NA
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
- Dual-Stream Recording: Support
- Decoding Format: H.265+ / H.265 / H.264+ / H.264
- Decoding Capability: 4-ch @ 8MP (30 fps) / 8-ch @ 4MP (30 fps) / 16-ch @ 1080p (30 fps)
- Synchronous Playback: 4-ch
- Recording Resolution: 32MP / 24MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
- Stream Type: Video, Video & Audio
- Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
Network
- Remote Connection: 128
- Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface: 1* RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
- Interface: 4* RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power: ≤ 60 W
- Standard: IEEE 802.3 af/at
Auxiliary Interface
- SATA: 1 SATA interfaces
- Capacity: Up to 16 TB capacity for each HDD
- Alarm In/Out: 4/1
- USB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
General
- Power Supply: 48 VDC, 1.875 A
- Consumption: ≤ 15 W (without HDD and PoE off)
- Working Temperature: -10 °C to 50 °C (14 °F to 122 °F)
- Working Humidity: 10% to 90%
- Dimension (W × D × H): 320× 240 × 48 mm (12.4″ × 9.4″ × 1.9″)
- Weight: ≤ 1.2 kg (without HDD, 2.6 lb.)
Certification
- CE: EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
