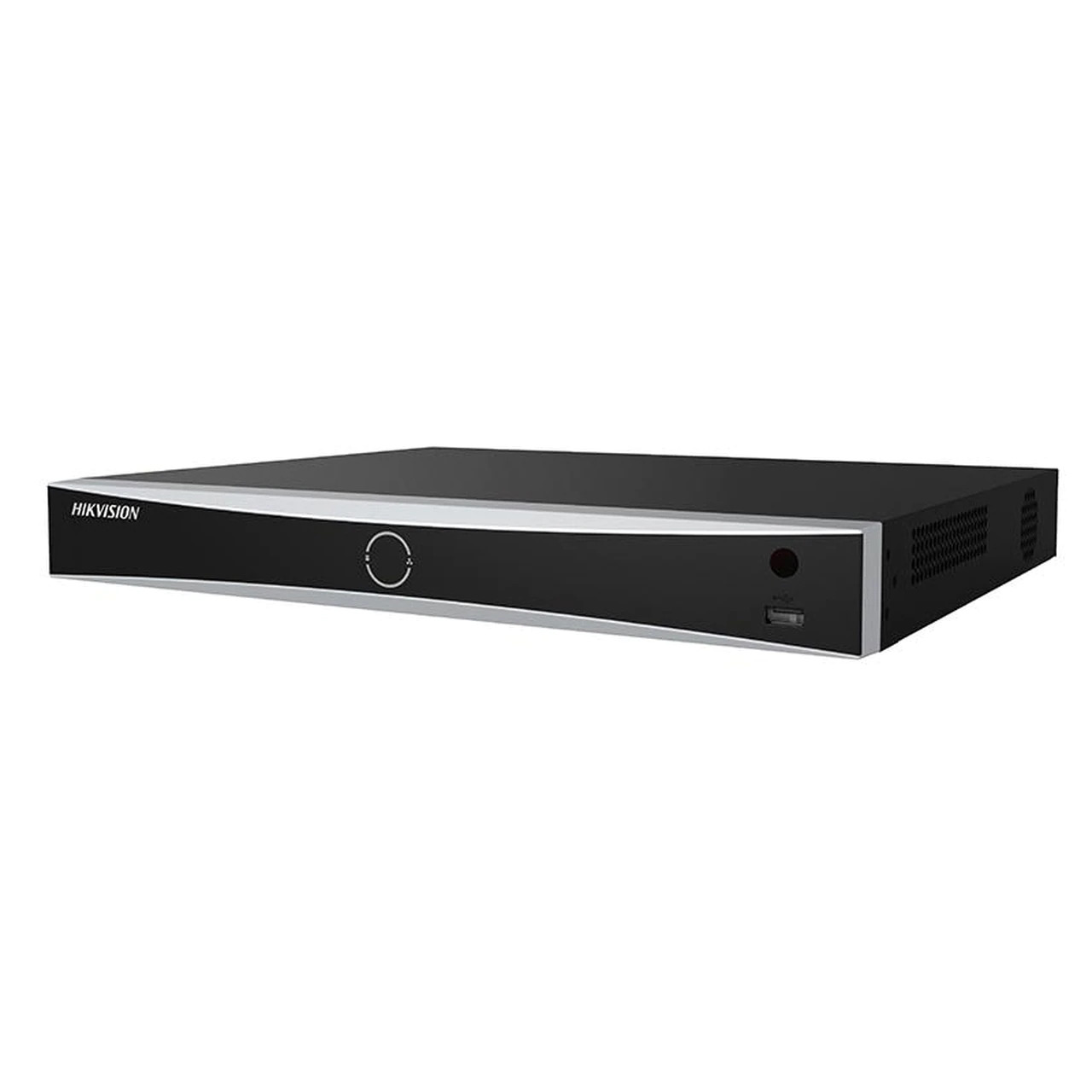

Hikvision DS-7608NXI-I2/8P/VPro
Hikvision DS-7608NXI-I2/8P/VPro AcuSeek VPro 4K 1U 8-Channel 8x PoE NVR – Network Video Recorder – Without HDD – Supports Face Recognition
SKU: DS-7608NXI-I2/8P/VPro
Categories: CCTV / Surveillance, Hikvision NVRs, IP Surveillance, NVRs
Tags: 32MP, 4K Resolution, 8-Channel, 8K, 8x PoE, AcuSeek, Artificial Intelligence, Face Recognition, H265, Hikvision, Network, Network Video Recorder, NVR, PoE
Hikvision DS-7608NXI-I2/8P/VPro AcuSeek VPro 4K 1U 8-Channel 8x PoE NVR – Network Video Recorder – Without HDD – Supports Face Recognition
Key Features:-
- H.265+/H.265/H.264+/H.264 video formats
- Intelligent analytics based on Guanlan Large-Scale AI Models
- Up to 8-ch AcuSeek and AcuSearch function
- Up to 8-ch facial recognition for face picture
- Up to 8-ch IP camera inputs
- Up to 32-ch 1080p decoding capability
- Hardware characteristics :-
-
-
- 1 x VGA port (max. 1080P resolution)
- 1 x HDMI port (max. 4K resolution) – Can be configured to display different sets of cameras on HDMI
- 2 x 3.5″ SATA HDD ports (max. 20TB HDD per port)
- 2 x USB ports (one front, one rear)
- 8 x PoE ports (10/100Mbps)
- 1 x LAN port (10/100/1000Mbps)
- 4 x Alarm input ports
- 1 x Alarm output port
- 1 x Audio RCA input port
- 1 x Audio RCA output port
-
-
Intelligent Analytics
- AI by NVR: Facial recognition
- AI by NVR and Camera: Facial recognition, perimeter protection, video structurization, AcuSearch, motion detection 2.0, ANPR, people counting, AcuSeek
- Engine: 2 engines. 1 is for face picture and AcuSearch. 1 is for AcuSeek
Facial Recognition
- Face Picture Library: Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 1 GB)
- Face Picture Comparison: 8-ch
- Facial Detection and Analytics: Face picture comparison, human face capture, face picture search
- Facial Detection and Analytics Performance: 4-ch human face capture (HD network camera, up to 8MP, H.264/H.265)
AcuSearch
- Performance: If the cameras support Hikvision AcuSense Technology and have enabled AcuSearch function, the NVR supports AcuSearch in all channels, capable of modeling 300,000 targets/day.
AcuSeek
- Performance: If the cameras support Hikvision AcuSense Technology and have enabled AcuSearch function, the NVR supports AcuSeek in all channels, capable of modeling 300,000 targets/day.
- Search Language: English
ANPR
- By Camera: All channels
- Vehicle Attributes: Plate number, license plate color, license plate type
- Plate Attributes: Vehicle brand, vehicle color, vehicle type
Video and Audio
- IP Video Input: 8
- Incoming Bandwidth: 96 Mbps
- Outgoing Bandwidth: 256 Mbps
- HDMI Output: 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1280 × 720/60 Hz
- VGA Output: 1920 × 1080/60Hz, 1280 × 720/60Hz
- Video Output Mode: HDMI/VGA independent output
- CVBS Output: NA
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Decoding
- Decoding Format: H.265, H.265+, H.264, H.264+, MPEG4
- Recording Resolution: 32MP/24MP/12MP/8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous playback: 8-ch
- Dual-Stream Recording: Support
- Live View Window Division: 1/4/6/8/9
- Aux Port Window Division: 1/4/6/8/9
- Stream Type: Video, Video & Audio
- Decoding Capability: Enable AI by NVR: 20-ch@1080p (30 fps); Disable AI by NVR: 32-ch@1080p (30 fps)
- Audio Compression: G.711ulaw,G.711alaw,G.722,G.726,MP2L2
Network
- Network Interface: 1* RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
- Interface: 8* RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power: ≤ 120W
- Standard: IEEE 802.3 af/at
Auxiliary Interface
- SATA: 2 SATA interfaces
- Capacity: Up to 20 TB capacity for each disk
- Serial Interface: NA
- Alarm In/Out: 4/1
- USB Interface: Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
General
- Power Supply: ≤ 120 W
- Consumption: ≤ 50W
- Working Temperature: -10℃～＋55℃
- Working Humidity: 10％～90％
- Chassis: 1U
- Dimension (W × D × H): 384 × 371 × 52 mm（15.12″ × 12.48″ × 2.03″）
- Weight: ≤ 4 kg (6.6 lb)
Certification
- Obtained Certification: CE, CB, REACH, WEEE, UKCA, RCM,IC,LOA,KC
- CE: EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
