Hikvision DS-7716NI-M4/16P

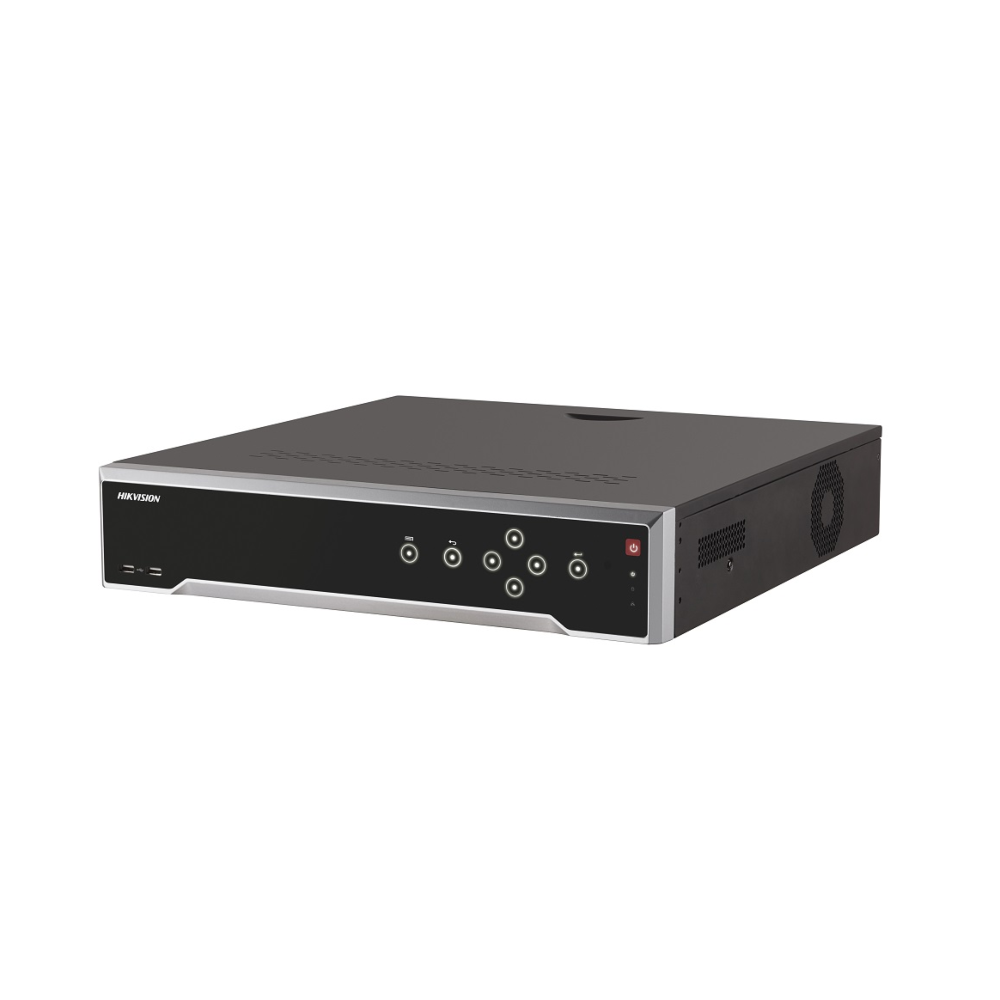

Hikvision DS-7716NI-M4/16P Ultra Series 1.5U 4K 8K 16-Channel 16x PoE NVR – Network Video Recorder – Rackmount – No HDD
SKU: DS-7716NI-M4/16P
Categories: CCTV / Surveillance, Hikvision NVRs, IP Surveillance, NVRs
Tags: 16-Channel, 16x PoE, 32MP, 8K, H265, Hikvision, Network, Network Video Recorder, NVR, PoE, Rackmount
Hikvision DS-7716NI-M4/16P Ultra Series 1.5U 4K 8K 16-Channel 16x PoE NVR – Network Video Recorder – Rackmount – No HDD
Key Features:-
- Third-party network cameras supported
- Up to 32MP resolution recording
- 2-ch HDMI & 1-ch VGA video Outputs
- HDMI1 at up to 8K (7680 x 4320) resolution
- HDMI2 at up to 4K (3840 x 2160) resolution
- VGA at up to 1080P resolution
- 16-ch network cameras can be connected with 256Mbps incoming bandwidth
- Up to 4x SATA interfaces, Plug & Play with up to 16x independent PoE network interfaces
- Dual-OS to ensure high reliability of system running
- Various VCA detection alarm and VCA search
- Supports H.265+ / H.265 / H264+ / H264 video formats
- Hardware characteristics :-
-
-
- 1 x VGA ports (max. 1080P resolution)
- 2 x HDMI ports – Can be configured to display different sets of cameras on HDMI2
- 4 x 3.5″ SATA HDD ports (max. 16TB HDD per port)
- 1 x eSATA port
- 3 x USB ports (two front, one rear)
- 16 x PoE ports (10/100Mbps)
- 1 x LAN port (10/100/1000Mbps)
- 16 x Alarm input ports
- 9 x Alarm output ports
- 1 x Audio RCA input port
- 1 x Audio RCA output port
-
-
Video And Audio
- IP Video Input: 16-ch – Up to 32 MP resolution – *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
- Incoming Bandwidth: 256 Mbps
- Outgoing Bandwidth: 256 Mbps
- HDMI 1 Output: 8K (7680 × 4320) / 30Hz, 4K (3840 × 2160) / 60Hz, 4K (3840 × 2160) / 30Hz, 2K (2560 × 1440) / 60Hz, 1920 × 1080 / 60Hz, 1600 × 1200 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz
- HDMI 2 Output: 4K (3840 × 2160) / 60Hz, 4K (3840 × 2160) / 30Hz, 2K (2560 × 1440) / 60Hz, 1920 × 1080 / 60Hz, 1600 × 1200 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz; *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
- VGA Output: 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- Video Output Mode: HDMI1/VGA simultaneous output, HDMI2/VGA independent output
- CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
- Decoding Format: H.265+ / H.265 / H.264+ / H.264
- Recording Resolution: 32MP /24MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF – *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32MP / 24MP IP video inputs.
- Synchronous Playback: 16-ch
- Decoding Capability: 2-ch @ 32MP (30 fps) + 2-ch @ 8MP (30fps) / 10-ch @ 8MP (30 fps) / 20-ch @ 4MP (30 fps) / 40-ch @ 1080p (30 fps)
- Dual-Stream Recording: Support
- Stream Type: Video, Video & Audio
- Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
Network
- Remote Connection: 128
- Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
- Network Interface: 1x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
- Interface: 16x RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power: ≤ 200 W
- Standard: IEEE 802.3 af/at
Auxiliary Interface
- eSATA: 1 eSATA interface
- SATA: 4 SATA interfaces
- Capacity: Up to 16 TB capacity for each HDD
- Serial Interface: 2x RS-485 (half-duplex), 1x RS-232
- Alarm In/Out: 16 / 9
- USB Interface: Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
General
- Power Supply: 100 to 240 VAC, 50 to 60 Hz
- Consumption: ≤ 15 W (without HDD and PoE off)
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10% to 90%
- Chassis: 19-inch rack-mounted 1.5U chassis
- Dimension (W × D × H): 445 × 400 × 75 mm ( 17.5″× 15.7″ × 3.0″)
- Weight: ≤ 5kg (without HDD, 11 lb.)
Certification
- FCC: Part 15 Subpart B, ANSI C63.4-2014
- CE: EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201; 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
