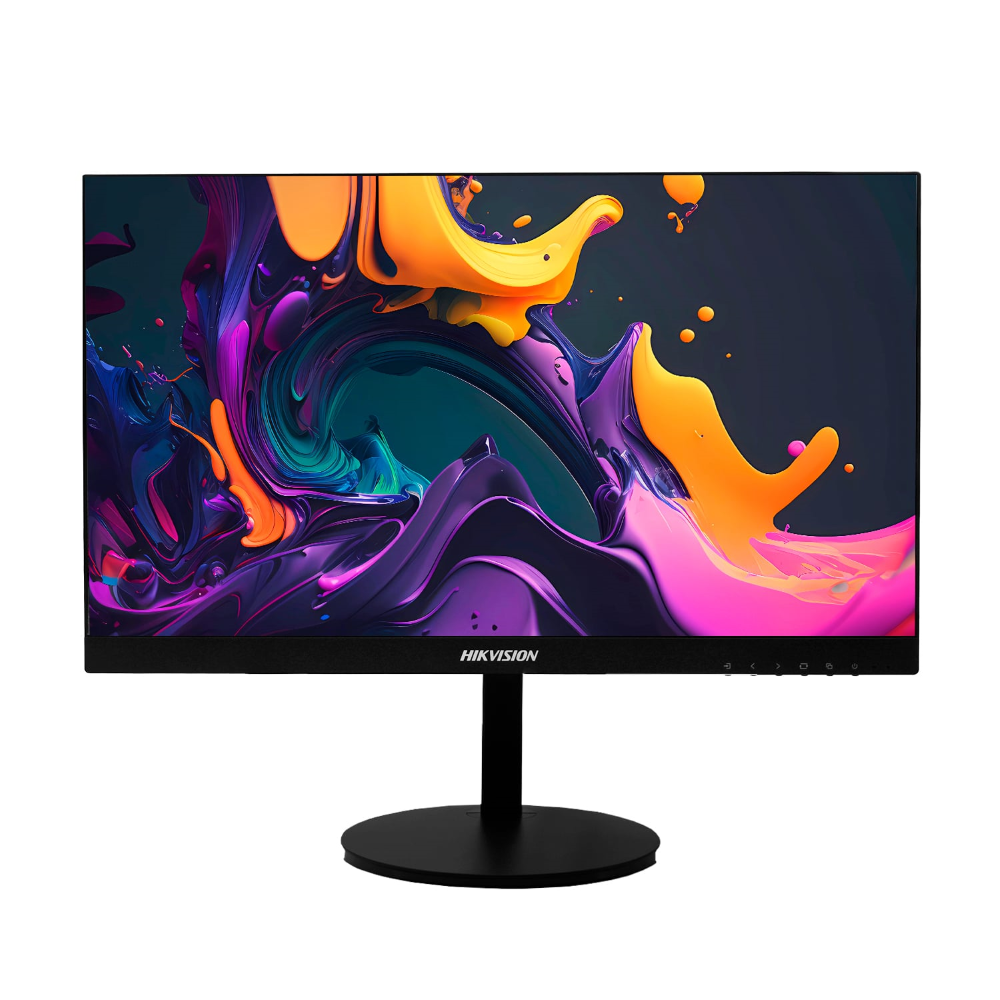

Hikvision DS-D5022F2-1V2 22″ (21.5″) 1080P LCD LED Monitor – HDMI + VGA – Low Blue Light – 100Hz Refresh Rate – Supports 75mm x 75mm VESA Mount

Key Features :-

  • VA technology, 178° ultra-wide view screen.
  • 8 bit LVDS FHD (1920 × 1080) display.
  • 100 Hz refresh rate, more fluid and life-like video
  • Ultra-thin device body with ultra-thin border for 3 sides.
  • 3D noise reduction.
  • Low blue light design for eye care.
  • Dual interface of HDMI and VGA.
  • Support VESA wall mount.

Hikvision Product-Link

Display

  • Screen Size: 21.45 inch
  • Active Display Area: 478.656 mm × 260.280 mm
  • Resolution: 1920 × 1080@60 Hz
  • Backlight: E-LED
  • Pixel Pitch: 0.0241 mm (H) × 0.241 mm (V)
  • Brightness: 250 cd/m²
  • Viewing Angle: 178° (H) / 178° (V)
  • Color Depth: 8-bit
  • Contrast Ratio: 4000 : 1
  • Response Time: 8 ms
  • Refresh Rate: Max. 100Hz , Typ. 60 Hz
  • Haze: Haze 25%, 3H
  • Reliability: 7 × 16 H
  • Color Gamut: 72% NTSC

Interface

  • Video & Audio Input: HDMI 1.4 × 1, VGA × 1
  • Video & Audio Output: Audio Out
  • Data Transmission Interface: None
  • Control Interface: None

Power

  • Power Supply: DC 12V, 2.0A
  • Power Consumption: ≤ 24 W
  • Standby Consumption: ≤ 0.5 W

Working Environment

  • Working Temperature: 0℃ to 40 ℃ (32 ℉ to 104 ℉)
  • Working Humidity: 10% to 90% RH (Non-Condensing)
  • Storage Temperature: -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
  • Storage Humidity: 10% to 90% RH

General

  • Casing Material: Plastic
  • VESA: 75 mm × 75 mm (4 – M4 × 6 mm)
  • Bezel Width: 2.38 mm (top/left/right), 21.55 mm (bottom)
  • Product Dimensions (W × H × D):
      • With Base: 493.26mm (W) × 393.45mm (H) × 185.74mm (D) mm
      • Without base: 493.26 (W) mm × 290.13 (H) mm × 42.35 (D) mm
  • Package Dimensions (W × H × D): 553 (W) mm × 354 (H) mm × 111 (D) mm
  • Net Weight: 2.0 ± 0.5 kg
  • Gross Weight: 3.2 ± 0.5 kg
  • Packing List: Monitor × 1, Base component × 1, Power adapter (12 V, 2.0 A) × 1, HDMI cable (1.5 m) × 1, User manual × 1, Multilingual manual × 1
DS-D5022F2-1V2_Datasheet

Data-sheet

User Manual
