Display Solutions, Interactive Touchscreen

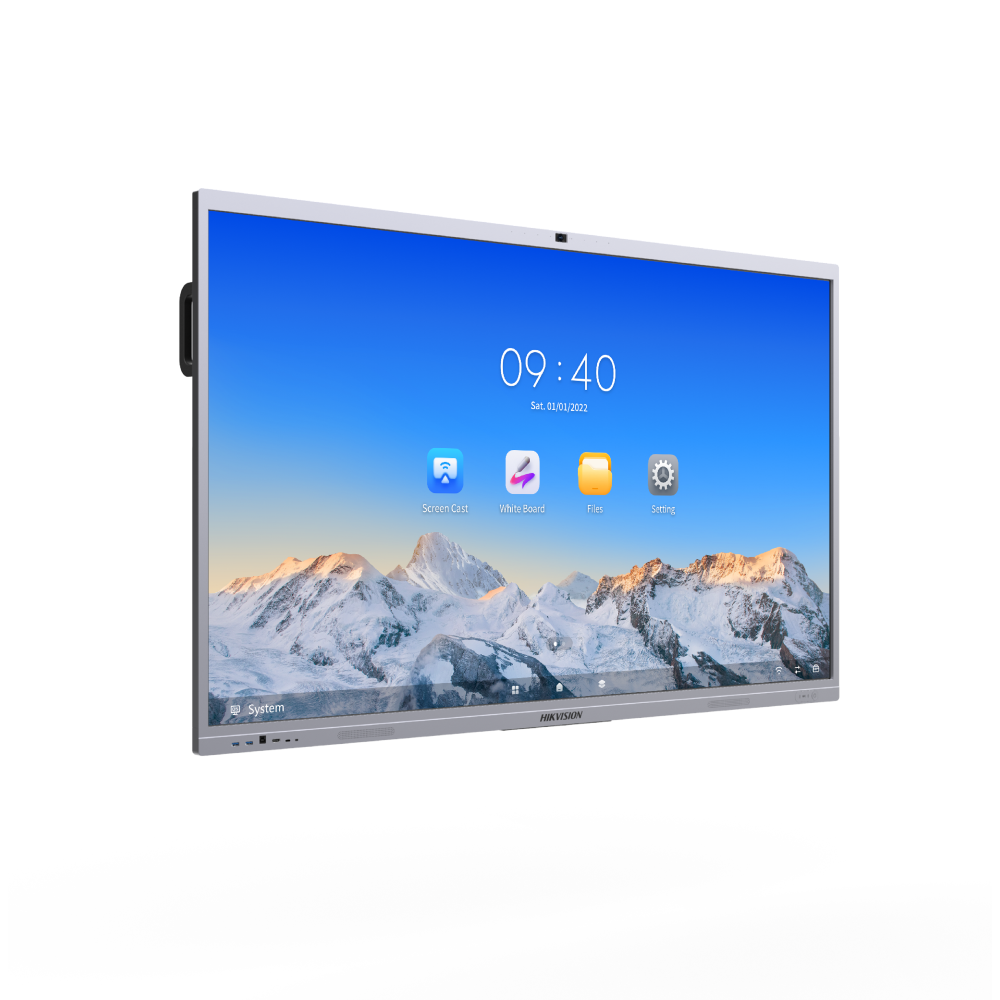

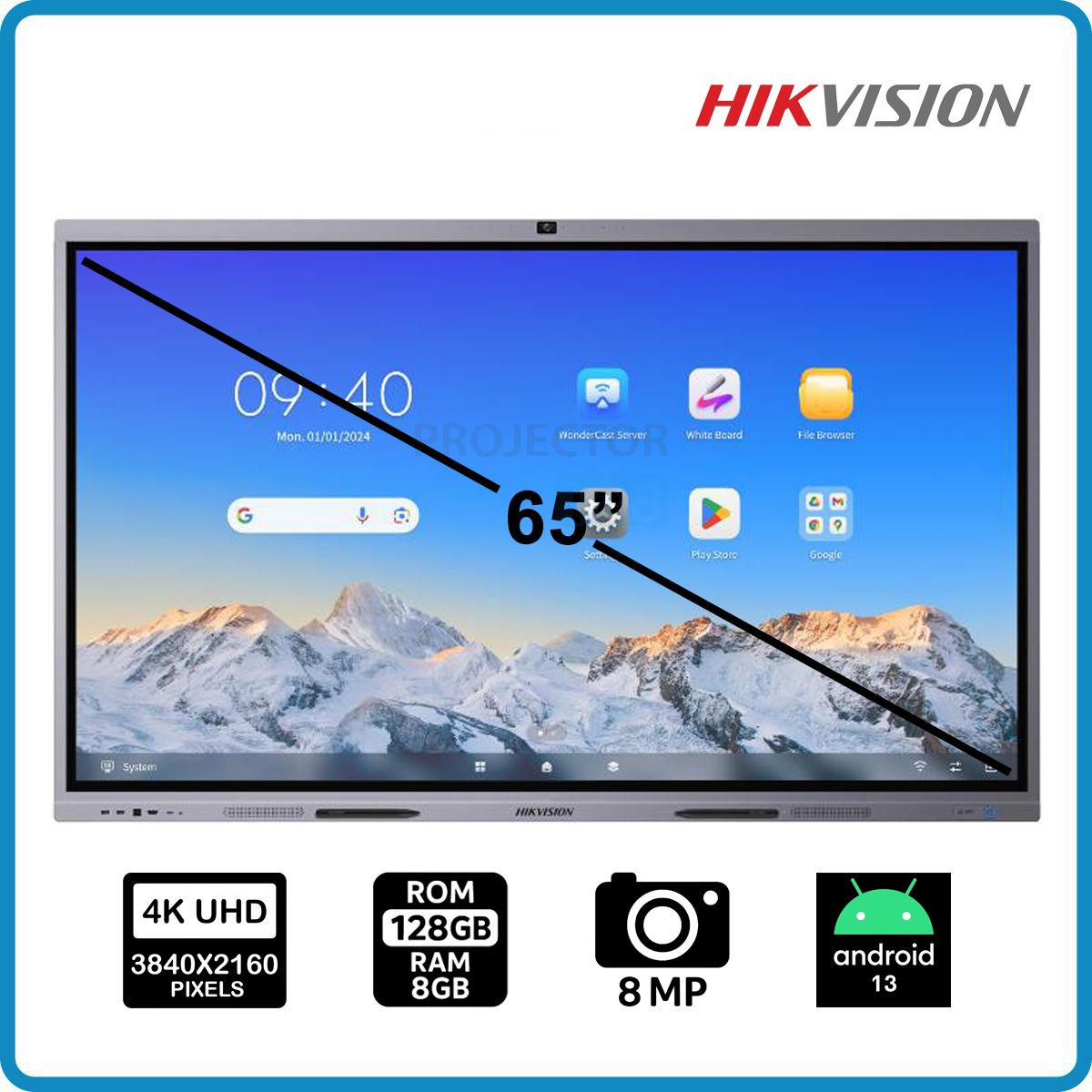

Hikvision DS-D5C65RB/B
Hikvision DS-D5C65RB/B WonderHub 65″ 4K Resolution Smart Interactive Touchscreen Display – Android 14 – Built-in 4K Camera – WiFi – Built-in Mic + Speaker For Video Conferencing – Supports Mirroring to Phones & Windows
SKU: DS-D5C65RB/B
Categories: Display Solutions, Interactive Touchscreen
Tags: 4K Resolution, 65 Inch, 65", Android, Built-in Mic, Camera, Hikvision, Interactive, Speaker, Touchscreen, Video Conference, WonderHub
Hikvision DS-D5C65RB/B WonderHub Ultra Series 65″ 4K Resolution Smart Interactive Touchscreen Display – Android 14 – Built-in 4K Camera – WiFi – Built-in Mic + Speaker For Video Conferencing – Supports Mirroring to Phones & Windows
Key Features :-
- UHD 4K display with resolution of 3840 × 2160.
- Anti-glare and anti-blocking design to ensure smooth interaction
- Dual systems of Android and Windows (Optional with OPS) saving cost and easy to use, video conference software are recommonded to run under Windows system.
- Quick response, at most 50-points touch control and smooth writing experience.
- Built-in network switch chip saves a network switch.
- All-in-one design with tempered glass and intelligent temperature control, making it environmental-friendly and safety-guaranteed, support blue light protection.
- EDLA Certified
Hikvision Wonderhub Ultra Series Brochure
More Info on Hikvision Ultra Series Interactive Flat Panels
Product Model
- Product Model: DS-D5C65RB/B
Display
- Screen Size: 65 inch
- Backlight: DLED
- Pixel Pitch: 0.124（H） × 0.372（V）mm
- Resolution: 3840 × 2160 @60 Hz
- Brightness: 400 cd/m² （Typ.）
- Color Depth: 10 bit
- Display Color: 1.07 G
- Response Time: 5 ms
- Panel Type: VA
- Contrast Ratio: 5000:1 (Static); 30,000:1 (Dynamic)
- Color Gamut: 72% NTSC (CIE1931) (Typ.)
- Refresh Rate: 60 Hz
- Viewing Angle: 178° (H) / 178° (V)
- Aspect Ratio: 16:9
- Surface Hardness: 9H (Pencil); 7 (Mohs)
- Surface Glass: Anti-Glare Glass
- Surface Haze: 25% Haze
- Glass Bonding Method: Zero Lamination
- Display Area: 1428.48mm x 803.52mm
- Working Duration: 7 × 16 H
- Transmittance: 88% ± 3
- Lifespan: 50,000 hours
Touch
- Type: Infrared Touch Screen
- Touch Point: Up to 50-point multi-touch
- Touch Response Time: ≤ 2 ms
- Minimum Touch Object: ≥ 1.5 mm (≥ 90% touching area)
- Touch Precision: ± 0.5 mm (≥ 90% touching area)
- Touch Resolution: 32768 × 32768
Built-in System
- Operation System: Android 14.0
- Memory: 8 GB
- Built-in Storage: 128 GB
- Processor: Quad-core Cortex-A76 × 4（2.4 GHz）and quad-core Cortex-A55 × 4（1.8 GHz）
- GPU: Mali-G610 MC4
- HDCP Version: 2.3
Camera
- Pixel: Pixel 48MP for Photos & 8 MP for Video
- Camera Function: Support intelligent switching between Android system, OPS, and PC.
- Field Angle: 93.4° (diagonal), 84.5° (horizontal), 54.1° (vertical)
- Distortion: ≤2.5%
- Camera Resolution Ratio: Up to 4K
Microphone
- Specification: Omni-directional 8-array layout
- Mic Function: Echo reduction and smart noise-cancellation
- Voice Distance: 12 m
- Sampling Rate: 32 K
- Mic Depth: 16 bit
Internal Function
- Loudspeaker: Built-in 2 × 20 W+25W loudspeaker;
- Bluetooth: Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1
- NFC: Support screen mirroring by Android phones
- Light Sensor: Yes
- Image Processing Technology: Support 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defogging；support shadow correction .
- Audio Processing Technology: Support dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection.
Interface
- Video & Audio Input: HDMI In (HDMI 2.0) × 3, VGA In × 1, DP In (DP 1.2) × 1, Audio In × 1
- Video & audio output: HDMI Out (HDMI 2.0) × 1, Audio Out × 1, SPDIF Out × 1
- Control interface: TOUCH-USB 3.0 × 3, RS232 × 1
- Network Interface: LAN (1000 Mbps) × 2; WIFI AP & Station, 2.4G/5G; WIFI 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
- Data Transmission Interface: USB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W)
Power
- Power Supply: 100 to 240 VAC, 50/60 Hz
- Standby Consumption: ≤ 0.5 W
- Average Consumption: < 107W
Working Environment
- Working Temperature: 0 °C to 40 °C (32 °F to 104°F)
- Working Humidity: 10%~90% RH
General
- VESA: 600 mm × 400 mm (4 × M8-25 mm)
- Product dimensions: 1491.88 mm × 910.6 mm × 82.3 mm
- Accessory: Wall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5M HDMI cable (2.0), power cable , bluetooth remote control.
- Package Dimensions (W × H × D): 1652 mm ×1052 mm ×213 mm
- Net Weight: 37.6 kg
- Gross Weight: 47.6 kg
