Hikvision DS-K1105EDKB-QR

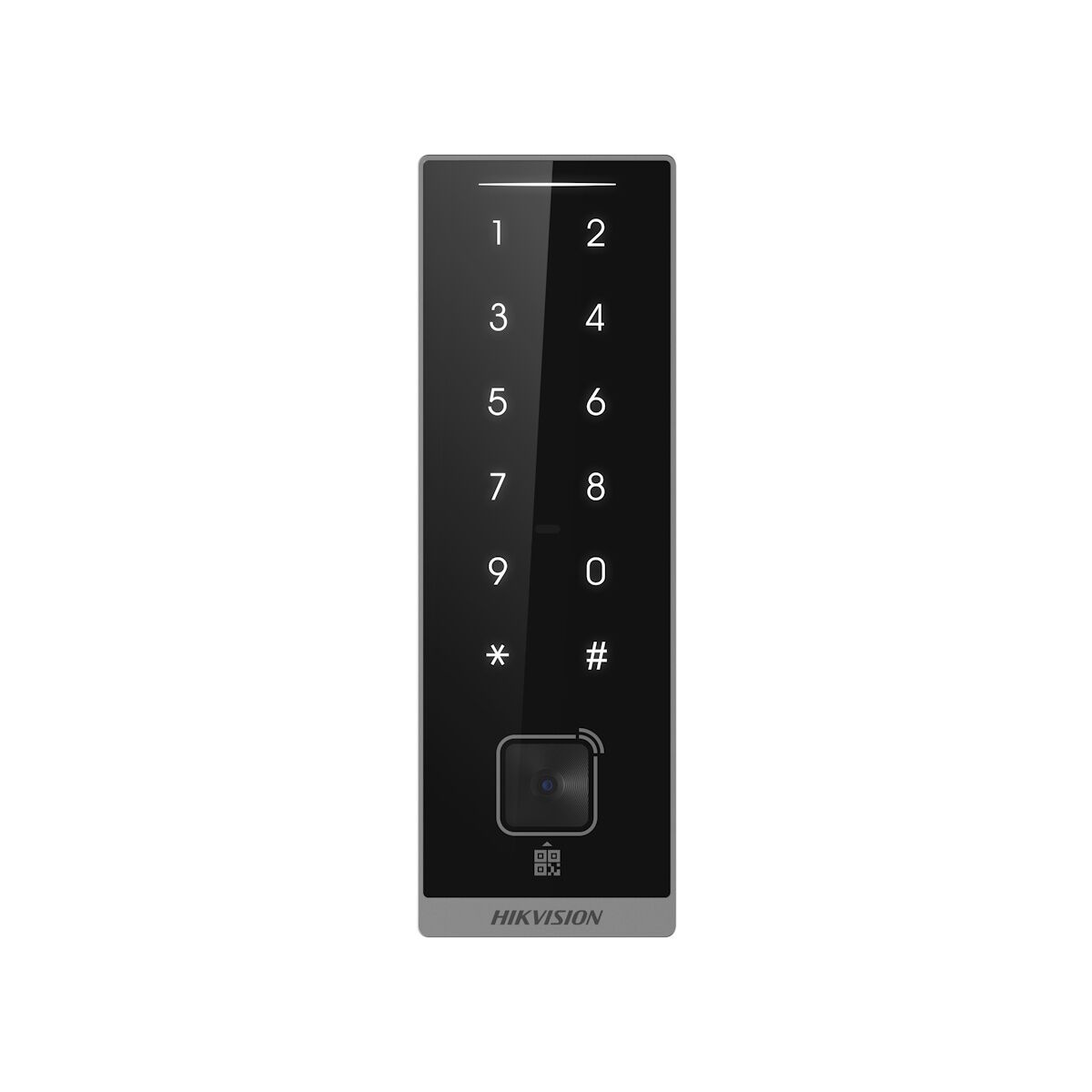

Hikvision DS-K1105EDKB-QR Pro Series Weatherproof Access Control Card Reader / QR-Code Reader – Supports RS485, Wiegand (W26/W34) & OSDP – Built-in EM & Mifare Reader & Touch Keypad – Supports Desfire – Built-in Buzzer – Built-in Blueooth
SKU: DS-K1105EDKB-QR
Categories: Access Control, Readers
Tags: Access Control, Bluetooth, Hik-connect, Hikvision, IP, IP66 Rated, Keypad, Mifare, OSDP, Pro Series, QR Code, RFID, RFID Reader, Touch Keypad, Weatherproof, Wiegand
Hikvision DS-K1105EDKB-QR Pro Series Weatherproof Access Control Card Reader / QR-Code Reader – Supports RS485, Wiegand (W26/W34) & OSDP – Built-in EM & Mifare Reader & Touch Keypad – Supports Desfire – Built-in Buzzer – Built-in Blueooth
Key Features:-
- Supports RS-485 protocol, Wiegand (W26/W34) protocol, and OSDP protocol
- Build-in M1 and EM card reading module (Frequency: 13.56 MHz&125 KHz)
- Supports Desfire card reading
- Built-in buzzer for identifying the reading status
- Supports online upgrade
- Supports multiple authentication methods such as card swiping, PIN, QR code, bluetooth, etc
- Supports touch panel for operation
- Supports occlusion detection, with bluetooth, it can realize door open via waving hands
Interface
- RS-485: Support
- Wiegand: Support
Authentication
- Card type: M1 card;EM card;DESfire card
General
- Power supply: 12 VDC
- Power consumption: ≤6W
- Working temperature: -40 ~65℃
- Working humidity: 0％–90％
- Dimensions: 139×46×21.2mm（5.47×1.81×0.83inch）
- Installation: Wall mounting
- Weight: 167.7g
- Buzzer: Support
Function
- Barcode recognition: Not support
- QR code recognition: Support
