Hikvision DS-K1107AMK

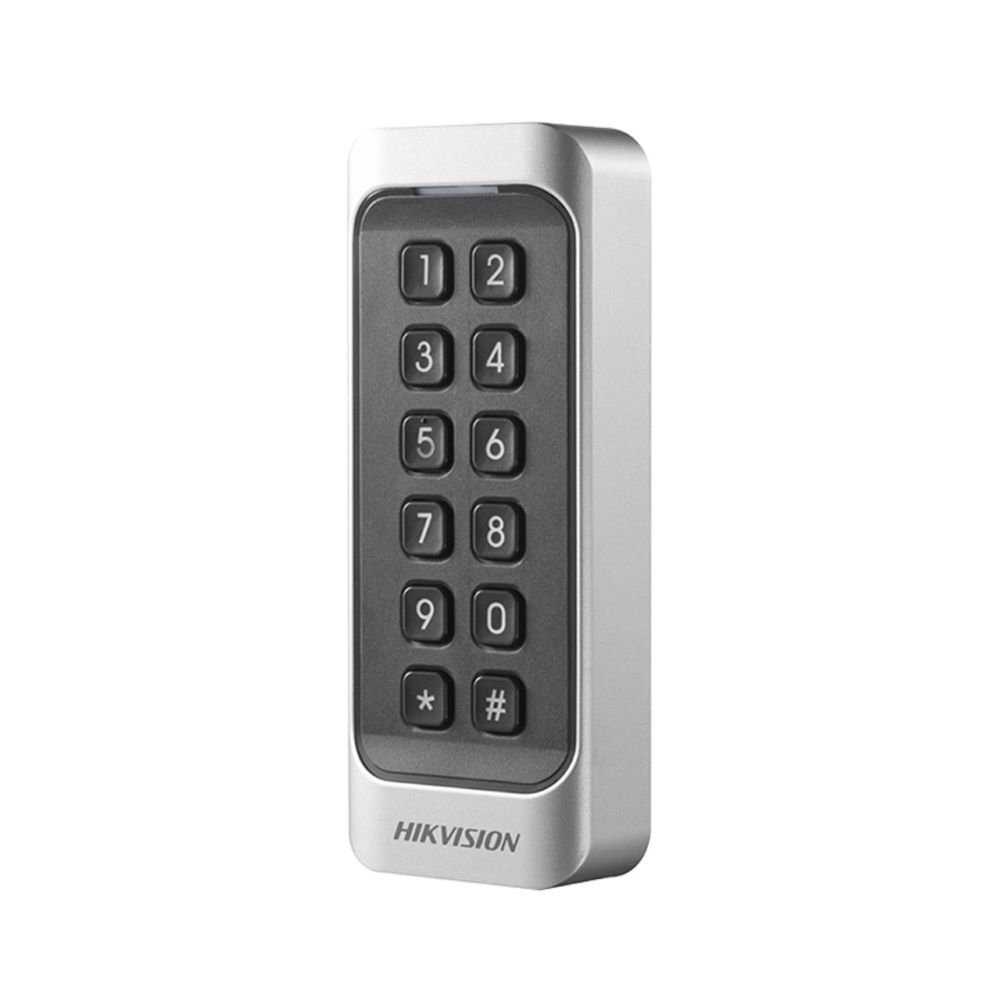

Hikvision DS-K1107AMK Pro-Series Weatherproof Access Control RFID Reader with Keypad – 13.56MHz Mifare – Supports RS-485 & Wiegand
Special Pricing Applicable To Items In ITPLUS Stock Only
SKU: DS-K1107AMK
Categories: Access Control, Clearance, Readers, Special Offers
Tags: 13.56MHz, Access Control, Hikvision, IP65 Rated, Keypad, Mifare, RFID, RFID Reader, Weatherproof, Wiegand
Hikvision DS-K1107AMK Pro-Series Weatherproof Access Control RFID Reader with Keypad – 13.56MHz Mifare – Supports RS-485 & Wiegand
Features :-
- Equipped with the 32-bit high-speed processor
- RS-485 and Wiegand (W26/W34) protocol, and OSDP protocol
- Build-in Mifare card reading module (Frequency: 13.56 MHz)
- Supports tampering alarm
- Built-in buzzer for identifying the reading status
- Online upgrade function
- Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader
- IP65-rated weatherproof
System
- Processor: 32-bit
Interface
- TAMPER: support
- RS-485: support
- Wiegand: support (set via DIP switch)
Authentication
- Card Reading Frequency: 13.56MHz
- Card Reading Distance: ≤50mm (≤1.97″)
Function
- ID Settings: via DIP Switch
General
- Indicator: Power Indicator, Status Indicator
- Power Supply: 12V DC
- Power Consumption: ≤2W
- Working Temperature: -20°C to +65°C (-4°F to 149°F)
- Working Humidity: 10% to 90% (Non Condensing)
- Protective Level: IP65
- Dimensions: 115mm × 44mm × 22mm (4.53” × 1.73” × 0.87”)
- Installation: Wall Mounting with Screws; Do Not Support Gang Box
- Keypad: Keypad with 12 Keys (0~9, *, #)
- Buzzer: support
