Access Control, Standalone
Hikvision DS-K1T673DWX

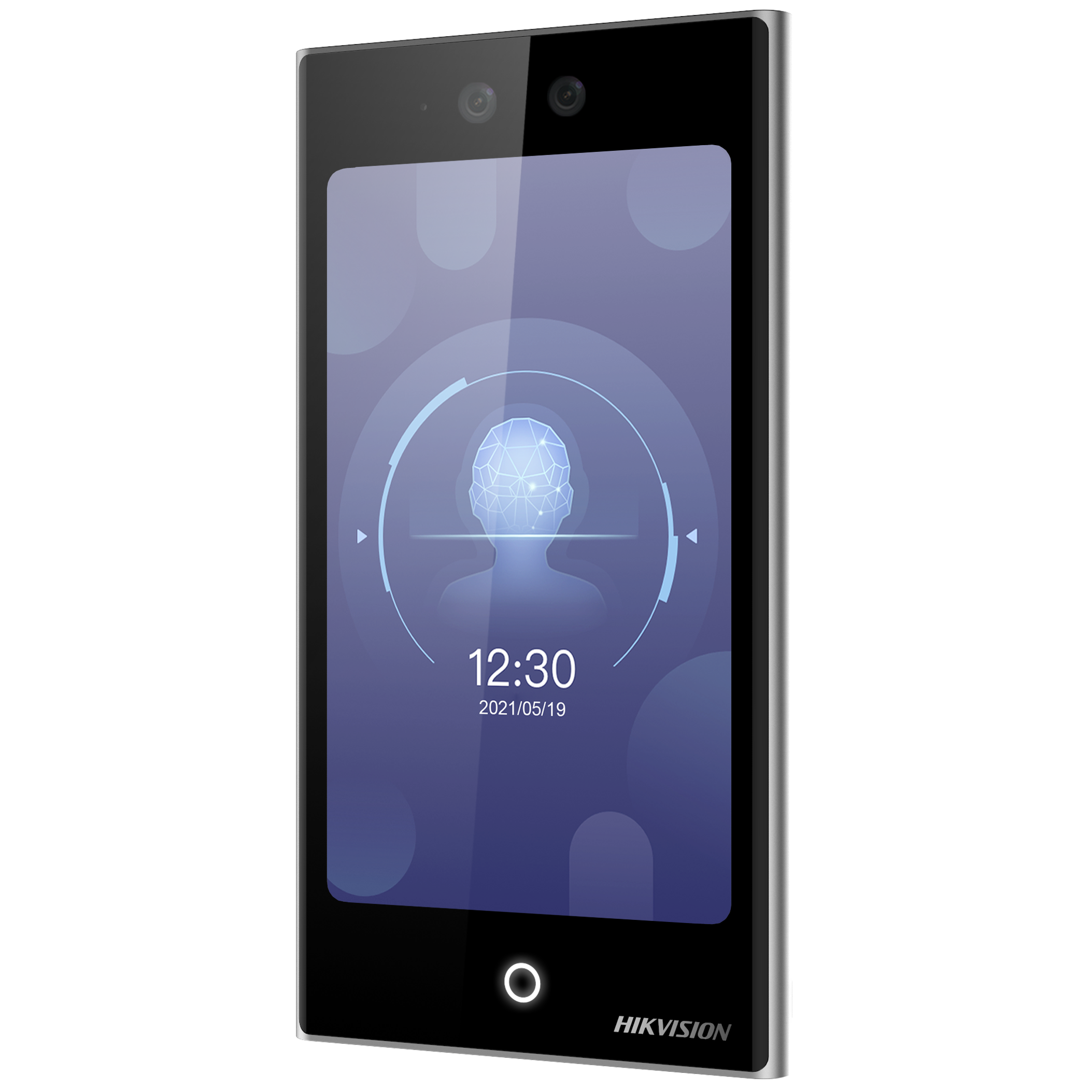

Hikvision DS-K1T673DWX Pro Series WiFi IP Face Recognition Access Control Unit – 7″ LCD Touchscreen – 2MP Camera – Built-in Mifare Card-Reader – Face Mask Detection
SKU: DS-K1T673DWX
Categories: Access Control, Standalone
Tags: 1080P, 13.56MHz, 2.4GHz Wireless, 2MP, 7 inch, 7", Access Control, Biometric Reader, Built-in Mic, Deep Learning, Face Capture, Face Detection, Face Recognition, Gate Automation, Gate Control, Hikvision, Intercom, IP, IP65 Rated, Mifare, MinMoe, Network, RFID, RFID Reader, Speaker, Time Attendance, Touchscreen, Weatherproof, WiFi, Wireless
Hikvision DS-K1T673DWX Pro Series WiFi IP Face Recognition Access Control Unit – 7″ LCD Touchscreen – 2MP Camera – Built-in Mifare Card-Reader – Face Mask Detection
Key Features:-
- 7-inch LCD touch screen,2 Mega pixel wide-angle lens
- Recognition distance: 0.3 to 3 m
- Face recognition duration ＜ 0.2 s/User
- Face recognition accuracy rate ≥ 99%
- Built-in M1 card, Felica card, and DESfire card reading module (Presents card on the screen to authenticate)
- Face mask detection
- 10,000 face capacity, 10,000 fingerprint capacity (With fingerprint module), 50,000 card capacity, and 150,000 event capacity
- Supports ISAPI, ISUP 5.0, TCP/IP (IPv4 and IPv6)
- Supports single person and multiple people (Up to 5 people) recognition
- Can be used for Time & Attendance Solution
- Hikvision Intercom Online Designer Tool
Display
- Screen size: 7 inch
- Operation method: Capacitive touch screen
- Type: IPS
Video
- Lens: 2
- Resolution: 2MP
- FOV: HFOV = 75.5°; VFOV = 41.5°; DFOV = 87°
Audio
- Audio quality: Built-in omnidirectional microphone
Network
- Wired network: Support
- Wi-Fi: Support, 2.4 G, 802.11b/g/n
Interface
- Network interface: 1* RJ-45, 10/100/1000 M self-adaptive
- Lock control: 1
- Exit button: 1
- Door contact input: 1
- Alarm input: 2
- Alarm output: 1
- TAMPER: 1
- RS-485: 1* RS-485 (Half duplex, HIKVISION)
- Wiegand: 1* Wiegand (Hik 26bit,Hik 34bit)
- USB: 1 (For Module)
- Audio output interface: 1 (3.5 mm)
Authentication
- Card type: M1 card; Felica card; DESfire card
General
- Power supply: 12 VDC to 24 VDC, 2 A
- Working temperature: -30 °C to 60 °C (-22 °F to 140 °F)
- Working humidity: 0 to 90% (no condensing)
- Protective level: IP65
- Dimensions: 110.5 mm × 209.2 mm × 24 mm (4.35″ × 8.24″ × 0.94″)
- Gross Weight: 1.06 kg (2.34 lb)
- Net Weight：0.57 kg (1.26 lb)
- Language: English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Japanese, Korean, Traditional Chinese, French and Turkish
Function
- Face anti-spoofing: Support
