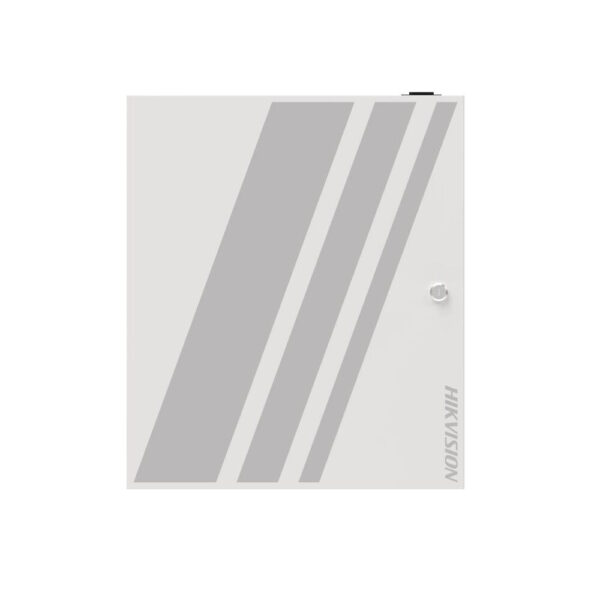

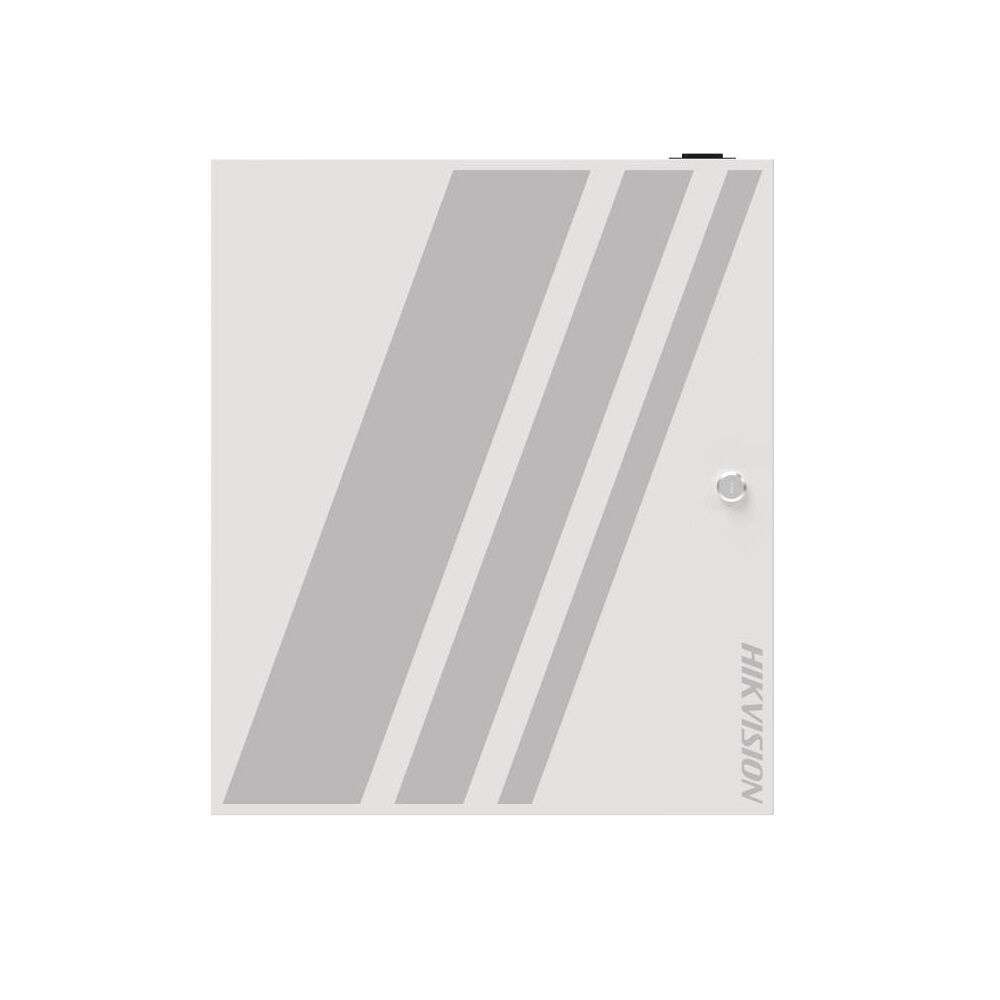

Hikvision DS-K2704X

Name: Hikvision DS-K2704X
SKU: DS-K2704X

Hikvision DS-K2704X Network IP 4-Door Access Control Unit in Lockable Enclosure – Web-Managed – Supports Up to 8x Alarm Inputs

This product is currently unavailable.

Hikvision DS-K2704X Network IP 4-Door Access Control Unit in Lockable Enclosure – Web-Managed – Supports Up to 8x Alarm Inputs

Supports 4 door control. It can extend up to 62 DS-K2M002X access modules, and up to 128 doors can be controlled
Downstream RS-485 redundancy wiring design to ensure communication stability. 5-ch downlink RS-485 interface supports two applications: 1. When 4-ch RS-485 communication, the 5th RS-485 can be used as a redundant application; 2. 4-ch RS-485 forms 2 groups of dual-bus loops with physical isolation. It is recommended that you do not have more than 16 access modules attached to each loop bus.
Web configuration management. All configurations can be realized via web without software application
Supports professional access control applications such as multi-door interlocking and anti-passback
Supports backup battery access. Charging and discharging are available
It has status indicators such as power supply, communication and operation, which is convenient for equipment health detection

System

Network interface: 1
Lock control: 4
Exit button: 4
Door contact input: 4
Alarm input: 8
Alarm output: 4
TAMPER: 1
RS-485: 7 – 2 for card reader + 5 for access modules (4 for communication, each interface can connect up to 16 access modules; 1 for redundancy)
Wiegand: 4 – standard 26/34 input, supports custom Wiegand settings
USB: 1* USB 2.0
Fire interface: 1

User capacity: 100,000
Fingerprint capacity: 10,000
Card capacity: 200,000
Event capacity: 600,000
Linked door capacity: Self: 4 doors; Extended: up to 128 doors (connected with 62 access modules)
Linked card reader capacity: 8* RS-485 card readers (OSDP protocol) and 4* Wiegand card readers

Indicator: 12 indicators – 1 for indicating power status, 1 for running status, 1 for wired network status, 5 for RS-485 status, and 4 for door status
Battery: Charge and discharge
Power supply: 100 VAC to 240 VAC
Power consumption: ≤ 102 W
Working temperature: -10 °C to 55 °C (14 °F to 131 ° F)
Working humidity: 0% to 90% (No condensing)
Installation: Wall mounting
Language: English, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (Europe), Spanish (South America), Italian, French, Dutch, Russian, Ukrainian, Portuguese (Europe), Portuguese (Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian
