Hikvision DS-K2708X

Name: Hikvision DS-K2708X
SKU: DS-K2708X

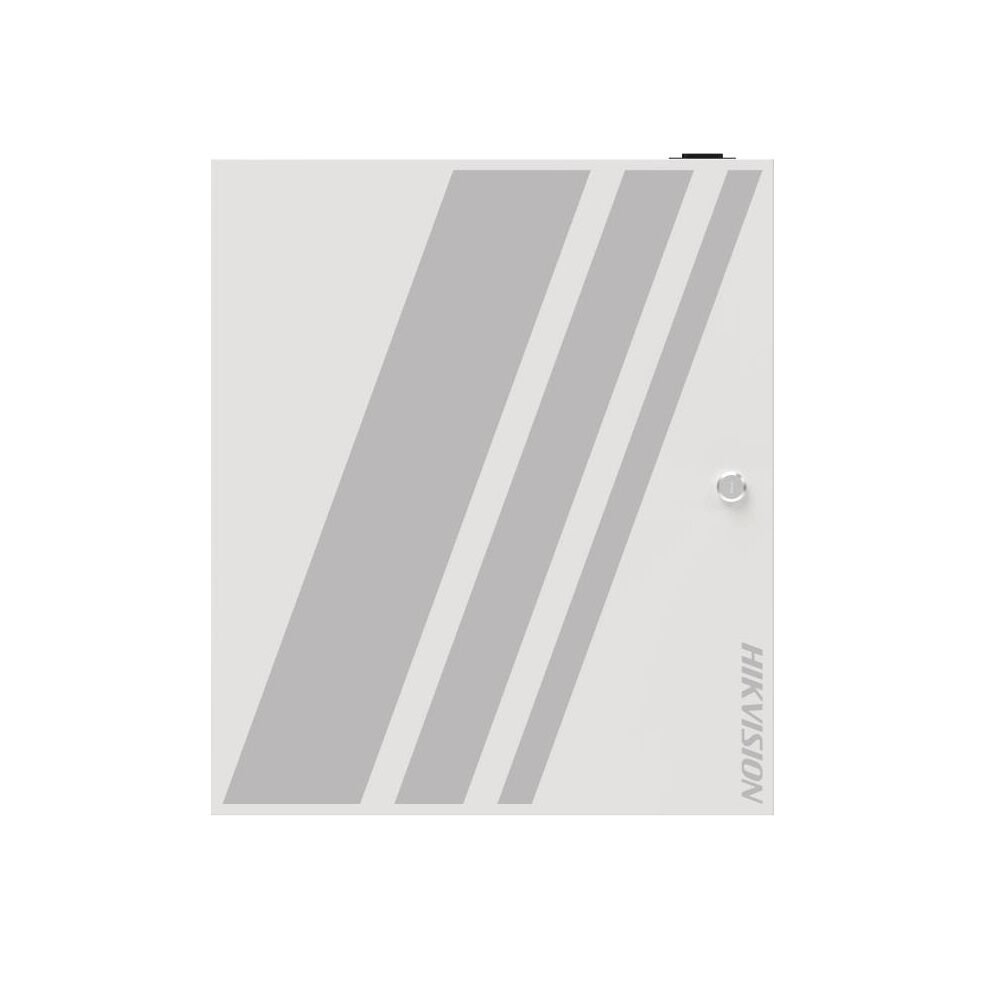

Hikvision DS-K2708X Network IP 8-Door Access Control Unit in Lockable Enclosure – Web-Managed – Supports Up to 16x Alarm Inputs

This product is currently unavailable.

Hikvision DS-K2708X Network IP 8-Door Access Control Unit in Lockable Enclosure – Web-Managed – Supports Up to 16x Alarm Inputs

Supports 8-door control. It is formed by 2 DS-K2M002X access modules, and one 4-doors access controller
Access controller: downstream RS-485 redundancy wiring design to ensure communication stability. 5-ch downlink RS-485 interface supports two applications: 1. When 4-ch RS-485 communication, the 5th RS-485 can be used as a redundant application; 2. 4-ch RS-485 forms 2 groups of dual-bus loops with physical isolation. It is recommended that you do not have more than 16 access modules attached to each loop bus. Access Module: supports 8-ch RS-485 interface for card reader connecting
Web configuration management. All configurations can be realized via web without software application
Supports professional access control applications such as multi-door interlocking and anti-passback
Supports backup battery access. Charging and discharging are available
It has status indicators such as power supply, communication and operation, which is convenient for equipment health detection
Supports up to 128 doors when cascading by RS-485 connection (Up to 62 access modules)
Supports up to 64 doors when cascading by protection-mode (Up to 32 access modules)

Network Interface: 1
Lock Control: 8, including 4 on access controller and 4 on access modules – Note: The cabinet contains 1 DS-K2704X(P) access controller and 2 DS-K2M002X access modules.
Exit Button: 8, including 4 on access controller and 4 on access modules – Note: The cabinet contains 1 DS-K2704X(P) access controller and 2 DS-K2M002X access modules.
Door Contact Input: 8, including 4 on access controller and 4 on access modules – Note: The cabinet contains 1 DS-K2704X(P) access controller and 2 DS-K2M002X access modules.
Alarm Input: 16, including 8 on access controller and 8 on access modules – Note: The cabinet contains 1 DS-K2704X(P) access controller and 2 DS-K2M002X access modules.
Alarm Output: 8, including 4 on access controller and 4 on access modules – Note: The cabinet contains 1 DS-K2704X(P) access controller and 2 DS-K2M002X access modules.
TAMPER: 1
RS-485: 15, including 7 on access controller and 8 on access modules
- 7 on access controller:- 2 for card reader, 5 for access modules (4 for communication, each interface can connect up to 16 access modules; 1 for redundancy)
- 8 on access modules: 4 for card reader, 4 for access controller
Wiegand: 8, including 4 on access controller and 4 on access modules – Note: The cabinet contains 1 DS-K2704X(P) access controller and 2 DS-K2M002X access modules.
USB: 1, USB 2.0
Fire Interface: 1

User Capacity: 100,000
Fingerprint Capacity: 10,000
Card Capacity: 200,000
Event Capacity: 600,000
Linked Door Capacity: 8, including 4 on access controller and 4 on access modules
Linked Card Reader Capaciry
- 16 RS-485 card readers (OSDP protocol) and 8 Wiegand card readers; 8 RS-485 card readers on the access controller and 8 on access modules (4 for each)
- 4 Wiegand card readers on the access controller and 2 on access modules

Indicator:
- DS-K2704X(P): 12 indicators, 1 for indicating power status, 1 for running status, 1 for wired network status, 5 for RS-485 status, and 4 for door status
- DS-K2M002X: 6 indicators, 1 for indicating power status, 1 for running status, 2 for RS-485 status, and 2 for door status
Battery: Charge and discharge
Power Supply: 100 VAC to 240 VAC
Power Consumption: ≤ 200 W
Working Temperature: -10 °C to 55 °C (14 °F to 131 ° F)
Working Humidity: 0% to 90% (No condensing)
Installation: Wall mounting
Language: English, Thai, Traditional Chinese, Indonesian, Vietnamese, Arabic, Spanish (Europe), Spanish (South America), Italian, French, Dutch, Russian, Ukrainian, Portuguese (Europe), Portuguese (Brazil), Serbian, Croatian, Bulgarian, German, Greek, Romanian
