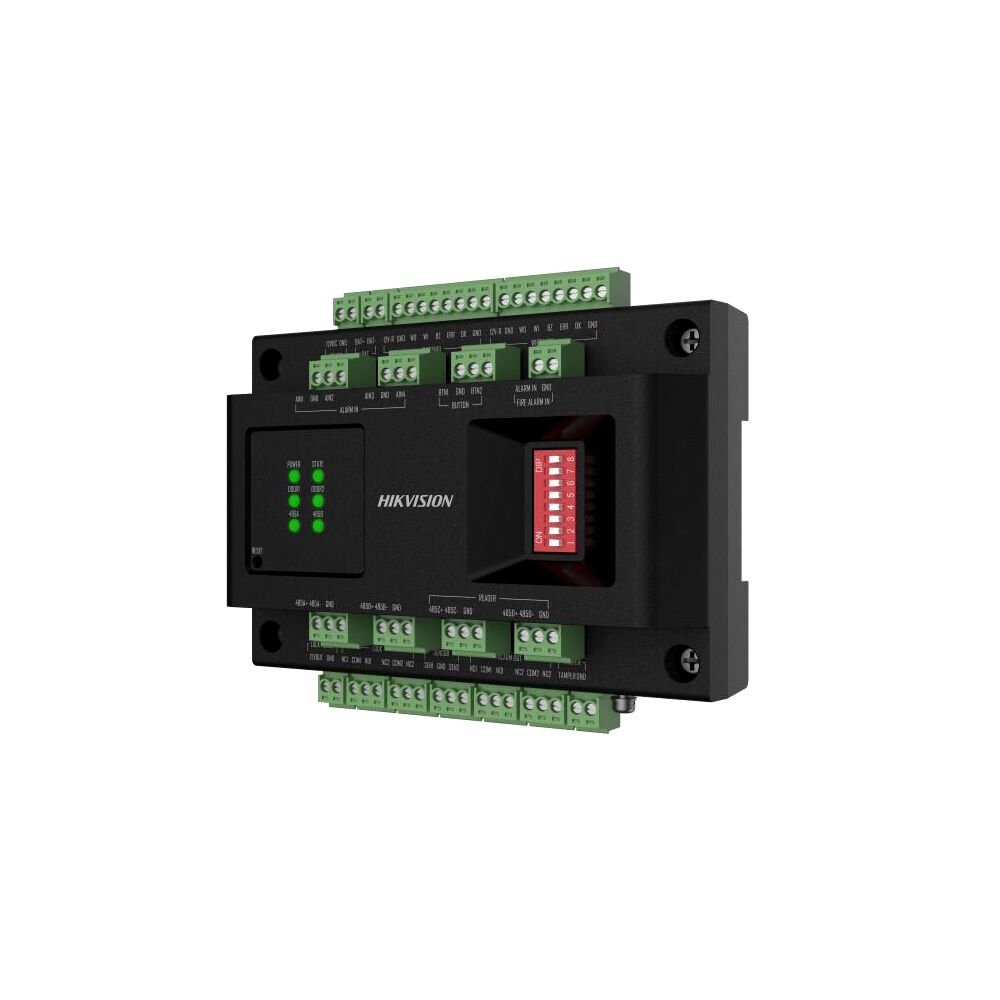

Hikvision DS-K2M002X
Hikvision DS-K2M002X 2-Door Access Control Add-On Module – DIN-RAIL – Web-Managed – Supports Up to 4x Alarm Inputs – Works as an Add-On Access Module for DS-K2708X Main Controller
SKU: DS-K2M002X
Categories: Access Control, Access Control Units & Panels
Tags: 2-Door, Access Control, Controller, DIN-RAIL, Hikvision, Network
Hikvision DS-K2M002X 2-Door Access Control Add-On Module – DIN-RAIL – Web-Managed – Supports Up to 4x Alarm Inputs – Works as an Add-On Access Module for DS-K2708X Main Controller
Key Features :-
- Supports 2 door control. It can connect with access controller via RS-485
- Connects with card reader via RS-485 (OSDP) or Wiegand
- Installs with guide rail
- Supports battery charging and discharging
- Supports indicators for indicating power status, communication status, running status, and door status
System
- Operating System: MCU
Interface
- Lock Control: 2
- Exit Button: 2
- Door Contact Input: 2
- Alarm Input: 4
- Alarm Output: 2
- TAMPER; 1
- RS-485: 4 ports – 2 for card reader, 2 for access controller
- Wiegand: – 2 ports – standard 26/34 input, supports custom Wiegand settings
Capacity
- Linked Door Capacity: 2 doors
- Linked Card Reader Capaciry: 4* RS-485 card readers (OSDP protocol) and 2* Wiegand card readers
General
- Indicator: 6 indicators, 1 for indicating power status, 1 for running status, 2 for communication status, and 2 for door status
- Battery: Charge and discharge
- Power Supply: 12 ± 15% VDC
- Power Consumption: ≤ 50 W
- Working Temperature: -10 °C to 55 °C (14 °F to 131 ° F)
- Working Humidity: 0% to 90% (No condensing)
- Installation: Installation with guide rail
Function
- Configuration Via Web Browser: Support via access controller
- Multi-Factor Authentication: Support via access controller
- First Person In: Support via access controller
- Multi-Door Interlocking: Support via access controller: supports 32 groups (32 doors each)
