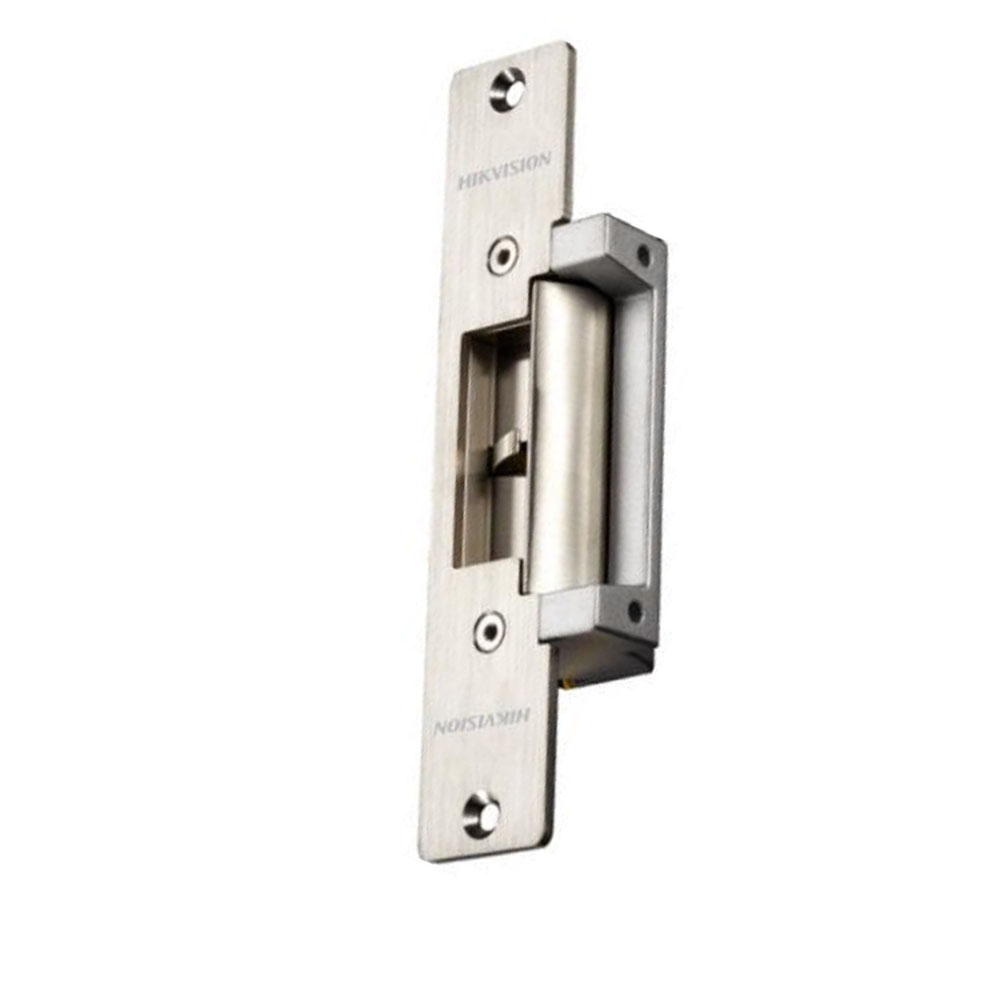

Hikvision DS-K4G100
Hikvision DS-K4G100 Electric Strike Lock – Fail-Safe and Fail-Secure Selectable – Stainless Steeel – Supports Up to 800Kgs Force
SKU: DS-K4G100
Categories: Electronic Locks, Locks, Strike Locks & Accessories
Tags: Access Control, Electric Strike Lock, Fail-safe, Fail-secure, Hikvision, Lock
Hikvision DS-K4G100 Electric Strike Lock – Fail-Safe and Fail-Secure Selectable – Stainless Steel – Supports Up to 800Kgs Force
Key Features :-
- Fail-secure and fail-safe selectable
- Material of latch: US304 stainless steel | Material of plate: wire-drawing on the surface
- The magnetic lock supports static linear thrust of 800 kg (1764 lb)
- 100,000 times usage of the electromagnetic coil when powering on
- Depth of the latch groove: 15 mm
- Strong suction which protects the door from forced opening when the door is locked
- Double insulation
General
- Power Supply: 12VDC, 320 mA/24 VDC, 160 mA ± 15%
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 0 to 95% (non-condensing)
- Dimensions: 165 mm × 43.7 mm × 35 mm (6.5″ × 1.7″ × 1.4″)
- Weight: 0.4 kg (0.9 lb)
- Material: Latch: stainless steel
- Thrust: Max. 800 kg (1764 lb)
- Door Type: Wooden door, metal door, PVC door
- Signal Output: Dry contact signal output; NO output while locking and NC output while unlocking
