Hikvision DS-K4T100

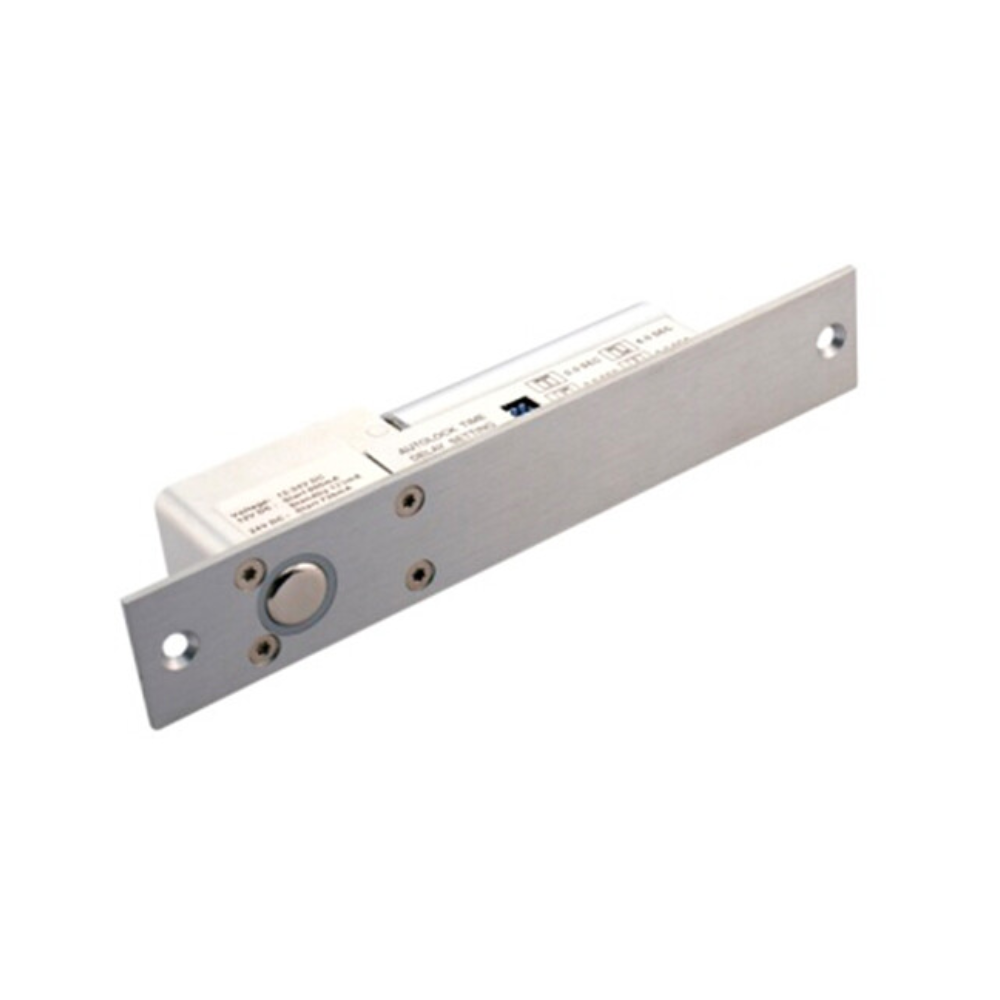

Hikvision DS-K4T100 Electric Drop-Bolt Lock – Stainless Steel – 12VDC Powered – Fail-safe / Fail-secure – Monitored
SKU: DS-K4T100
Categories: Drop Bolts & Accessories, Electronic Locks, Locks
Tags: Access Control, Drop-Bolt, Dropbolt, Fail-safe, Fail-secure, Hikvision, Lock
Hikvision DS-K4T100 Electric Drop-Bolt Lock – Stainless Steel – 12VDC Powered – Fail-safe / Fail-secure – Monitored
Key Features :-
- Electric bolt, polished and brushed stainless steel, support thrust of 800kg
- Working current: 900mA(Startup current), 100mA (standby), 12VDC + 10%
- Capable of 500,000 locking operations
- Suitable for wooden door, glass door, metal door and fireproof door
- Signal output of door lock status
General
- Power Supply: 12VDC +10%, 900 mA (startup current), 100 mA (standby)
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 0 to 95 % (relative humidity)
- Dimensions: Lock Body (L × W × H): 205×35×40mm (8.07 × 1.38 × 1.57″); Armature Plate (L×W×H): 90 × 25 × 2 mm (3.54 × 0.98 × 0.07); Bolt: 16 mm × 16 mm (0.63 × 0.63)”
- Material: Bolt: polished and brushed stainless steel
- Thrust: 800 kg
- Door Type: Wooden door, glass door, metal door, fireproof door
- Signal Output: Signal output NC, COM contact of door status
- Magnetic Induction Distance: 8 mm (0.31″)
- Delay Duration: 0/3/6/9 s Optional
