Hikvision DS-K7P04

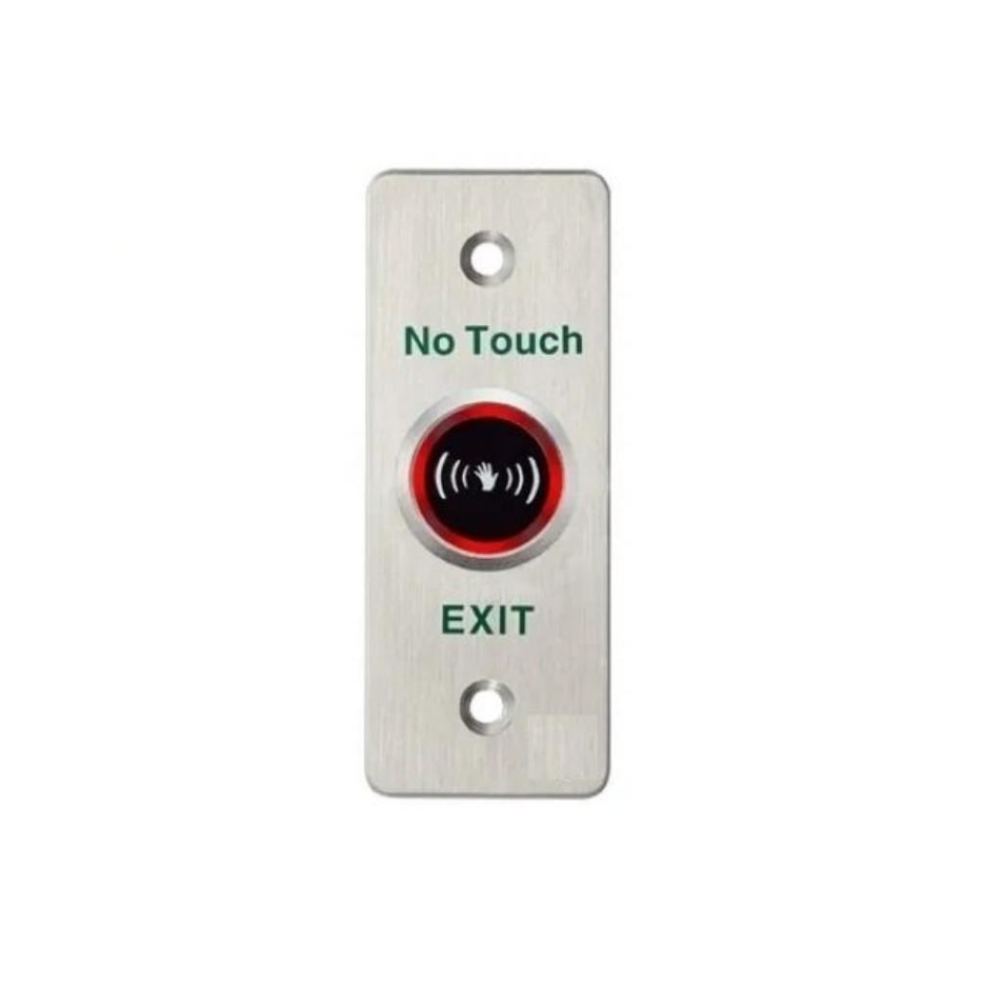

Hikvision DS-K7P04 Touchless / No Touch Exit / Door Release Button – Slimline
SKU: DS-K7P04
Categories: Access Control, Access Control Accessories
Tags: Access Control, Door Release, Hikvision, Press to Exit, Touch to Exit
Hikvision DS-K7P04 Touchless / No Touch Exit / Door Release Button – Slimline
Key Features :-
- Dimension (L × W × H): 90 × 35 × 37.7mm (3.54×1.38×1.48″).
- Input Voltage: 30V DC
- Panel: Stainless steel
- Working Temperature: -20 °C to 50 °C (-4 °F to 122 °F)
- Time Delay: 1 to 25 s (adjustable)
- LED Indicator Status: Green/red LED indicates working/standby
General
- Working temperature: -20 °C to 50 °C (-4 °F to 122 °F)
- Working humidity: 0 to 95% (relative humidity)
- Dimensions: 90 mm × 35 mm × 37.7 mm (3.54″ × 1.38″ × 1.48″)
- Weight: 0.18 kg (0.40 lb)
- Material: Panel: stainless steel
- Power supply: 30 VDC, 1 A
- Door type: All kinds of narrow doorframes
- Signal output: NO/NC/COM contact
- Aging Test: Already passed 1 million times aging test
Exit Button/General
- Current rating: 1 A@30 VDC
- Output contact: NO/NC/COM contact
- Aging test: Already passed 1 million times aging test
- Suitable door: All kinds of narrow doorframes
