Name: Hikvision DS-KABD8003-RS1/S
SKU: DS-KABD8003-RS1/S

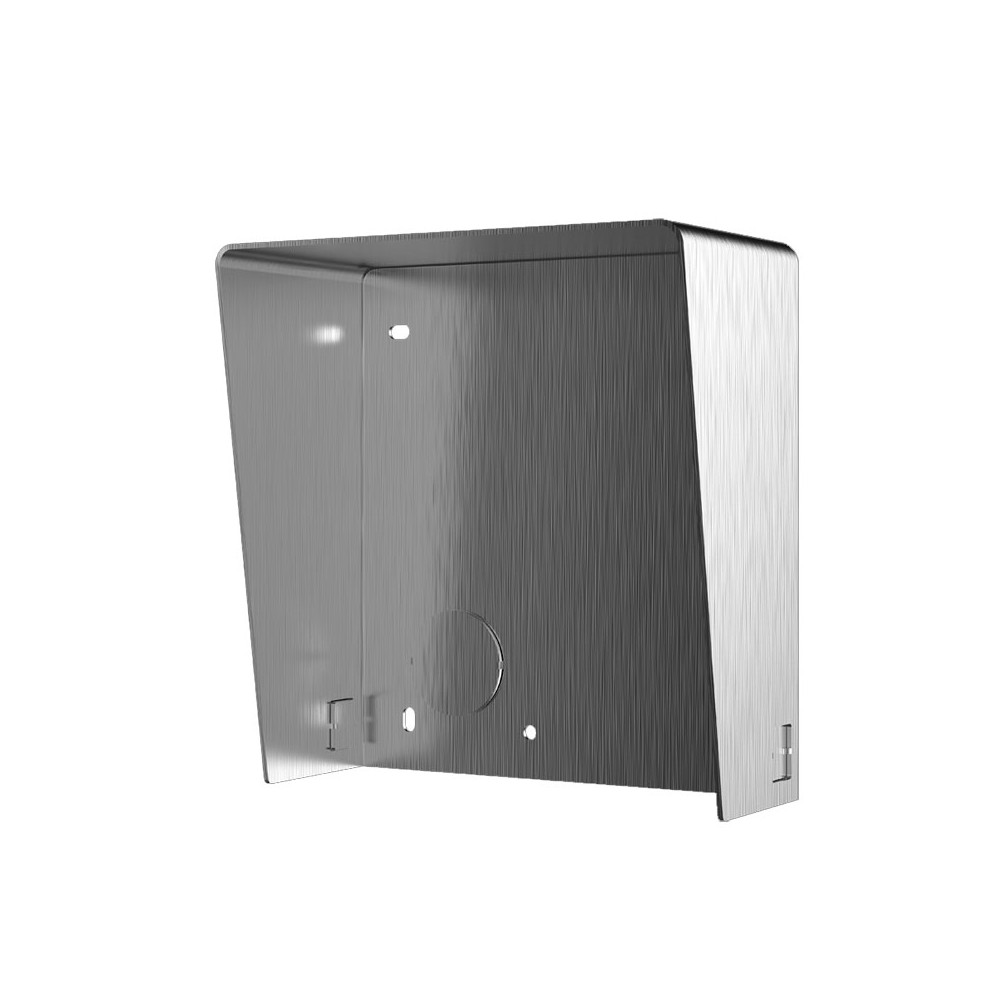

Hikvision DS-KABD8003-RS1/S Single-module Surface-mount Weatherproof Rain-shield Unit – Stainless-Steel

Convenient design available for the 1 module surface mounting of the modular door station (DS-KD8003-IME1 or DS-KD8003-IME2)
Material: Stainless Steel
Hikvision Intercom Online Designer Tool

Parameters

Working Temperature: -40° C to +60° C (-40° F to 140° F)
Working Humidity: 10% to 95%
Weight: 298.9g
Dimension (W × H × D): 122x 116.4×58 mm (4.80″ x 4.58″ x 2.28″)
Installation:
- 1. Paste the installation Sticker 1 onto the wall. Make sure the sticker is placed leveled via measuring with the gradienter. Drill 4 holes align to the screw holes on the sticker. The suggested size of hole is 6 (diameter) × 25 (depth) mm.
- 2. Remove the sticker and insert the expansion sleeves into the screw holes. Fix the mounting frame and protective shield onto the wall with 4 expansion bolts.
- 3. Connect the cables to the corresponding interfaces of the main unit and insert it into the frame.
- 4. Use the hexagon wrench in the package fix the cover onto the frame.
Material: SECC
