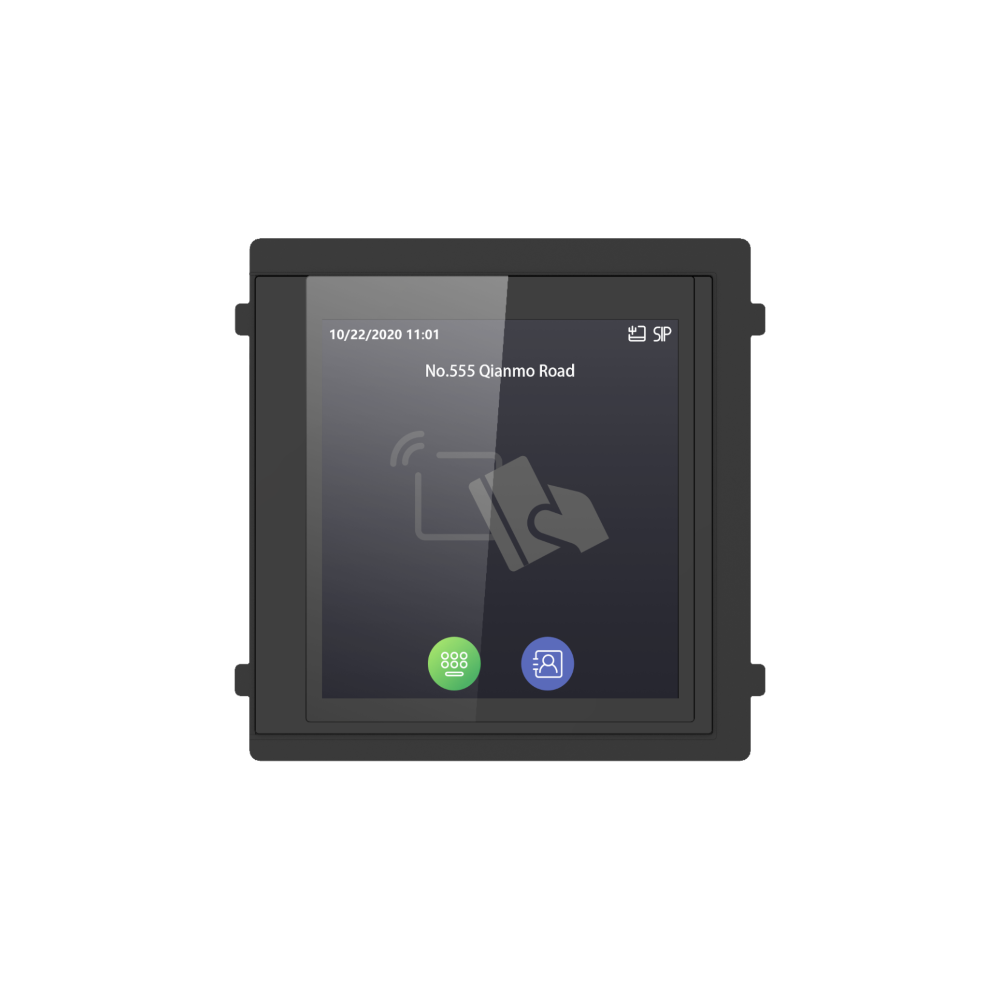

Hikvision DS-KD-TDM Intercom Gen 2 Weatherproof 4″ Touch Display Module with Built-in Mifare Card Reader
SKU: DS-KD-TDM
Categories: Hikvision 2-Wire IP Video Intercoms, Hikvision IP Video Intercoms, Hikvision Standard IP Video Intercoms, Hikvision Video Intercoms, Video Intercoms
Tags: Display, Hikvision, Intercom, Mifare, RFID, RFID Reader, Touchscreen, Video Intercom, Weatherproof
Hikvision DS-KD-TDM Intercom Gen 2 Weatherproof 4″ Touch Display Module with Built-in Mifare Card Reader
Key Features :-
- Modular door station Touch & Display module, needs mounting bracket
- 4 inch touch screen, IP65, IK8
- Dial number display, pin code & card unlock, contact list & advertisement display
- Stores and searches contact list
- Multiple languages
- Hikvision Intercom Online Designer Tool
Note: We highly recommend you upgrade the firmware of this device when installing and configuring it first time, using the product-link as per below
System Parameters
- Operating System: Linux
- ROM: 32MB
- RAM: 128MB
Display Parameters
- Screen Size: 4-inch
- Type: IPS touch screen
- Resolution: 480 x 480
- Brightness: 500 cd/m2
Audio Parameters
- Audio Compression Standard: /
- Audio Input: /
- Audio Output: Buzzer
- Audio Quality: /
- Volume Adjustment: /
- Power Output: /
Network Parameters
- Wireless Network: Only AP mode
Authentication
- Card Reading Frequency: 13.56 MHz
- Card Reading Distance: 2cm
- Card Type: Mifare card
Device Interfaces
- TF Card: Reserved
- DIP Switch: 8 bits
- Cascade Interface: 2
General
- Installation: Surface / flush
- Protective Level: IP65, IK8
- Working Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
- Working Humidity: 10% to 95% (no-condensing)
- Dimensions: 100 mm × 100 mm × 35 mm (3.94″ × 3.94″ × 1.38″)
- Power Supply: 12 VDC, supplied by the main module
- Power Consumption: ≤ 4 W
- Language: English, French, Portuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek
