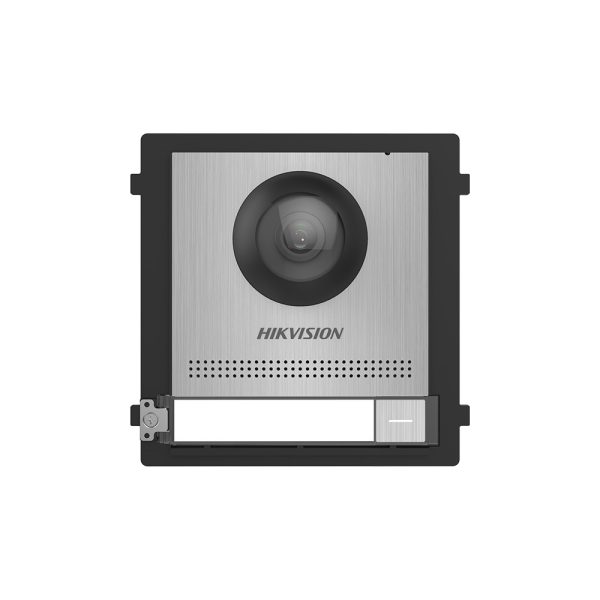

Hikvision DS-KD8003-IME2/S

Name: Hikvision DS-KD8003-IME2/S
SKU: DS-KD8003-IME2/S

Hikvision DS-KD8003-IME2/S 2-Wire IP Video Intercom Outdoor Station Camera Module – Stainless Steel – 2MP 1080P Ultra Wide Angle Fisheye Camera

SKU: DS-KD8003-IME2/S Categories: Clearance, Hikvision 2-Wire IP Video Intercoms, Hikvision IP Video Intercoms, Hikvision Video Intercoms, Special Offers, Video Intercoms Tags: 1080P, 2-Wire, 2MP, Camera, Fisheye, Gate Automation, Gate Control, Hikvision, Intercom, IR, Network, Video Intercom, Weatherproof

Hikvision DS-KD8003-IME2/S 2-Wire IP Video Intercom Outdoor Station Camera Module – Stainless Steel – 2MP 1080P Ultra Wide Angle Fisheye Camera

Features:-

Two-pin wire for power supply and network access
Access control function
Noise suppression and echo cancellation
H.264 video compression
Low illumination
Tampering alarm
Fisheye camera with IR supplement light
Supports sub-modules access (max. 8)
Nametag customization
Works with all standard Hikvision IP Gen-2 Intercom Modules
Hikvision Intercom Online Designer Tool

Note: We highly recommend you upgrade the firmware of this device when installing and configuring it first time, using the product-link as per below

Hikvision Product-Link

Display Parameters

Size: N/A
Operation Method: Physical button
Type: N/A

Video Parameters

Supplement Light: IR supplement
Lens: 1
FOV: Horizontal 180°, vertical 96°
Pixel: Main stream: 1920 × 1080, (720p configurable)͖; sub stream: 720 × 480

Audio Parameters

Audio Quality: Noise suppression and echo cancellation

Capacity

Sub Door Station Capacity: 16

Network Parameters

Communication Protocol: TCP/IP, RTSP
Wired Network: Two-wire transmission
Wi-Fi: N/A
Bluetooth: N/A

Device Interfaces

Network Interface: 0
Exit Button: 2
Lock Control: 2
Door Contact Input: 2
Power Interface: 1

General

Button: 1
Installation: Wall mounting
Protective Level: IP65
Power Supply Method: 24 VDC two-wire power supply (< 16 W) or 12 VDC independent power supply (<20 W)
Working Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
Working Humidity: 10% to 95%
Dimensions: 98 mm × 99.8 mm × 43.9 mm (3.86″ × 3.93″ × 1.73″)
Battery: N/A
Application Environment: Outdoor
Power Consumption: 24 VDC two-wire power supply (≤16 W) or 12 VDC independent power supply 20 W)
