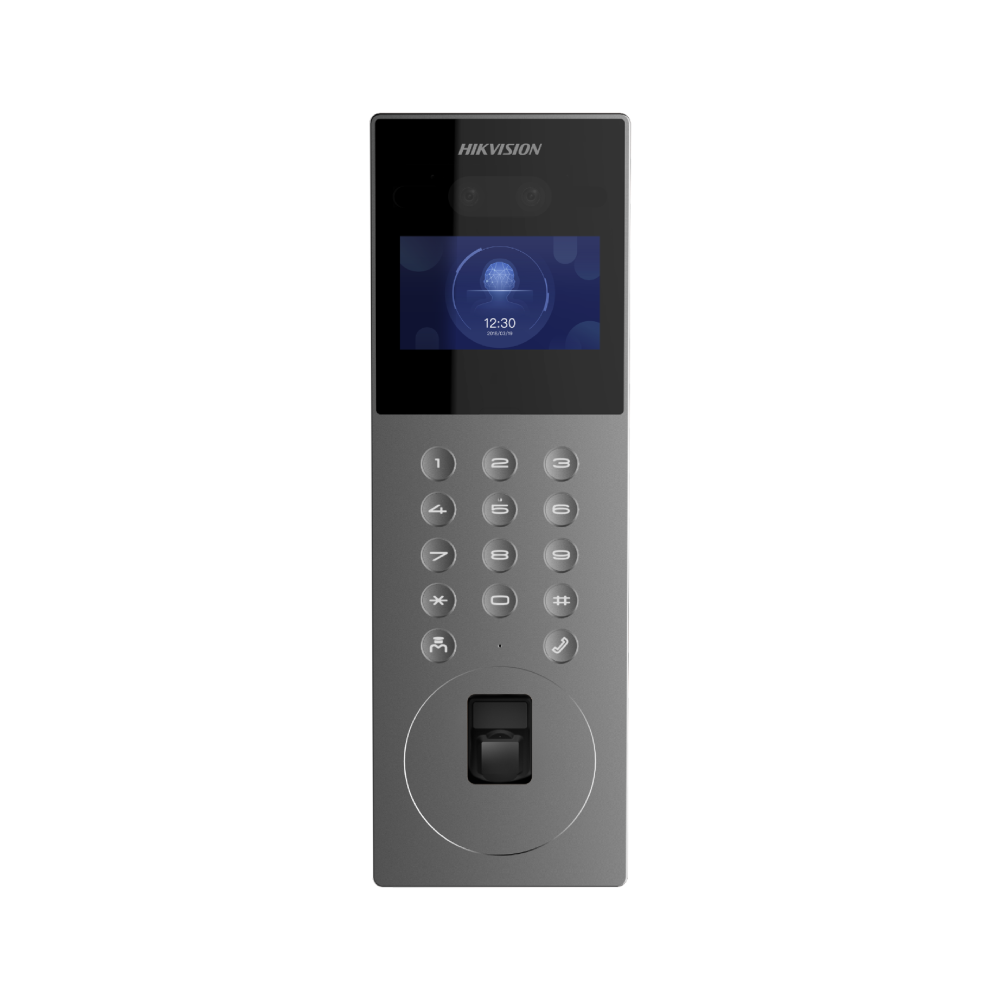

Hikvision DS-KD9203-FE6
Hikvision DS-KD9203-FE6 Ultra-series IP Face-Recognition Intercom / Access Control Station – IP65 Rated – 2MP Wide-angle Dual-lens – Built-in MiFare Card-Reader + Fingerprint Reader + Keypad
SKU: DS-KD9203-FE6
Categories: Hikvision IP Video Intercoms, Hikvision Standard IP Video Intercoms, Hikvision Video Intercoms, Video Intercoms
Tags: 1080P, 2MP, Access Control, Biometric Reader, Built-in Mic, Face Detection, Face Recognition, Fingerprint, Gate Automation, Gate Control, Hikvision, Intercom, IP65 Rated, Keypad, Mifare, RFID, RFID Reader, Speaker, Ultra-series, Video Intercom, Weatherproof, Wiegand
Hikvision DS-KD9203-FE6 Ultra-series IP Face-Recognition Intercom / Access Control Station – IP65 Rated – 2MP Wide-angle Dual-lens – Built-in MiFare Card-Reader + Fingerprint Reader + Keypad
Key Features:-
- 4.3-inch colorful LCD screen with 800 × 480 resolution
- 2 × 2 MP wide-angle HD lens
- IP65 protection level
- Built-in M1 card reading module
- Multiple interfaces: RJ45, RS-485, alarm input, relay, Wiegand
- Convenient configuration via Web remotely
- Convenient unlock methods: face, cards, PIN code and fingerprints
- Hikvision Intercom Online Designer Tool
Note: We highly recommend you upgrade the firmware of this device when installing and configuring it first time, using the product-link as per below
System parameters
- Operation system: Linux
- ROM: 4GB
- RAM: 1GB
- Processor: Embedded high performance processor
Display parameters
- Screen size: 4.3-inch
- Operation method: /
- Type: Colorful LCD
- Resolution: 800 × 480
Video parameters
- Lens: 2 × 2 MP HD camera
- Resolution: Main stream: 1080p@30fps, 720p@30fps; Sub stream: VGA@25fps, VGA@30fps
- FOV: Horizontal: /
- Wide dynamic range (WDR): Support 120 dB
- Supplement light: IR light, up to 3 m
- Video compression standard: Main stream and sub stream: H.264; Third stream: H.265
Audio parameters
- Audio input: 1 built-in omnidirectional microphone
- Audio compression standard: G.711u、G.711a、Opus、AAC-LD、AAC-LC、G.726、G.722.1
- Audio output: 1 built-in loudspeaker
- Audio compression bitrate: 64 Kbps
- Audio quality: Noise suppression and echo cancellation
- Volume adjustment: Adjustable
Capacity
- User capacity: 10000
- Face capacity: 5000
- Card capacity: 50000
- Fingerprint Capacity: 5000
Network parameters
- Network protocol: TCP/IP, RTSP, IPV6, ONVIF
- Wi-Fi: /
- Bluetooth: /
- 3G/4G/: /
Device interfaces
- Alarm input: 4 (2 exit buttons and 2 door contacts by default)
- Network interface: 1* RJ-45, 10/100/1000 Mbps self-adaptive
- TAMPER: 1
- Exit button: 1
- RS-485: 2 RS-485 (Half duplex, HIKVISION)
- USB: /
- Wiegand: /
- TF card: /
- Lock control: 2 relays, Max. 30 VDC 2 A
- Door contact input: 1
General
- Button: Physical buttons
- Installation: Flush mounting
- Indicator: /
- Net weight: 1.05 kg
- Gross weight: 2.166 kg
- Protective level: IP65
- Working temperature: -30 °C to 60 °C
- Working humidity: 10% to 90% (no-condensing)
- Dimension (W × H × D): 373 mm × 124 mm × 43.7 mm (14.69″ × 4.88″ × 1.72″)
- Battery: /
- Power supply: 12 VDC, 1.5 A
- Application environment: Outdoor
- Power consumption: ≤ 13 W
- Language: English, French, Brazilian Portuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek
