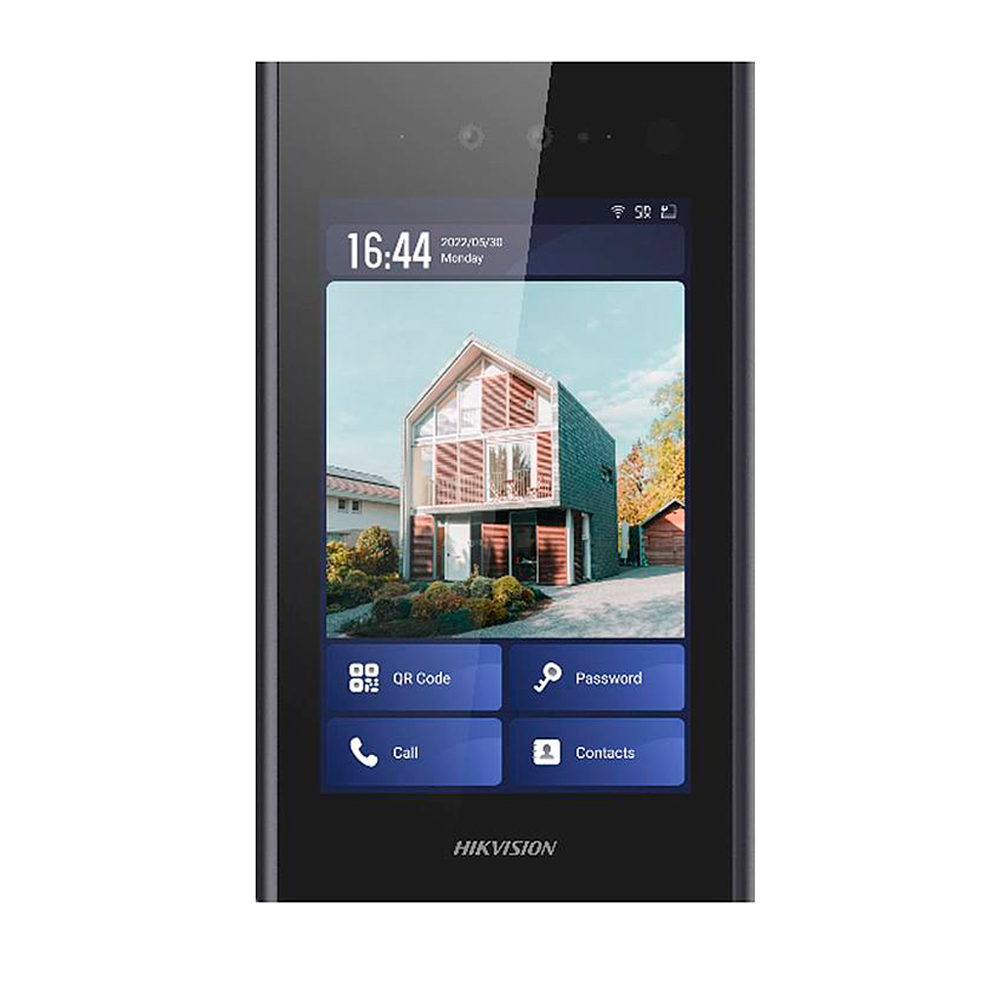

Hikvision DS-KD9403-E6 Ultra-series IP Face-Recognition Intercom / Access Control Terminal - 8" Touchscreen - IP65 Rated - 2MP Wide-angle Dual-lens - Built-in MiFare Card-Reader + Fingerprint Reader + QR-Code Reader + Face-Recognition

Access Control, Hikvision IP Video Intercoms, Hikvision Video Intercoms, Hikvision Wireless IP Video Intercoms, Standalone, Video Intercoms

Hikvision DS-KD9403-E6

Name: Hikvision DS-KD9403-E6
SKU: DS-KD9403-E6

Hikvision DS-KD9403-E6 Ultra-series IP Face-Recognition Intercom / Access Control Terminal – 8″ Touchscreen – IP65 Rated – 2MP Wide-angle Dual-lens – Built-in MiFare Card-Reader + Fingerprint Reader + QR-Code Reader + Face-Recognition

Key Features:-

Intuitive operation for a better user experience
8-inch colorful LCD screen with 1280 × 800 resolution
Built-in Android system
Touch screen UI, WEB
Great image quality even in darkness
See clearly with the 2MP camera
Multiple intelligent authentications: Card, PIN code, QR code, fingerprint & face recognition
High level of protection: IP65
Can be used for Time & Attendance Solution
Hikvision Intercom Online Designer Tool

Note: We highly recommend you upgrade the firmware of this device when installing and configuring it first time, using the product-link as per below

Hikvision Product-Link

System parameters

Operation system: Android 7.1
ROM: 4GB
RAM: 2GB
Processor: Embedded high performance processor

Display parameters

Screen size: 8-inch
Operation method: Capacitive touch screen
Type: Colorful IPS
Resolution: 1280 x 800
Luminance: 410 cd/m²

Video parameters

Lens: 2 MP HD camera
Resolution: Main stream:1920 × 1080p and 1280 × 720p; Sub stream: 1280 × 720p and 640 × 480p
FOV: Horizontal: 88°, Vertical: 44°
Wide dynamic range (WDR): Support 120 dB
Supplement light: IR light, up to 3 m
Video compression standard: Main stream and sub stream: H.264

Audio parameters

Audio input: 2 built-in omnidirectional microphone
Audio compression standard: G.711 U, G.711 A
Audio output: 2 built-in loudspeaker
Audio compression bitrate: 64 kbps
Audio quality: Noise suppression and echo cancellation
Volume adjustment: Adjustable

Capacity

User capacity: 20000
Face capacity: 10000
Fingerprint capacity: /
Card capacity: 100000
Message capacity: /
Linked indoor station capacity: 500
Sub door station capacity: 16

Network parameters

Network protocol: TCP/IP, RTSP
Wi-Fi: /
Bluetooth: Support：/
3G/4G/:

Authentication

Card reading frequency: 13.56 MHz
Face recognition distance: 0.3 to 2 m
Face recognition accuracy rate: ≥ 99%
Face recognition duration: ＜ 0.2 s per person

Device interfaces

Alarm input: 4 (2 exit buttons and 2 door contacts by default)
Network interface: 2 RJ-45 10/100/1000 Mbps self-adaptive (1 reserved)
TAMPER: 1
Exit button: 2 (1 for lock control and 1 for secure door control unit)
RS-485: 2 RS-485 (Half duplex, HIKVISION)
USB: 2 for internal use only
Wiegand: /
TF card: Reserved
Alarm Output: 2 (reserved)
Lock control: 2 relays, Max. 30 VDC 2 A; lock 2 needs secure module
Door contact input: 1

General

Installation: Surface mounting and flush mounting
Indicator: /
Net weight: 0.965 kg
Gross weight: 2.772 kg
Protective level: IP65
Working temperature: -30 °C to 60 °C
Working humidity: 10% to 90% (no-condensing)
Dimension (W × H × D): 244 mm × 145 mm × 26 mm (9.6” × 5.7” × 1”)
Battery: /
Power supply: 12 VDC @ 2A
Application environment: Outdoor
Power consumption: ≤ 18 W
Language: English, French, Brazilian Portuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek
