Hikvision DS-KH6350-WTE1

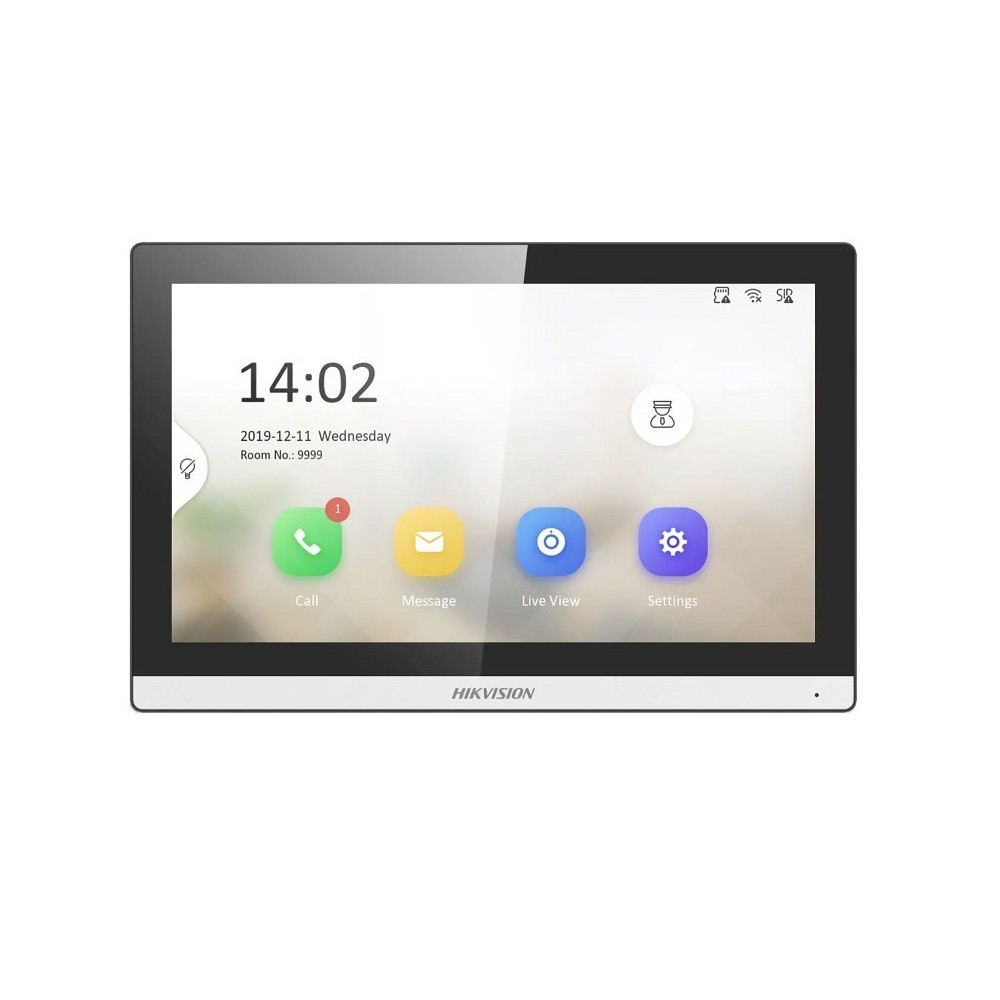

Hikvision DS-KH6350-WTE1 PoE IP Video Intercom Indoor Touchscreen Display Monitor – 7″ (7-Inch) Size – PoE Powered OR 12VDC Powered – Built-in WLAN – Black & Silver Frame
SKU: DS-KH6350-WTE1
Categories: Hikvision IP Video Intercoms, Hikvision Standard IP Video Intercoms, Hikvision Video Intercoms, Hikvision Wireless IP Video Intercoms, Video Intercoms
Tags: 2.4GHz Wireless, 7 inch, Black, Display, Gate Automation, Gate Control, Hikvision, Intercom, IP, Monitor, Network, PoE, Touchscreen, Video Intercom, WiFi, Wireless
Hikvision DS-KH6350-WTE1 PoE IP Video Intercom Indoor Touchscreen Display Monitor – 7″ (7-Inch) Size – PoE Powered OR 12VDC Powered – Built-in WLAN – Black & Silver Frame
Key Features :-
- 7-inch TFT touch screen with 1024 × 600 resolution
- Convenient Hik-Connect APP Mobile Control
- Receive calls, open the door and live view remotely
- Easy to use without PC
- Easy wizard for quick set up
- Configure the whole system on one touch screen
- Live view of the door station and cameras in public areas
- Support voice messages when no response from the indoor station
- Receive alarms by linkage with a alarm system and notify the center to handle in time
- Elevator access control
- Hikvision Intercom Online Designer Tool
Note: We highly recommend you upgrade the firmware of this device when installing and configuring it first time, using the product-link as per below
System Parameters
- Operation System: Linux
- ROM: 32MB
- RAM: 128MB
- Processor: Embeded high performance processor
Display Parameters
- Screen Size: 7-inch
- Operation Method: Capacitive touch screen
- Type: Colorful TFT
- Resolution: 1024 × 600
Video Parameters
- Lens: /
- Resolution: /
- FOV: /
- Wide Dynamic Range (WDR): /
- Video Compression Standard: /
- Focal Length: /
Audio Parameters
- Audio Input: 1 built-in omnidirectional microphone
- Audio Compression Standard: G.711U, G.711A
- Audio Output: 1 built-in loudspeaker
- Audio Compression Bitrate: 64 Kbps
- Audio Quality: Noise suppression and echo cancellation
- Volume Adjustment: Adjustable
Capacity
- Message Capacity: TF card inserted: 200 captured pictures, 200 alarm records; Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records
- Notice Capacity: 200
- Linked Indoor Extensions Capacity: 16
- Linked Doorphone Capacity: 17
Network Parameters
- Network Protocol: TCP/IP, SIP, RTSP
- Wi-Fi: 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
- Bluetooth: /
- 3G/4G: /
- Zigbee: /
Device Interfaces
- Alarm Input: 8
- Network Interface: 1 RJ-45 10/100 Mbps self-adaptive
- TAMPER: /
- RS-485: 1 RS-485 (Half duplex)
- USB: /
- TF Card: Support TF card, up to 128 G
- Alarm Output: 2
- Lock Control: 2 relays, Max. 30 VDC 0.3 A
General
- Button: /
- Installation: Wall mounting, table mounting
- Indicator: /
- Weight: Net weight: 355 g (0.8 lb); Gross weight: 683 g (1.5 lb)
- Protective Level: /
- Working Temperature: -10 °C to 50 °C (14 °F to 122 °F)
- Working Humidity: 10% to 90% (no-condensing)
- Dimension (W × H × D): 175 mm × 113.5 mm × 21 mm (6.9″ × 4.5″ × 0.83″)
- Battery: /
- Application Environment: Indoor
- Power Consumption: ≤ 5 W
- Language: English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese (Brazil), Spanish, Hebrew, Romanian, Turkish, Estonian, Danish, Swedish, Norwegian, Finnish, Vietnamese, Croatian, Slovenian, Serbian, Arabic, Portuguese (Portugal), Lithuanian, Uzbek, Kazakh, Mongolian, Ukrainian
