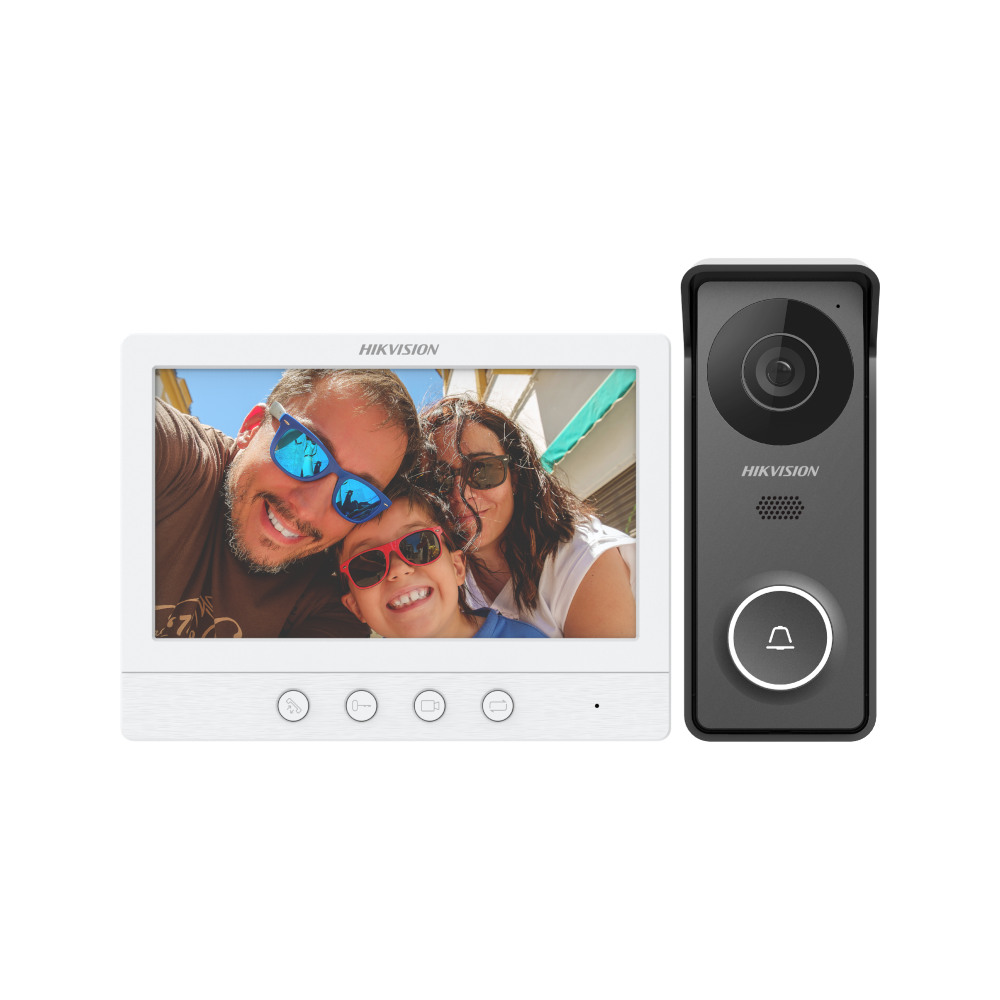

Hikvision DS-KIS213(B)

Outdoor station/Video parameters

• Supplement light: IR light, up to 3 m
• Resolution: Stream resolution: 1280 x 720 @ 60fps
• FOVHorizontal: 117°, Vertical: 70°, Diagonal: 141°

Outdoor station/Audio parameters

• Audio input: Built-in omnidirectional microphone (≤50 cm)
• Audio output: Built-in loudspeaker (30 cm/76 dB, 50 cm/72 dB)

Outdoor station/Device interfaces

• Lock control: 1 relay, max 30 V 1 A
• Debugging port: 1
• Four-wire: 1 four-wire interface

Outdoor station/General

• Button: 1 physical button(s)
• Power supply: 12 VDC
• Power consumption: Max. 4 W
• Working temperature: -30 °C to 60 °C (-22 °F to 140 °F)
• Working humidity: 10% to 90%
• Dimensions: 145 mm × 55 mm × 24 mm (5.71″ × 2.17″ × 0.94″)
• Application environment: Outdoor
• Installation: Surface mounting
• Protective level: IP65, IK08
• Material: Metal

Indoor monitor/Display parameters

• Operation method: Physical button
• Type: 7-inch colorful TFT
• Resolution: 1024 x 600

Indoor monitor/Audio parameters

• Audio input: Built-in omnidirectional microphone (≤50 cm)
• Audio output: Built-in loudspeaker (30 cm/76 dB, 50 cm/72 dB)

Indoor monitor/Capacity parameters

• Linked indoor extensions capacity: 2
• Linked doorphone capacity: 2
• Linked analog camera: 1

Indoor monitor/Device interfaces

• Power supply input: 12V DC
• Debugging port: 1
• Four-Wire interface: 4, 2 for indoor extensions, 2 for doorphones
• DIP switch: 1 Bit
• BNC: 1

Indoor monitor/General

• Button: 4 physical buttons
• Power supply: 12 VDC
• Power consumption: ≤4 W
• Working temperature: -10° C to + 55° C (14° F to 131° F)
• Working humidity: 10% to 90%
• Dimensions (W × H × D): 178 mm x 132 mm x 19 mm (7.01″ × 5.20″ × 0.75″)
• Installation: Surface mounting
• Application environment: Indoor
