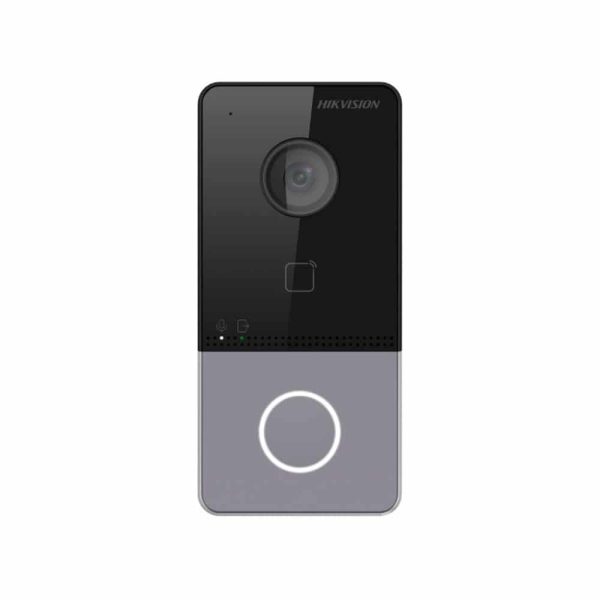

Hikvision DS-KV6113-WPE1
Hikvision DS-KV6113-WPE1 Wireless PoE IP Video Intercom Outdoor Calling Station / Doorbell – 2MP 1080P Wide Angle Camera – Built-in Mifare Card Reader – Can Work Standalone – One-Lock Control
Hikvision DS-KV6113-WPE1 Wireless PoE IP Video Intercom Outdoor Calling Station / Doorbell – 2MP 1080P Wide Angle Camera – Built-in Mifare Card Reader – Can Work Standalone – One-Lock Control
Key Features:-
- Standard PoE / 12vDC powered
- Built-in WiFi
- 2MP HD camera with 129° wide angle view
- Noise suppression and echo cancellation
- Single button
- Low illumination
- Access control functions
- Tamper-proof
- Configuration remotely via web
- Nice industry design, IP65, 2 indicator integrated
- Internal Mifare card reader, 1-ch Indoor station access control
- Hikvision Intercom Online Designer Tool
Note: We highly recommend you upgrade the firmware of this device when installing and configuring it first time, using the product-link as per below
System parameters
- Operating system: Embedded Linux operation system
- ROM: 16 M, 32 M
- RAM: 256 M
- CPU: Embedded MCU Processor
Display parameters
- Screen size: /
- Operation method: /
- Type: /
- Resolution: /
Video parameters
- Lens: 1
- Resolution: Main stream: 1920 × 1080p, 720p; Sub stream: 704 × 576
- FOV: Horizontal: 129° Vertical: 75°
- WDR: True WDR
- Supplement light: IR supplement
- Video compression standard: H.264
Audio parameters
- Audio compression standard: G.711 U
- Audio input: Built-in omnidirectional microphone
- Audio output: Built-in loudspeaker
- Audio compression bitrate: 64 Kbps
- Audio quality: Noise suppression and echo cancellation
- Volume adjustment: Adjustable
Capacity
- User capacity: /
- Face capacity: /
- Card capacity: /
- Linked network camera capacity: 1
Network parameters
- Communication protocol: TCP/IP, RTSP
- Wired network: 10/100 Mbps self-adaptive Ethernet
- Wi-Fi standard: Support
- Bluetooth version: Not supported
- 3G/4G standard: /
- Received frequency: 2.4 to 2.4835GHz
- Transmitted frequency: 2.4 to 2.4835 GHz
- Bandwidth: 20 to 40 MHz
- Frequency power: 802.11b:16dBm +/- 1.5dBm; 802.11g:15dBm +/- 1.5dBm; 802.11n(ht20):14dBm +/- 1.5dBm; 802.11n(ht40):12dBm +/- 1.5dBm
Device interfaces
- Alarm input: 4
- Network interface: 1
- TAMPER: 1
- Exit button: 1
- RS-485: 1
- USB: 0
- Wiegand: 0
- TF card: 0
- Alarm output: 0
- Lock control: 1
- Door contact input: 1
- Power interface: 1
Performances
- Multi-factor authentication: 2000
General
- Button: 1
- Installation: Surface mounting
- Indicator: 2
- Weight: 265g
- Protective level: IP65
- Working temperature: -40° C to +55° C (-40° F to 131° F)
- Working humidity: 10% to 95%
- Dimensions: 138 mm × 65 mm × 27 mm
- Battery: /
- Application environment: Outdoor
- Power consumption: ＜ 10 W
- Language: English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian
