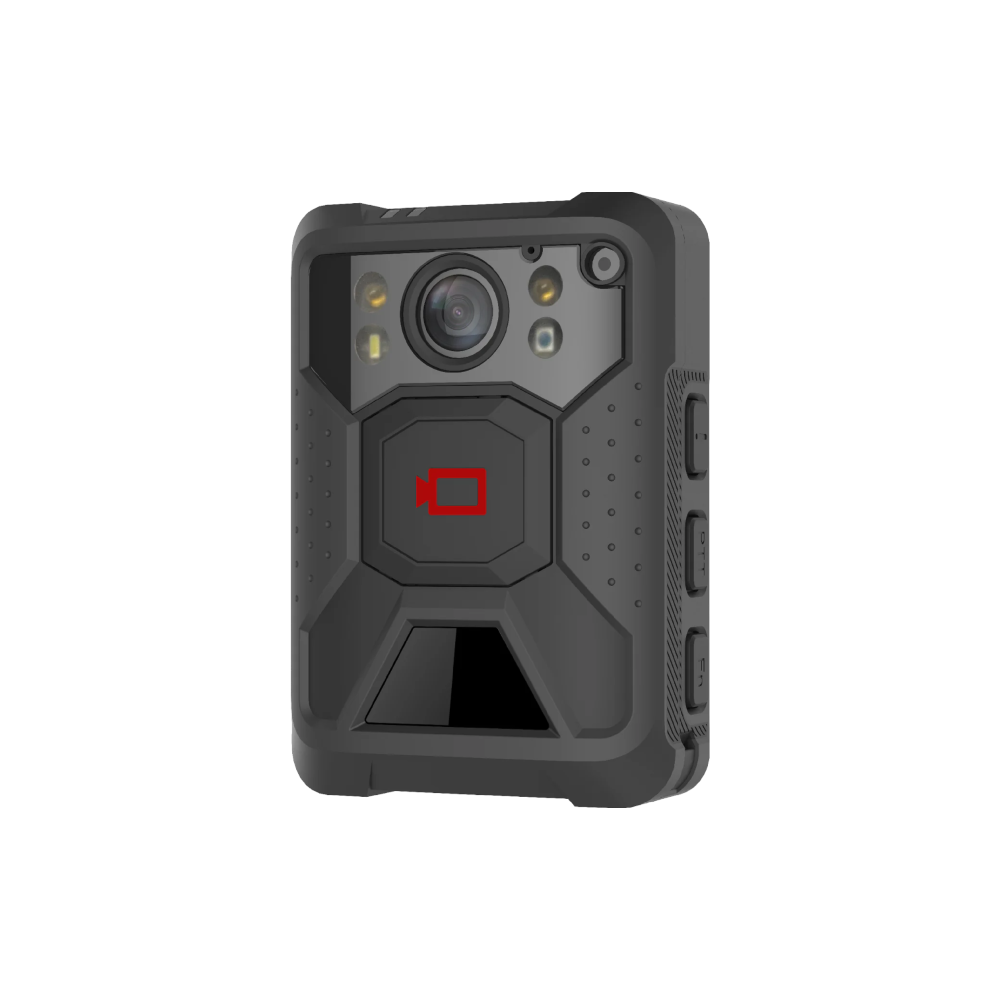

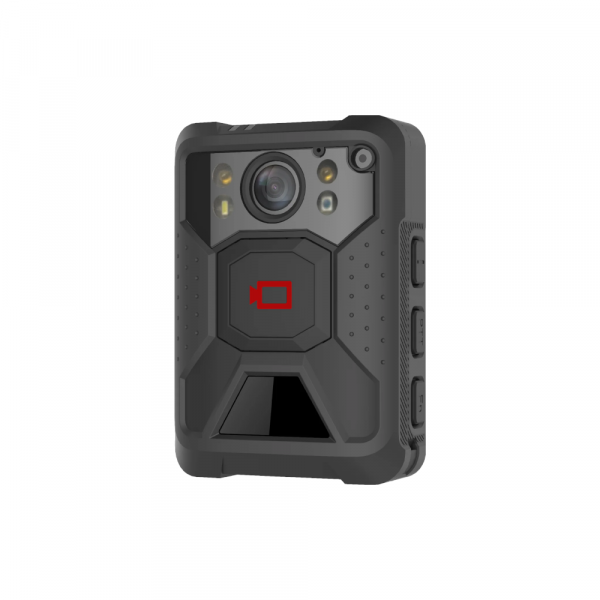

Hikvision DS-MCW407/32G/GLE(D)
Hikvision DS-MCW407/32G/GLE(D) 1080P Full-HD Linux Portable Body Camera – 4G LTE – Bodycam – Personal Protection – Big Button – Built-in GPS & WiFi – 135° Wide Angle
SKU: DS-MCW407/32G/GLE(D)
Categories: Bodycam & Accessories, CCTV / Surveillance, Mobile Surveillance
Tags: 1080P, 2MP, 3G Camera, 4G Camera, Battery-Powered, Body Camera, Bodycam, Built-in Mic, Hikvision, IR, LTE, Speaker, WiFi
Hikvision DS-MCW407/32G/GLE(D) 1080P Full-HD Linux Portable Body Camera – 4G LTE – Bodycam – Personal Protection – Big Button – Built-in GPS & WiFi – 135° Wide Angle
Key Features :-
- 1080p HD recording
- The recorded videos can be uploaded to the central video platform via 4G wireless communication
- Dual positioning modules of GPS and Beidou. The location information can be uploaded to the command center in real time
- Realtime status transmitted to central platform via 4G connection, which include GPS and live view
- Supports IR night vision. Even in the dark scene, the facial features of the persons in the scene can be recognized clearly
- Tri-proof design to support all-weather filed operation
- Built-in battery with large capacity, supporting longer working hour
- Small size, light weight, and convenient to carry
- Large recording button for convenient operation
- Pre-record 75 seconds
- Support AES256
Camera
- Image Sensor: 1/3 progressive scan CMOS”
- Max. Recording Resolution: 1920 × 1080
- Min. Illumination: Color: 0.07 Lux @ (F2.2, AGC ON), 0 Lux with supplement light
- Day & Night: Switch IR cut filter automatically
- Zoom: 4x Digital
- White Light: 1 white light(s)
Lens
- Focal Length: 2.4 mm fixed lens
- FOV: Horizontal FOV: 135°, Vertical FOV: 75°, Diagonal FOV: 145°
- Aperture: F2.2
Video
- Video Compression: H.264, H.265
- Video Format: MP4, PS
- Main Stream: 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 720 × 576)
- Pre-Record & Post-Record: Pre-record: 10 s – Post-record: 60 s
- Sub-Stream: 30 fps (1280 × 720, 720 × 576)
Audio
- Audio Compression For Video Recording: G722_1, AAC
- Audio Compression For Audio Recording: PCM
- Audio Compression For Group Intercom: G711_A, G711_MU, G722_1
- Audio Bit Rate: G711_A (64 kbps), G711_MU (64 kbps), G722_1 (16 kbps), AAC (64 kbps), PCM (128 kbps)
- Image Format: JPEG
Screen
- Display Resolution: 320 × 240
- Screen Size: 2.0″
- Touchscreen: Supported
Storage
- RAM: 128 MB
- ROM: 32 GB by default, 64/128/256 GB optional
IR
- IR Range: Up to 10 m
- IR Wavelength: 850 nm
Wireless Network
- Wi-Fi Protocol: 802.11 a/b/g/n
- Wi-Fi Frequency Band: 2.412 to 2.472 GHz
- Cellular Network:
- GSM: 850 / 900 / 1800 / 1900
- WCDMA: B1 / B8
- FDD -LTE: B1 / B3 / B4 / B7 / B20 / B28
- TDD -LTE: B34 / B38 / B39 / B40 / B41
- Positioning Mode: GPS
Network
- Protocol: HTTPS, RTSP, NTP, FTP
- API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
Interface
- Audio Type: 1 built-in mic(s), 1 speaker(s)
- Indicator: 2 indicator(s) for charging/working/recording/exception
- Button: Power, Video recording, Audio recording, Picture capture, PTT, SOS, Fn
- SIM Card: 1 Nano-SIM card slot
- Charging Interface: Type-C, Pin connection
- USB: 1 USB 2.0 port(s)
General
- Operating Condition: -20 °C to 55 °C (-4 °F to 131 °F). Humidity 95% or less (non-condensing)
- Power: 5VDC, 2.0 A, max. 10 W
- Dimensions: 82.6 mm × 58 mm × 29 mm (3.3″ × 2.3″ × 1.1″)
- Weight: 159.5 g (without mounting) (0.4 lb.)
- Operating System: Linux
- Client: Hik-Connect, HikCentral Pro, HikCentral Master, HikCentral Master Lite
- MIC: Supported
- Speaker: 1 built-in speaker(s), max. power consumption: 1 W, max. sound pressure level: 87 dB (10 cm)
Battery
- Battery Type: Lithium-ion battery, integral
- Capacity: 3220 mAh
- Charging Time: ≤ 4 h
- Battery Duration: Up to 12h in 720p resolution
Approval
- RF: EN 300 328 V2.1.1 (BT or 2.4G),EN 62311:2008 (BT or 2.4G), EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 50130-4:2011+A1:2014)
- EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014
- Safety: CB: IEC 62368-1: 2014+A11, IEC 62368-1: 2018, CE-LVD: EN 62368-1: 2014/A11: 2017, EN IEC 62368-1:2020+A11:2020, CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment: CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
- Protection: IP68: IEC 60529-2013, MIL STD 810G
