Hikvision DS-MDS001

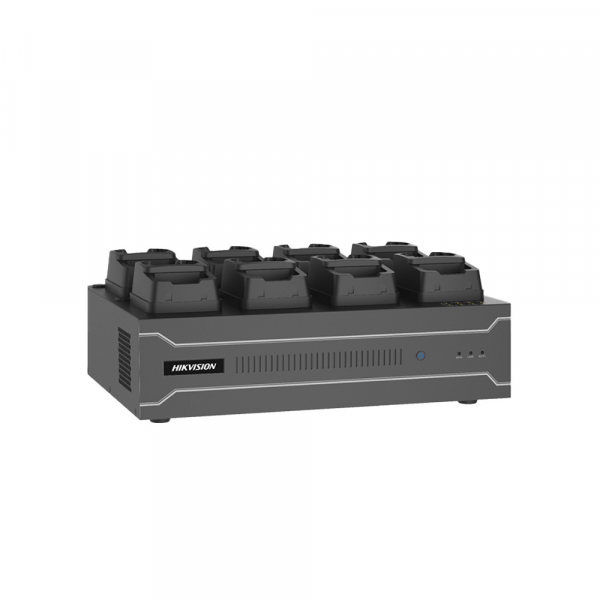

Hikvision DS-MDS001 – 8-Port Desktop Docking / Charging Station for Body Cameras / Bodycam – 2x GbE LAN Ports
SKU: DS-MDS001
Categories: Bodycam & Accessories, CCTV / Surveillance, Mobile Surveillance
Tags: Bodycam, Hikvision
Hikvision DS-MDS001 – 8-Port Desktop Docking / Charging Station for Body Cameras / Bodycam – 2x GbE LAN Ports
Key Features :-
- 1000 M dual network interface
- Collects data from multiple body cameras
- Charges, uploads data, and cleans the storage space automatically
- Prevents data loss via ANR (Automatic Network Replenishment)
- Cyclic covering: Files will be covered automatically according to the storage timeline when there is no enough space
- Reads time, date, product No., etc. of the body camera automatically
- Plays videos, audios, and images
- Log management
Storage
- RAM: 2 GB
- HDD: Up to 4 disk(s) (Max. 8 TB for each disk) and default 2 TB
Network
- Protocol: HTTPS, FTP, NTP, SADP, ISAPI
Interface
- Indicator: Power indicator,Hard disk indicator,Network indicator,8 indicator(s) for charging/working/recording/exception
- Button: Power
- General Interface: 1 × USB 3.0
- Body Camera Access Number: Up to 8 body camera(s)
- Base Paramaters: 5VDC, 1.5 A for each channel, rate ≥ 8 MB/s
General
- Client: HikCentral Pro, HikCentral Master
- Speaker: 1 build-in speaker
- Web Browser: Plug-in required live view: IE 10+; Plug-in free live view: Chrome 57.0+, Firefox 52.0+
- Operating System: Linux
- Power: 100 to 240 VAC, max. 250 W
- Operating Condition: -10 °C to 55 °C (-14 °F to 131 °F). Humidity 95% or less (non-condensing)
- Dimensions: 400 mm × 300 mm × 124 mm (15.75″ × 11.81″ × 4.88″)
- Weight: 7.1 kg (15.65 lb.)
- Installation Method: Desk-mounted
Approval
- EMC: CE-EMC: EN 55032: 2015, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014, EN 61000-3-2: 2014
- Safety: CE-LVD: EN 62368-1: 2014/A11: 2017, CB: IEC 62368-1: 2014+A11
