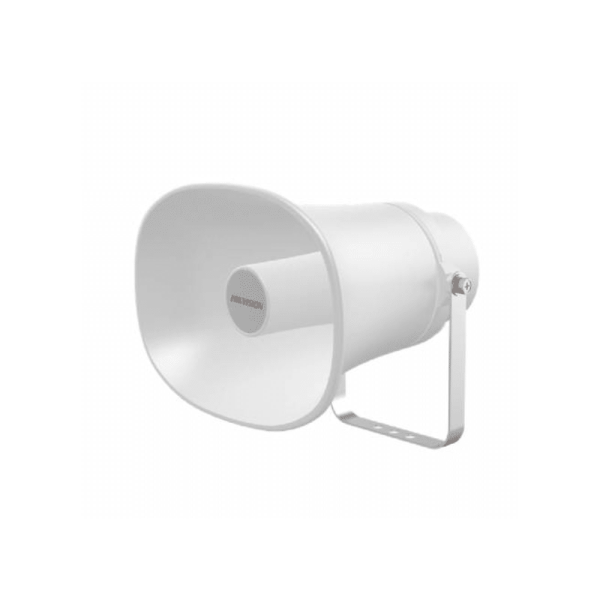

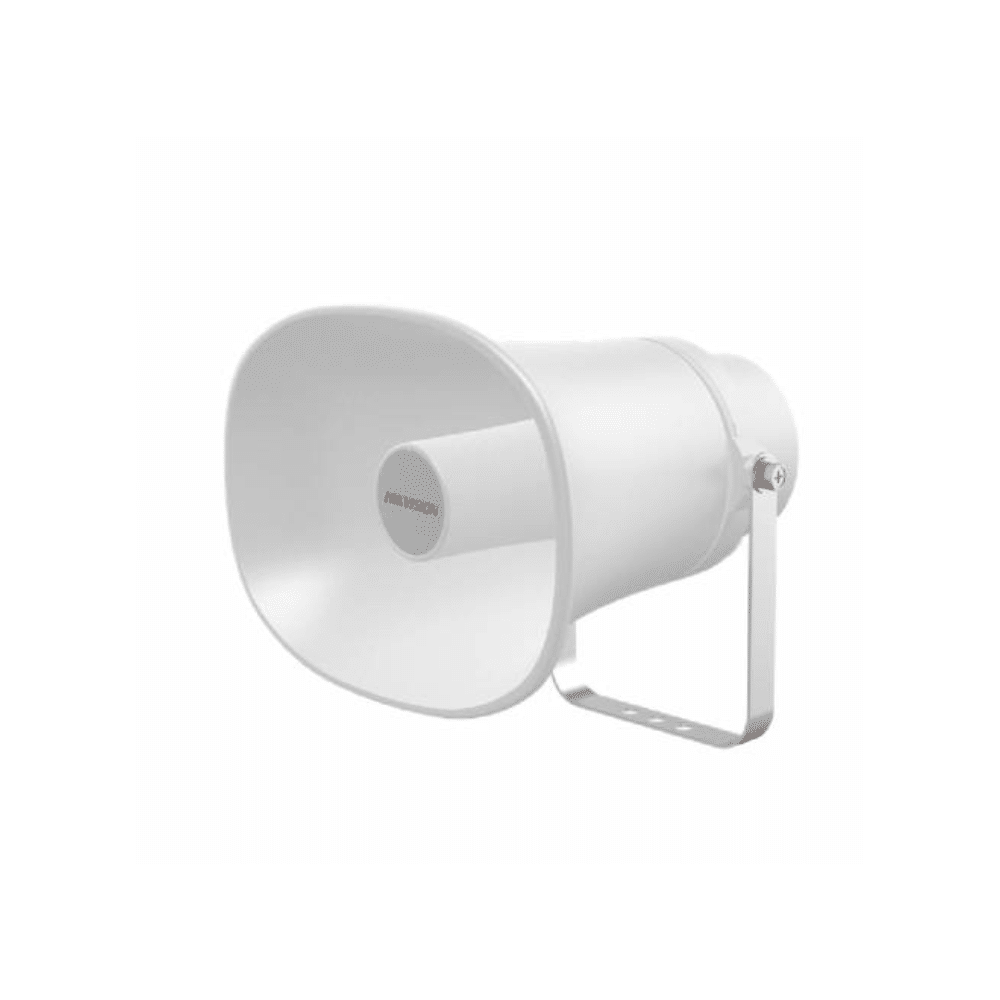

Hikvision DS-PA0103

Hikvision DS-PA0103 PoE IP Weatherproof Horn Speaker – with Built-in Audio Mic – Supports Micro-SD – Works with HCP (HikCentral Professional) Only

  • Hikvision HikCentral-P-IPspeaker-1Unit

    Hikvision HikCentral-P-IPspeaker-1Unit - HikCentral Professional Management Software with 1 IP Speaker Management License

This product is currently unavailable.

Hikvision DS-PA0103 PoE IP Weatherproof Horn Speaker – with Built-in Audio Mic – Supports Micro-SD – Works with HCP (HikCentral Professional) Only

Key Features:-

  • Model: DS-PA0103
  • Type: IP horn speaker
  • Interface: 1 x 10/100Mbps RJ-45 network interface
  • Network broadcast: playing audio file or real-time audio stream
  • Storage: Micro-SD (up to 32GB)
  • I/O : Mic Input; speaker output
  • Power: 802.3af 48VDC standard PoE or 12VDC
  • SD card broadcast: playing audio files from an SD card
  • Built-in microphone for sound collection
  • Material: Aluminum alloy
  • Dimension: with bracket – 242mm x 182mm x 338.5mm; without bracket – 242mm x 182mm x 250mm

Hikvision Product-Link

text over image1265



Parameters

  • Max sound pressure level: 120 db
  • Network Interface: 10/100Base-TX self-adaptive network, RJ45 interface
  • Network Protocol: TCP, UDP, RTP, ARP, ICMP, DHCP, DNS, IGMP, HTTP
  • Audio Protocol: MP3, G.711a/u, G.722
  • Storage: Micro SD Card, up to 32 GB
  • MIC Input: 0.2 Vrms
  • Speaker Output: 8 Vrms
  • Power Input: PoE (IEEE 802.3af), maximum 13 W
  • Approvals: EN 55022 Class B, EN 61000-6-1, EN 61000-6-2, EN 55024; EN 50121-4, IEC 62236-4, FCC Part 15 Subpart B Class B; ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22 Class B; KCC KN22 Class B, KN24, IEC/EN/UL 60950-1; IEC/EN/UL 60950-22, IEC 60068-2-1, IEC 60068-2-2; IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-64; IEC 60068-2-78, IEC/EN 60529 IP66; IEC/EN 60529 IP67
  • Color: White
  • Weight: Approx. 1.5 kg (3.31 lb.)
  • Material: Casing: aluminum alloy; Rear cover: stainless steel
  • Dimension:
    • With bracket: 242 mm × 182 mm × 338.5 mm (9.53″ × 7.17″ × 13.33″)
    • Without bracket: 242 mm × 182 mm × 250 mm (9.53 × 7.17″ × 9.84″)”
  • Power consumption: < 1 W (without sound), maximum 13 W (producing sound)
  • Protection level: IP67
  • Operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Frequency Response: 300 Hz~12.5 kHz
  • Coverage Pattern: 70° horizontal by 100° vertical
  • Amplifier Description: Built-in 15 W Class-D amplifier
