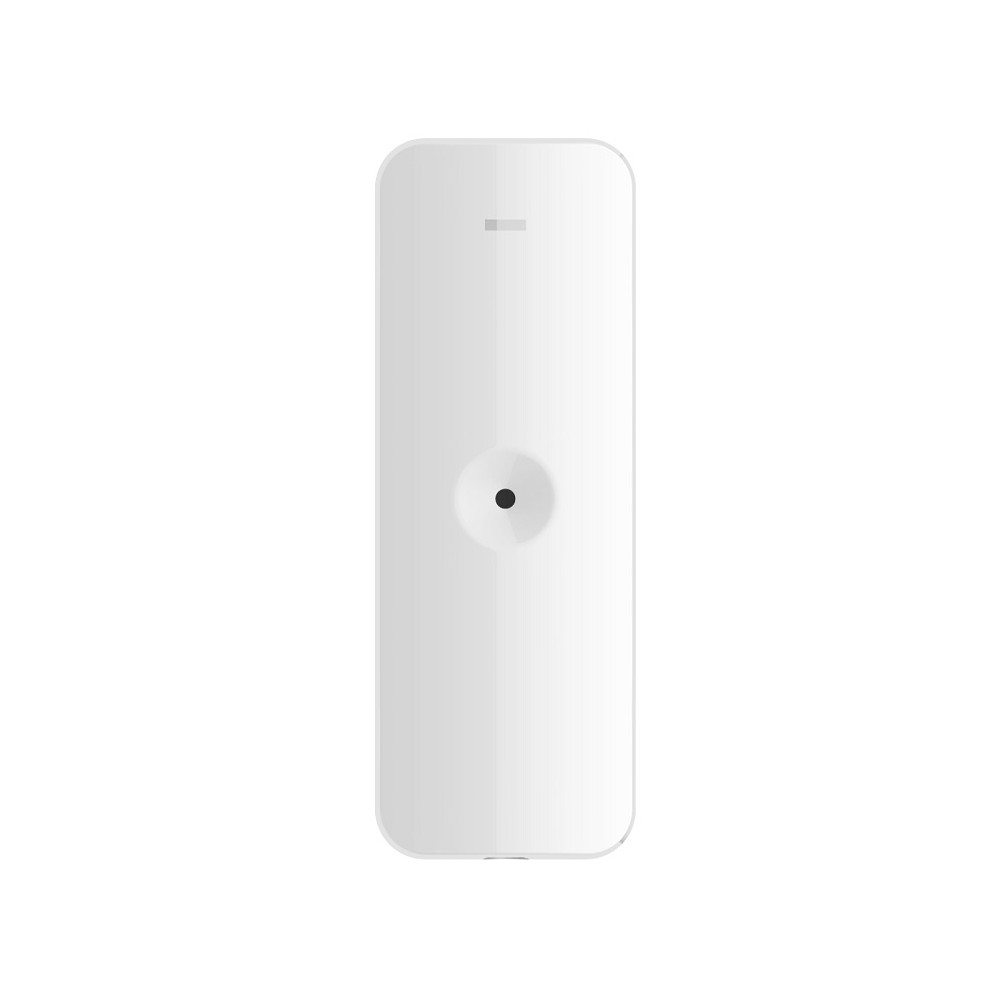

Hikvision DS-PDBG8-EG2
Hikvision DS-PDBG8-EG2 Wired Intrusion Glass Break Detector – High-Quality Omnidirectional Microphone Sensor – Up to 8m / 120° Detection Coverage
SKU: DS-PDBG8-EG2
Categories: Intrusion & Alarms, Wired Alarm Detectors, Wired Alarms
Tags: Alarm, Detector, Glass Break Detector, Hikvision, Intrusion, Microphone, Wired
Hikvision DS-PDBG8-EG2 Wired Intrusion Glass Break Detector – High-Quality Omnidirectional Microphone Sensor – Up to 8m / 120° Detection Coverage
Key Features :-
- High quality Omni-directional microphone sensor
- Up to 8m / 120° detection coverage
- Selectable EOL resistors – Alarm Resistance: 1K, 2K2, 4K7, 5K6, 6K8/）
- 9-16 VDC wide voltage adaptation with polarity reverse connection protection
Detection Performance
- Detection Method: Acoustic Sensor
- Detection Range: 8m
- Detection Angle: 120°
- Glass Break Sensitivity: Potentiometer Adjustment
- Glass Type: Float; Plate; Tampered; Wired; Laminated; Leaded; Double Glazing
- Glass Thickness: 2.4mm to 6.4mm
- Glass Size: 0.3m x 0.3m to 3m x 3m
Feature
- Digital Processing: Support
- Tamper Protection: Front
Interface
- Alarm Output: Normally Closed
- LED Indicator: Red(High Frequency Trigger), Green(Low Frequency Trigger), Blue(Alarm)
Transmission
- Transmission Method: Wired
Electrical Characteristics
- Power Supply: 9-16 VDC
- Typical Voltage: 12V
- Power Consumption: 25mA
General
- Operation Temperature: -10°C to 55°C (14°F to 131°F)
- Storage Temperature: -20°C to 60°C (-4°F to 140°F)
- Operation Humidity: 10% to 90%
- Dimension (WxHxD): 38.8 mm × 107 mm × 22.5 mm
- 49.5g
- Mounting Method: Wall; Ceiling
- Application Scenario: Indoor
