Hikvision DS-PDMCS-EG2-WB

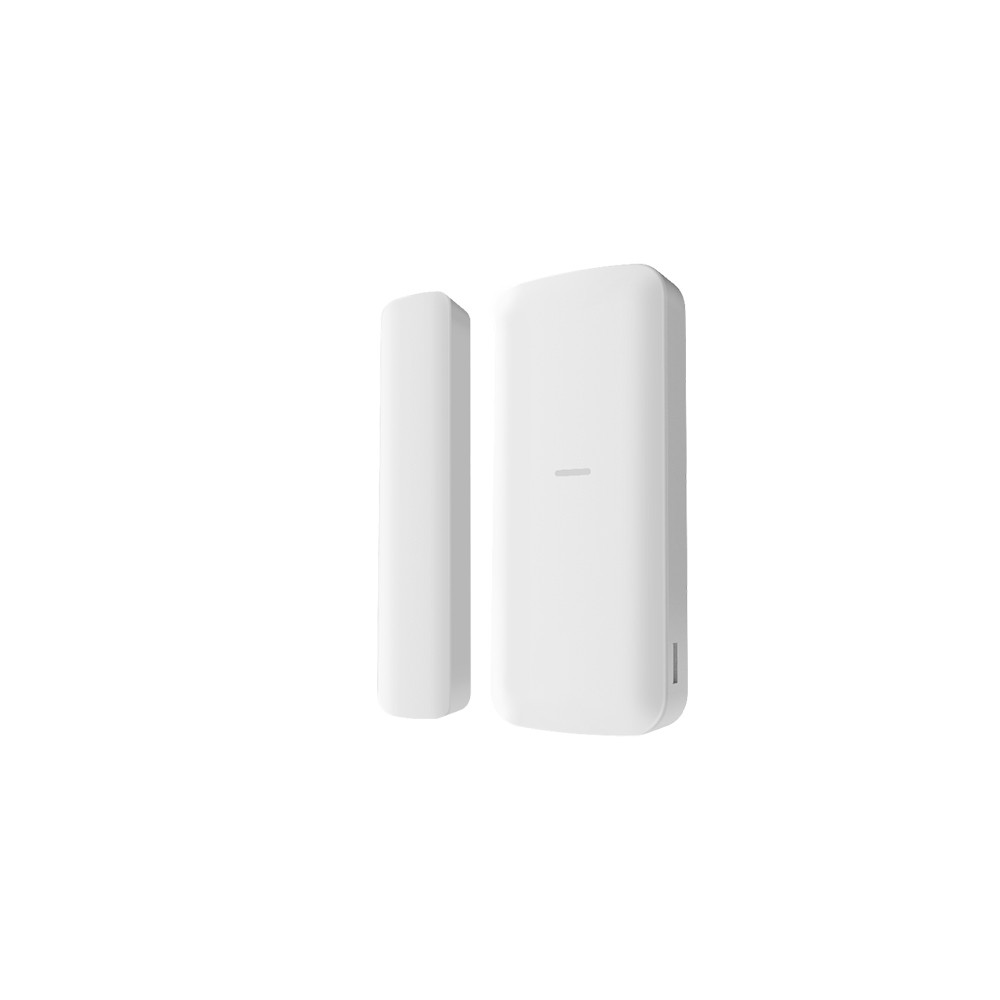

Hikvision DS-PDMCS-EG2-WB 433MHz Battery-Powered Indoor Wireless Slim Door / Window Contact – To Work with AX Pro Hub
SKU: DS-PDMCS-EG2-WB
Categories: Intrusion & Alarms, Wireless Alarm Detectors, Wireless Alarms
Tags: 433MHz Wireless, AX Pro, Door Contact Sensor, Hikvision, Wireless
Hikvision DS-PDMCS-EG2-WB 433MHz Battery-Powered Indoor Wireless Slim Door / Window Contact – To Work with AX Pro Hub
Features :-
- Slim design for an unobtrusive (unnoticeable) installation
- Fully remote configurable through App
- Multiple enrollment methods and easy installation design
- Frequency hopping against jamming for reliable transmission
Note: We highly recommend you upgrade the firmware of this device when installing and configuring it first time
Upgrade Firmware using Hik-Partner Pro app (for installers)
Detection Performance
- Detection Method: Opening Contact
- Detection Gap: 52mm Max
Feature
- Digital Processing: Support
- Tamper Protection: Front; Rear
- Environment Temperature Indicator: Support
- Signal Strength Indicator: Support
Interface
- Power Switch: Power Up Enrolling
- LED Indicator: Blue (Alarm)
Transmission
- Transmission Technology: Tri-X Wireless
- Transmission Method: Two-Way RF Wireless
- Transmission Frequency: 433MHz
- Transmission Security: AES-128 Encryption
- Transmission Range (Free Space): 1Km
- Frequency Hopping: Support
- Enrolling Method: Power up; Remote ID; QR Code
Electrical Characteristics
- Standard Battery Life: 3 years in work status (being triggered 20 times per day)
- Power Supply: Battery Powered
- Battery Type: CR2450 x 1
- Typical Voltage: 3V
General
- Operation Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
- Operation Humidity: 10% to 90%
- Dimension (W x H x D): 29mm × 69mm × 10mm; 14mm × 69mm × 10mm
- Weight: 38g
- Application Scenario: Indoor
