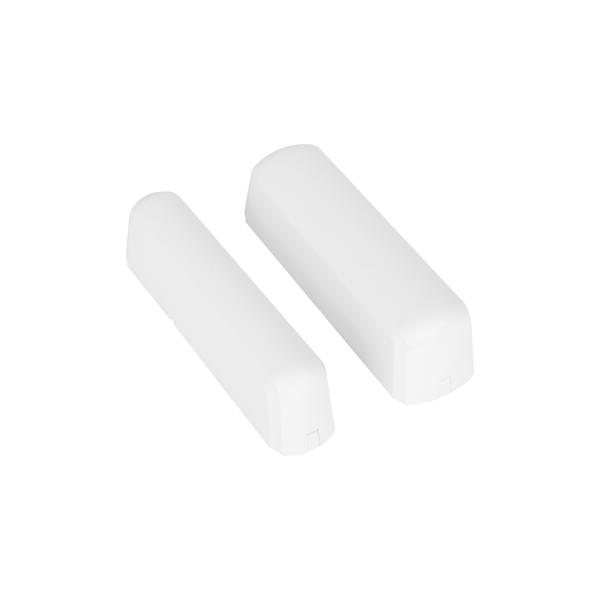

Hikvision DS-PDMCX-E-WB

Detection Performance

• Detection Method: Opening Contact
• Detection Gap: 76mm Max

Feature

• Digital Processing: Support
• Tamper Protection: Front; Rear
• Environment Temperature Indicator: Support
• Signal Strength Indicator: Support

Interface

• Alarm Input: Normally Closed;Normally Open;Impulse Count
• Power Switch: Power Up Enrolling
• LED Indicator: Blue (Alarm)

Transmission

• Transmission Technology: Tri-X Wireless
• Transmission Method: Two-Way RF Wireless
• Transmission Frequency: 433MHz
• Transmission Security: AES-128 Encryption
• Transmission Range (Free Space): 1Km
• Frequency Hopping: Support
• Enrolling Method: Power up; Remote ID; QR Code

Electrical Characteristics

• Standard Battery Life: Up to 5 years (standby time)
• Power Supply: Battery Powered
• Battery Type: CR123A x 1
• Typical Voltage: 3V

General

• Operation Temperature: -20 °C to 60 °C (-4 °F to 140 °F)
• Storage Temperature: -30 °C to 60 °C (-22 °F to 149 °F)
• Operation Humidity: 10% to 90%
• Dimension(WxHxD): Sensor: 40.5mm × 146mm × 40.9mm; Magnetic Stick: 30.5mm × 146mm × 40.9mm
• Weight: 247g
• Application Scenario: Outdoor, IP66
