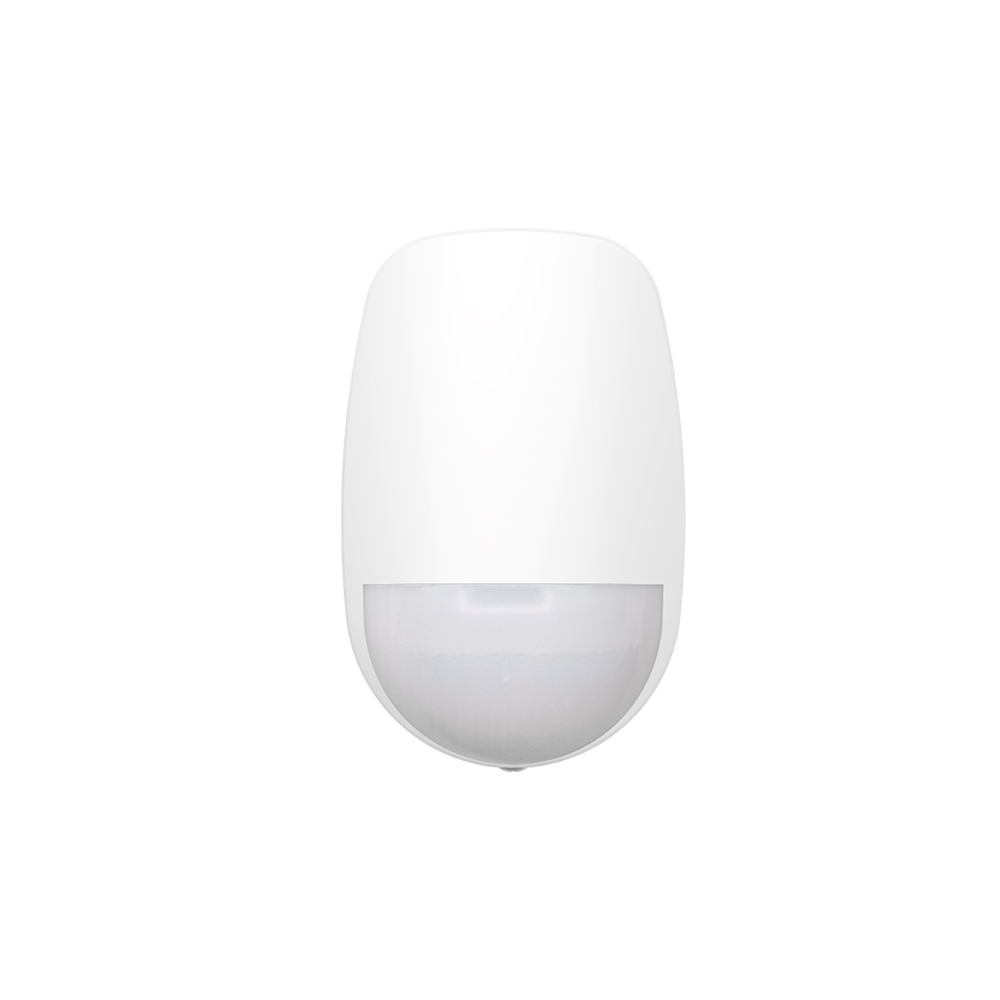

Hikvision DS-PDP15P-EG2-WB 433MHz Battery-Operated Wireless Indoor PIR - with 15m Distance Coverage with 85.9° Wide Angle - 30Kg Pet Immunity - To Work with AX Pro Hub

Intrusion & Alarms, Wireless Alarm Detectors, Wireless Alarms

Hikvision DS-PDP15P-EG2-WB

Name: Hikvision DS-PDP15P-EG2-WB
SKU: DS-PDP15P-EG2-WB

Hikvision DS-PDP15P-EG2-WB 433MHz Battery-Operated Wireless Indoor PIR – with 15m Distance Coverage with 85.9° Wide Angle – 30Kg Pet Immunity – To Work with AX Pro Hub

SKU: DS-PDP15P-EG2-WB Categories: Intrusion & Alarms, Wireless Alarm Detectors, Wireless Alarms Tags: 433MHz Wireless, AX Pro, Battery-Powered, Detector, Hikvision, Pet Immune, PIR, Wireless

Hikvision DS-PDP15P-EG2-WB 433MHz Battery-Operated Wireless Indoor PIR – with 15m Distance Coverage with 85.9° Wide Angle – 30Kg Pet Immunity – To Work with AX Pro Hub

Key Features :-

Detection Range: 15m / 85.9°
Up to 30KG pet immunity
SEC (Smart Environmental Control) – Advanced digital signal processing and 3D optics
Fully remote configurable through App
Multiple enrollment method and easy installation design
Easy replaceable battery with PCB protected
Frequency hopping against jamming for reliable transmission

Note: We highly recommend you upgrade the firmware of this device when installing and configuring it first time

Upgrade Firmware using Hik-Partner Pro app (for installers)

Upgrade Firmware using Hik-connect app (for consumers)

Hikvision Product-Link

Detection Performance

Detection Method: Passive Infrared
Detection Range: 15m
Detection Angle: 85.9°
Detection Zones: 52
Detectable Speed: 0.3～2m/s
Sensitivity: High; Auto; Pet
Pet Immunity: 30Kg
White Light Filter: 6500lux
Digital Temperature Compensation: Support
Creep Zone Protection: Support

Feature

Digital Processing: Support
Sealed Optics: Support
Tamper Protection: Front; Rear
Environment Temperature Indicator: Support
Signal Strength Indicator: Support

Interface

Power Switch: Power Up Enrolling
LED Indicator: Blue(Alarm)

Transmission

Transmission Technology: Tri-X Wireless
Transmission Method: Two-Way RF Wireless
Transmission Frequency: 433MHz
Transmission Security: AES-128 Encryption
Transmission Range (Free Space): 1.2Km
Frequency Hopping: Support
Enrolling Method: Power up; Remote ID; QR Code

Electrical Characteristics

Standard Battery Life: 5 years in work status (being triggered 20 times per day)
Power Supply: Battery Powered
Battery Type: CR123A × 1
Typical Voltage: 3V
